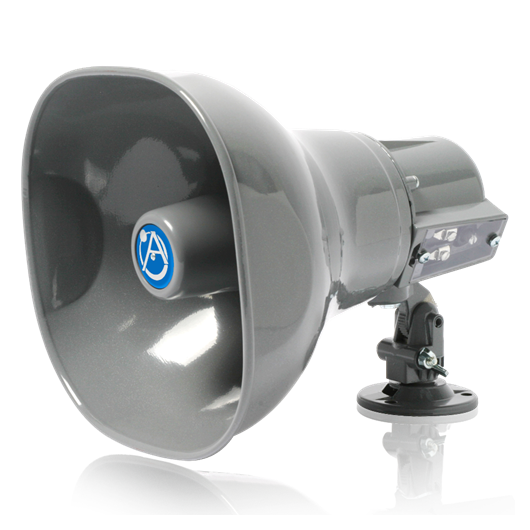

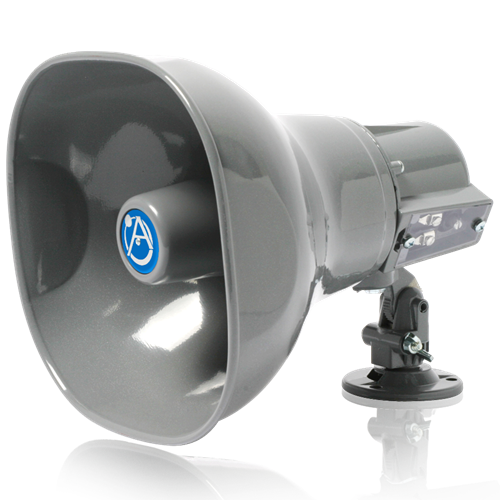

AP-15T Horn Speaker with 15-Watt 25V/70V/100V Transformer
Please sign in so that we can notify you about a reply
Model AP-15T is a double re-entrant speakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.
AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Features
- Grey Finish
- Environment Resistant for Outdoor and Indoor Use
- High-Efficiency Driver with Proven Performance Reliability
- Omni-Purpose™ Bracket for Precise Positioning
- Superior Intelligibility for Voice and Tone Signaling
- Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
- World Recognized for Quality and Dependability
Brand:
Atlas IED
Product Type:
Horn Loudspeaker
Specifications
Coverage Angle:
70° (Horizontal/Vertical)
Number of Included Speakers:
1
Indoor/Outdoor:
Indoor, Outdoor
Speaker Configuration:
Three Way
Mounting Type:
Surface Mount, Strap
Colour:
Grey
Series:
AP-15
Power Rating:
15W (Continuous)
Applications:
Commercial Building, Distribution Center, Factories, School, Public Access Area, Civic Center, Recreational Facilities
Finish:
Baked Epoxy
Enclosure Material:
Metal, ABS Plastic
Performance
Frequency Rating:
400 to 14000Hz (Nominal), 500 to 6000Hz@±5dB
Dimensions
Width:
15.5cm
Depth:
22cm
Height:
18.4cm
Weight:
1.8kg
Shipping Weight:
2.2kg
Other
Voltage Rating:
70.7V, 100V
