AH99-8T-BSG 8" 2-Way Stadium Horn Speaker System 90° Hx 90° V
Please sign in so that we can notify you about a reply
AtlasIED model AH99-8T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.
Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

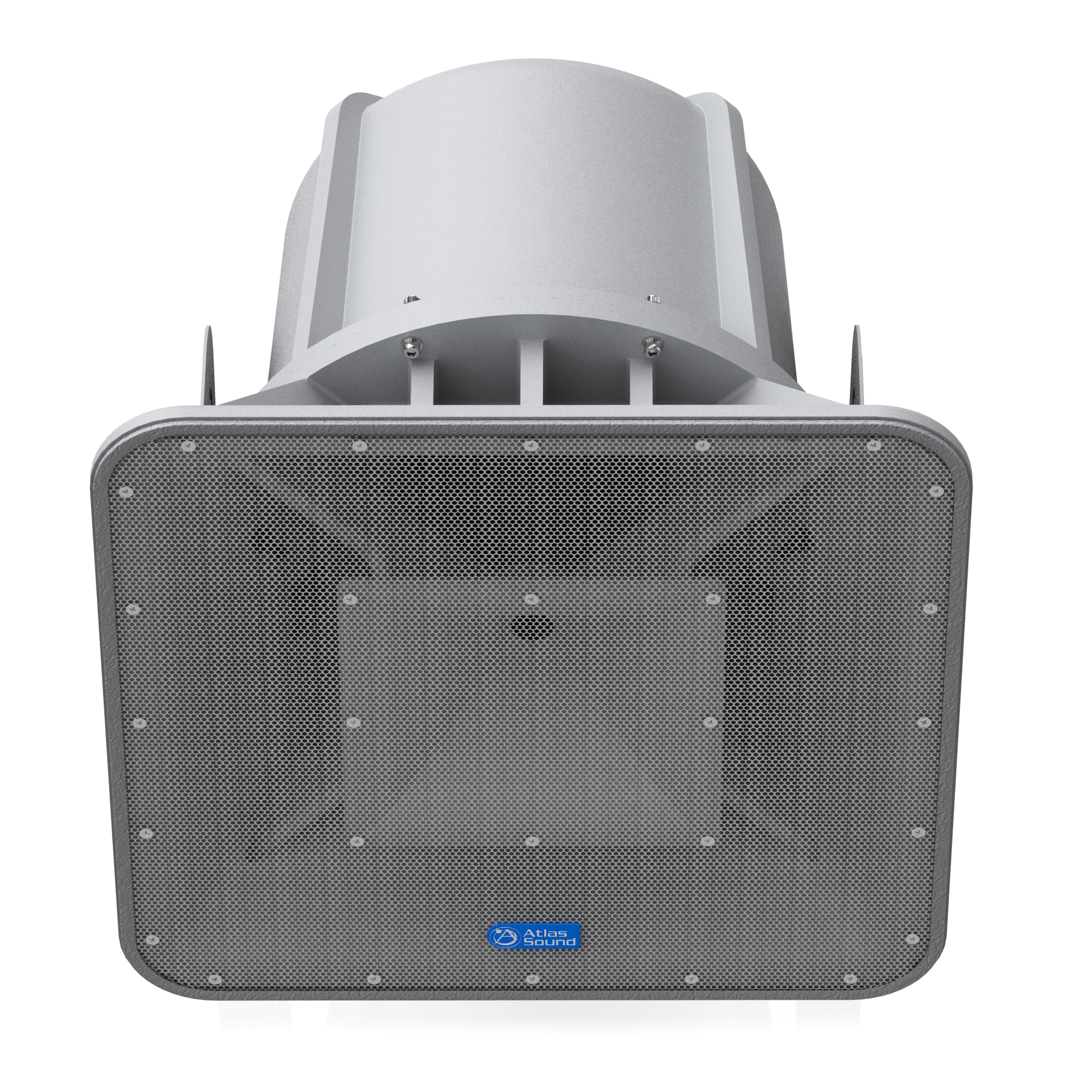

Weather resistant construction features of the AH99-8T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 8" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Features
- 100 Watts Power Handling
- Constant Directivity Design Offers Controlled Coverage of 90º Horizontal by 90 º Vertical (2kHz Octave Band)
- Driver Compliment Includes 8" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 90°H x 90°V HF Horn
- Efficiency Rating of 101dB (1W/1m)

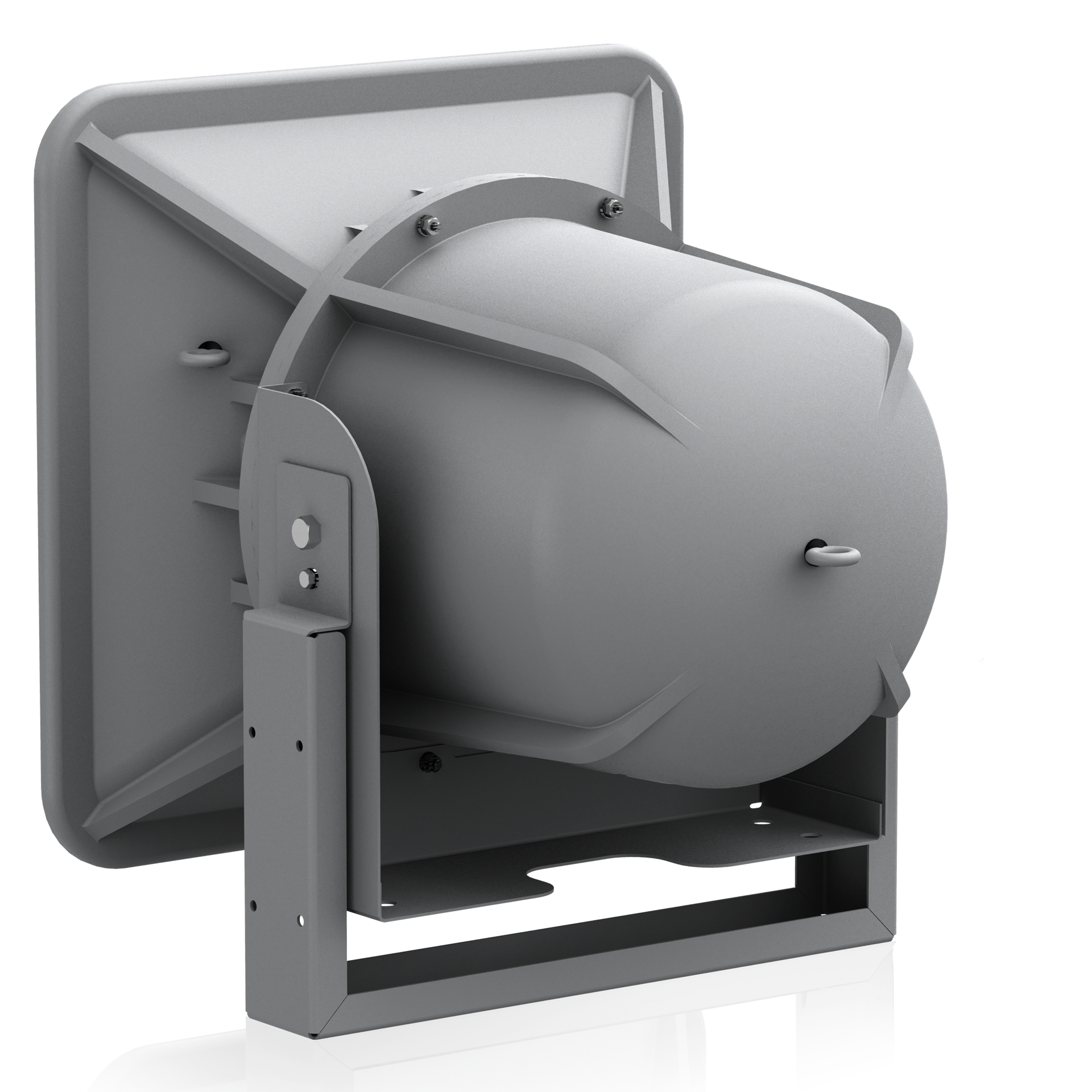

- Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
- Maximum Output of 121dB (Rated Power @ 1M)
- Battleship Gray Finish
Brand:
Atlas IED
Product Type:
Stadium Horn System
Specifications
Coverage Angle:
90° (Horizontal/Vertical)
Driver Size:
8in
Speaker Configuration:
Two Way
Mounting Type:
Surface Mount
Colour:
Grey
Power Rating:
100W
Applications:
Football Stadium, Sports Arena, Baseball Field, Convention Center, Auditorium
Enclosure Material:
Fibreglass
Enclosure Type:
UV-Resistant
Included Accessories:
Heavy Duty Mounting Bracket
Performance
Impedance Rating:
8Ω
Frequency Rating:
90Hz to 15kHz
Crossover Frequency:
1.8kHz
Inputs and Ports
I/O Interface Type:
7-Pole Terminal Block
Dimensions
Width:
49.9cm
Depth:
50.1cm
Height:
55.5cm
Weight:
24.5kg
Shipping Weight:
24.5kg
