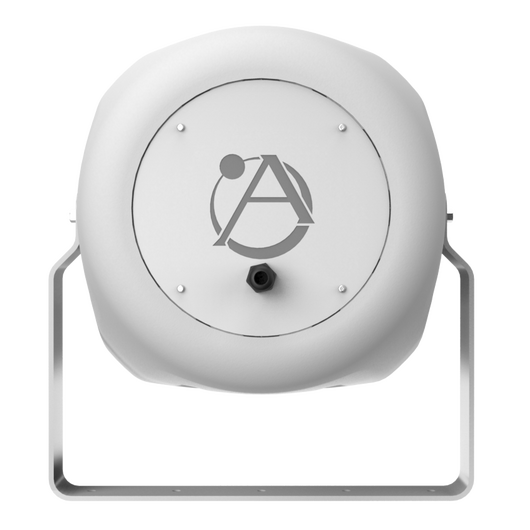

FS12TEN-66 12in 2-Way Multipurpose Horn Speaker System, 80Hz to 17.6kHz, 60x60°, Light Grey, EN54-24
Please sign in so that we can notify you about a reply
The EN54-24 certified FS12TEN-66 is two-way, full-range loudspeaker system engineered to provide excellent voice and music reproduction in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability. It incorporates a 12" LF driver and 1" exit HF compression driver concentrically mounted to a high-directivity waveguide. It provides 60° x 60° coverage and is tuned for optimal source reproduction. The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V / 100V transformer with low insertion loss and full frequency response with power taps up to 400-watts including an 4Ω bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey" that is UV resistant and allows for years of durability
Features- All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons
- 400 Watts Power Handling
- Constant Directivity Design Offers Controlled Coverage of 60º Horizontal by 60 º Vertical (2kHz Octave Band)
- Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver
- Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
- Includes a Built-In, High Efficiency 400 Watt 70.7V Transformer
- Four Eyebolt Inserts for Multiple Mounting Capabilities
- Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
- Easy Service Design Allows Transducers to be Serviced in the Field without Uninstalling the Enclosure from the Mount
- EN54-24 Certified
- ISO 7240-24 Certified
Brand:
Atlas IED
Product Type:
Horn Speaker
Specifications
Input Impedance:
4Ω
SPL:
128.5dB
Mounting Type:
U-Bracket Mount
Colour:
Light Grey
IP Rating:
IP45, IP33C
Applications:
Arenas, Stadiums, Fairgrounds, Racetracks, Theme Parks, Outdoor Entertainment Centers, Convention Centers, Aquatic Centers, Multipurpose Venues, Indoor
Enclosure Material:
LLDPE
Performance
Horizontal Coverage:
60°
Maximum Output:
128.5dB
Sensitivity:
102.5dB
Vertical Coverage:
60°
Frequency Rating:
80Hz to 17.6kHz
Crossover Frequency:
1.1kHz
Crossover Type:
2-Way
Operation Mode:
Non-Powered Passive
Power
Input Power Rating:
400W (Continuous), 800W (Program)
Dimensions
Shipping Weight:
39.4cm
Width:
47cm
Depth:
47cm
Height:
49.8cm
Weight:
21.7kg
Other
Grille Material:
Aluminium
Standards Met:
MIL-DTL-12606,EN54-24, ISO 7240-24
Warranty:
5yrs
