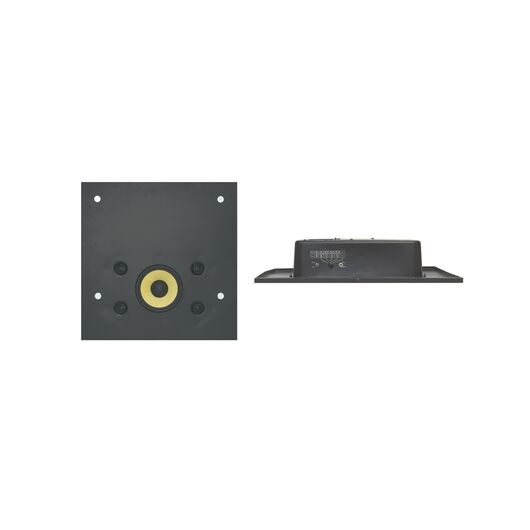

YARDEN 8-T 8-Inch, High-Performance, Ceiling Tile Stereo Speaker
Please sign in so that we can notify you about a reply
The Yarden 8−T High−Performance Ceiling Tile Stereo Speaker Features a Kevlar(R) Woofer, Four Pivoting Titanium Tweeters, Complete K−Overage ESD™ (Equal Sound Dispersion) Design for Almost 180 Degrees of Sound Dispersion. It Features Speech Mode to Improve Intelligibility, Music Mode for an Extra Wide Frequency Response and Stereo and Mono Modes to Fit any Kind of Installation. It also Features a Magnetically Held Grill (with two security screws) for Time Saving Installation, 2nd Level Cross−over Design and Multi−Tap Power Transformer for Selecting 8Ω (bypassing the transformer) or 70V/100V Power Settings that are Suitable for an Array Installation.
Features
- Type — 2–way ceiling tile speaker.
- Woofer — 8” Kevlar(R) cone.
- Tweeters — Four pivoting 0.75” titanium domes.
- Impedance — Stereo 8Ω, mono 4Ω.
- Stereo/Mono Selector Switch.
- Speech/Music Selector Switch.
- Power Handling — 2 x 40W RMS, 2 x 110W continuous program.
- Transformer Taps — Stereo: 70V: 2 x 30W/15W/7.5W/3.7W, 100V: 2 x 30W/15W/7.5W; Mono: 70V: 60W/30W/15W/7.5W, 100V: 60W/30W/15W.
- UL Certification — UL 1480 & 2043 listed and plenum compliant.
- Package — 1 speaker.
Brand:
Kramer
Part number:
60-000030
Product Type:
Ceiling Tile Stereo Speaker
Specifications
Number of Included Speakers:
1
Speaker Configuration:
Two Way
Mounting Type:
Ceiling Mount
Sound Level:
102dB (Continuous), 105dB (Peak)
Power Rating:
40W (RMS), 110W (Continuous Program)
Applications:
Conference Rooms, Boardrooms, Classroom, Hotels, Restaurants
Enclosure Type:
Shallow Enclosure
Material:
Steel (Grill)
Performance
Frequency Rating:
65Hz to 20kHz@-10dB, 80Hz to 20kHz@±3dB
Inputs and Ports
Input Connector Type:
Terminal Block
Dimensions
Width:
6cm
Depth:
60cm
Height:
10cm
Weight:
8.8kg
Other
Voltage Rating:
70, 100V
Standards Met:
UL Listed, CE, ISO 9001:2008
No reviews found
