UKT70-2C-U51-8 8" Dual Voice Coil In-Ceiling Speaker for Fire Signaling with 5-W 70V Transformer & U51-8 Baffle
Please sign in so that we can notify you about a reply

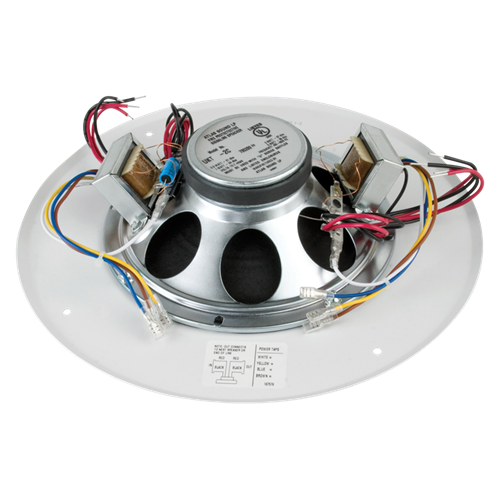

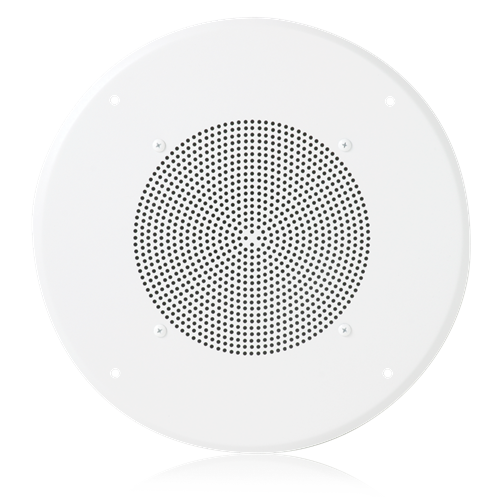

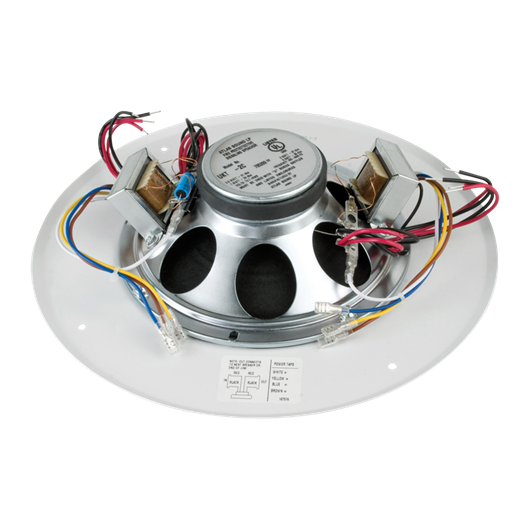

AtlasIED's UKT70-2C-U51-8 are 8" diameter dual voice coil speakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" colour-coded leads, DC blocking capacitor and a 51-8 baffle. To comply with UL requirements, speaker packages must be used with UL-approved enclosures.
Features- Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
- Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
- Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
- Selection of UL Approved, Companion Enclosures is Offered
- UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
- Dual 1" Voice Coils
Brand:
Atlas IED
Product Type:
Dual Voice Coil In-Ceiling Speaker
Specifications
Diameter:
2.5cm (Voice Coil)
Number of Included Speakers:
1
Mounting Type:
Ceiling Mount
Colour:
White
Series:
UKT
Power Rating:
10W (RMS)
Applications:
High-Rise Residence, Public Building, Health Care, Educational Facility, Office, Bank, Shopping Area, Motel/Hotel, Distribution Center, Transportation Terminal
Performance
Frequency Rating:
60Hz to 8kHz
Dimensions
Depth:
7.3cm
Weight:
260g (Magnet)
Other
Voltage Rating:
70V, 100V
Standards Met:
UL Approved
