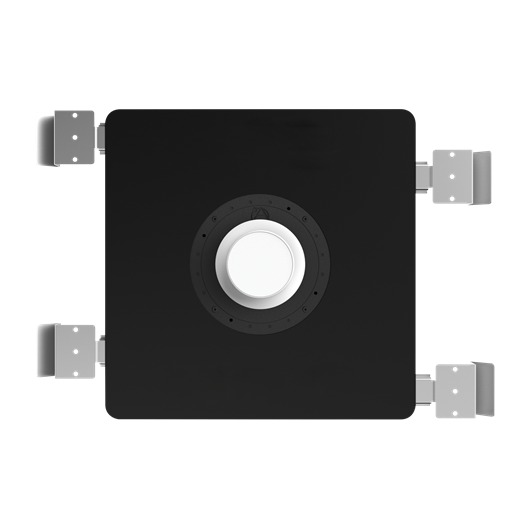

SHS-6T2-L Strategically Hidden Loudspeaker with Adaptive Dispersion Lens Technology - with Label
Please sign in so that we can notify you about a reply
The SHS-6T2 is an industry-first strategically hidden ceiling speaker. It is designed to blend into the aesthetic of any ceiling while retaining optimal sound performance. The perfect speaker for architecturally impressive environments where you want your high-definition audio heard, not seen. SHS is easy to install and particularly useful for background music, paging/ notification and sound masking. It comes packaged with three different adaptive dispersion lenses for a variety of applications and installation locations. Exotically different, perfectly disguised, The SHS Series incorporates a radically different (and patented) waveguide design than any other ceiling speaker. Inside its concealed enclosure is a 2-way driver that provides high-definition sound. As the sound exits the two-way transducers, both pass through a patented adaptive diffuser lens for smooth and uniform frequency response throughout its intended ultra-wide coverage. Through years of research and design its acoustic frequencies are radiated evenly, diffusing away bothersome “hot spots” common to standard speakers making it a great solution for paging and background music as well as applications including sound masking.
Features
- Subtle Form & Design Blends Into Any Ceiling
- Easy & Quick Installation
- Patented Waveguide with User Selectable Adaptive Dispersion Lenses
- Self Contained Unit Includes Loudspeaker, Enclosure, and Adjustable Tile Rails
- Sealed Enclosure Provides Optimal Bass Response
- Optional Color Match Process Via DesignLab™ by AtlasIED
Brand:
Atlas IED
Product Type:
Strategically Hidden Speaker
Specifications
Diameter:
6.9cm (Cutout/Hole)
Number of Included Speakers:
1
Speaker Configuration:
Two Way
Sound Level:
103dB
Colour:
Grey
Power Rating:
75W (Continuous)
Applications:
Paging, Background Music, Sound Masking
Enclosure Type:
Deep Drawn
Material:
Steel (Enclosure), Low Smoke ABS (Baffle), Steel Tile Bridge Arm (Mount)
Performance
Frequency Rating:
80Hz to 12kHz (Operation), 100Hz to 15kHz (Response)
Amplifier Power Rating:
120W@8Ω
Inputs and Ports
I/O Interface Type:
4-Pole Euro Block
Input Connector Type:
4-Pole Euro Block
Dimensions
Width:
32.3cm
Depth:
10cm
Height:
32.3cm
Weight:
5.8kg
Shipping Weight:
4.6kg
Other
Voltage Rating:
70V, 100V
Standards Met:
UL1480A, UL2043, CSA C22.2 No. 205-17
