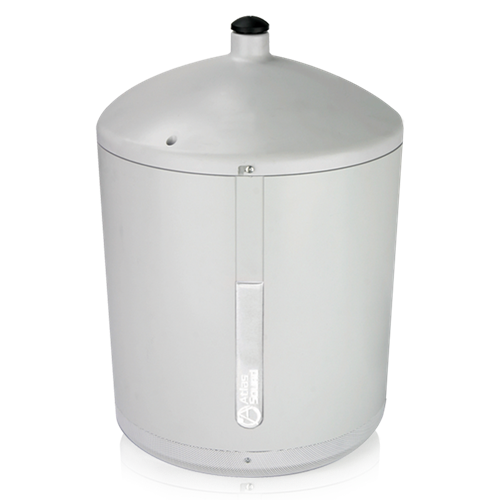

PM8SUB-WH 8" Pendent Mount Subwoofer with 60-Watt 70.7V Transformer - White

PM8SUB-WH
Out of stock

The AtlasIED PM8SUB-WH matches the sonic quality of the high performance 8” Strategy II Series FAP8SUB driver. This speaker is the same device used in AtlasIED’s successful model FAP8SUB in-ceiling subwoofer package. Mounted down-firing in an attractive enclosure, the PM8SUB provides natural sounding, wide coverage for low height installations while delivering excellent low frequency response for both music applications.Attaching a PM8SUB to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTECTM brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).

Features
  • Integrated 70.7V Transformer with Power Taps at 7.5, 15, 30, & 60 Watts with 8Ω Bypass
  • 3 Meters of 2mm Cable & Mounting Hardware Included
  • Compatible with Standard 3/4" Ceiling Fan Hardware
  • Ideal Low Frequency Driver for High Ceiling Applications
Brand:
Atlas IED
Specifications
Product Type:
Pendant Mount Loudspeaker
Diameter:
31.1cm
Number of Included Speakers:
1
Mounting Type:
In-Ceiling Mount
Colour:
White
Series:
PM
Power Rating:
150W@8Ω (RMS)
Applications:
Music
Performance
Frequency Rating:
46 to 160Hz
Dimensions
Height:
42.2cm
Shipping Weight:
9.5kg
Other
Voltage Rating:
70V, 100V

PM8SUB-WH 1 (ATS004369A-PM-Series-Install-Sheet.pdf, 921 Kb) [Download]

PM8SUB-WH 2 (ATS002583B-Installation-Sheet.pdf, 1,503 Kb) [Download]
