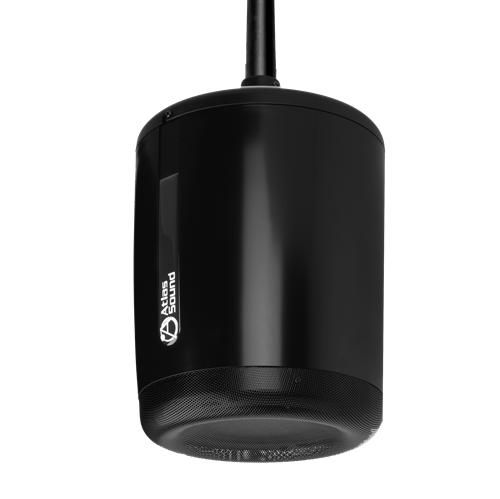

PM8GD-B 8" 2-way High Efficiency Pendent Speaker with 8-Watt 70V Transformer - Black

Write a review
PM8GD-B
Atlas IED
Log in to see price Add to wish list Add to Project

Model PM8GD-B uses the popular AtlasIED GD series coaxial driver to provide familiar response and high efficiency while retaining economy when high density speaker counts are required in page only applications.

Features
  • 70.7V Taps @ 1, 2, 4, 8 Watts and 8Ω Direct Input via Concealed Terminal Block
  • 8" GD87 Driver Provides 120 Degree (60 Degree Off-Axis) Coverage in the 2kHz Octave Band
  • 3 Meters of 2mm Cable & Mounting Hardware Included
  • Compatible with Standard 3/4" Ceiling Fan Hardware
  • Extreme High Efficiency (96dB 1W/1m) Allows for Lower Tap Settings and More Loudspeakers per Amp Channel in Many Installations
Brand:
Atlas IED
Product Type:
Pendant Mount Speaker
Specifications
Coverage Angle:
120°, 60° (Off-Axis)
Diameter:
31.1cm
Number of Included Speakers:
1
Speaker Configuration:
Two Way
Mounting Type:
Ceiling Mount
Colour:
Black
Series:
GD
Power Rating:
15W@8Ω
Applications:
Page Only
Enclosure Type:
Ported Bass Reflex
Performance
Frequency Rating:
55Hz to 15kHz
Amplifier Power Rating:
307W
Dimensions
Height:
42.2cm
Weight:
7.7kg
Other
Voltage Rating:
70V, 100V

PM8GD-B 1 (ATS002842A-PM8GD-Datasheet.pdf, 819 Kb) [Download]

PM8GD-B 2 (ATS004369A-PM-Series-Install-Sheet.pdf, 921 Kb) [Download]
