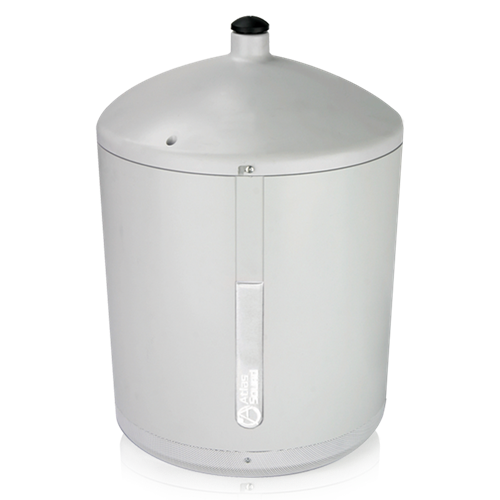

PM8CX-WH 8" 2-way High Output Pendent Speaker with 60-Watt 70V Transformer - White

Write a review
PM8CX-WH
Atlas IED
Log in to see price Add to wish list Add to Project

Model PM8CX-WH includes the AtlasIED 8CXT60 compression driver coaxial speaker which provides excellent efficiency exceeding 92dB 1W/1m. The 8CXT60 also offers a desirable tighter 90 degree conical coverage pattern in the 2kHz octave band for great coverage performance in ultra high mounting locations up to 30'.

Features

  • 70.7V Taps @ 7.5, 15, 30 & 60 Watts Plus 8-ohm
  • Direct Input via Concealed Terminal Block
  • 8" 8CXT60 Driver Provides 90 Degree (45 Degree Off-Axis) Coverage in the 2kHz Octave Band
  • 3 Meters of 2mm Cable & Mounting Hardware Included
  • Compatible with Standard 3/4" Ceiling Fan Hardware
  • The Best Solution for High Ceiling Applications
Brand:
Atlas IED
Product Type:
Pendant Mount Speaker
Specifications
Coverage Angle:
90° (Conical)
Diameter:
31.1cm
Number of Included Speakers:
1
Speaker Configuration:
Two Way
Mounting Type:
Ceiling Mount
Colour:
White
Series:
PM
Power Rating:
150W@8Ω
Enclosure Type:
Pedant Style
Performance
Frequency Rating:
55Hz to 15kHz
Amplifier Power Rating:
648W
Dimensions
Height:
42.2cm
Weight:
9kg
Other
Voltage Rating:
70V, 100V

PM8CX-WH 1 (ATS002844A-PM8CX-Datasheet.pdf, 1,362 Kb) [Download]

PM8CX-WH 2 (ATS004369A-PM-Series-Install-Sheet.pdf, 921 Kb) [Download]
