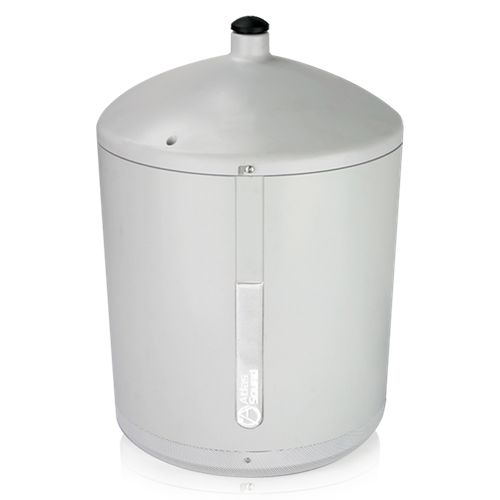

PM4FA-WH 4" 2-way Pendent Mount Speaker with 16-Watt 70.7V Transformer - White
Please sign in so that we can notify you about a reply
The Atlas Sound PM4FA features the familiar response and dispersion of Atlas Sound’s model FA134 high performance 4” Strategy Series driver. This speaker is the same FA Series device used in Atlas Sound’s successful model FAP42T ceiling speaker package. Mounted down-firing in an attractive enclosure, the PM4FA provides impressive full range frequency response for both music and paging applications. Attaching a PM4FA to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTECTM brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).
Features- 4" FA134 Driver Provides 130º Degree (65 Degree Off-Axis) Coverage in the 2kHz Octave Band
- 70.7V Taps @ 1, 2, 4, 8 and 16 Watts Plus 8-ohm Direct Input Via Concealed Terminal Block
- 3 Meters of 2mm Cable & Mounting Hardware Included
- Compatible with Standard 3/4" Ceiling Fan Hardware
- Discreet, Attractive Enclosure
Brand:
Atlas IED
Product Type:
Pendent Mount Speaker
Specifications
Coverage Angle:
130°
Diameter:
23.5cm
Number of Included Speakers:
1
Speaker Configuration:
Two Way
Mounting Type:
Ceiling Mount
Colour:
White
Series:
FA
Power Rating:
25W@8Ω
Applications:
Music and Paging
Enclosure Type:
Pedant Style
Performance
Frequency Rating:
70Hz to 20kHz
Inputs and Ports
I/O Interface Type:
Concealed Terminal Block
Input Connector Type:
Concealed Terminal Block
Dimensions
Height:
35.2cm
Weight:
5.8kg
Other
Voltage Rating:
70V
