FC104 10-Watt 8O 4" In-Ceiling Speaker - Call for Availability
Please sign in so that we can notify you about a reply

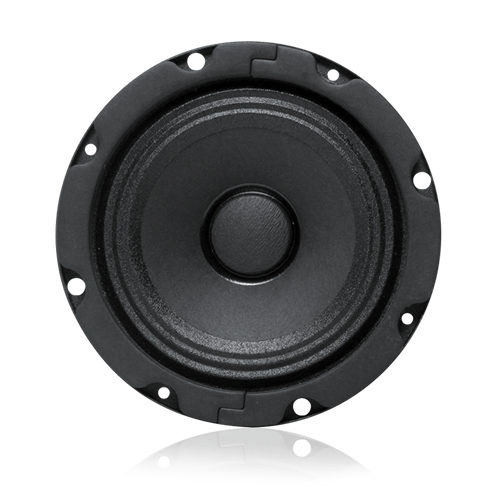

This compact, full-range, 4" (127mm) speaker is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response. Model FC104 also offers a wide dispersion angle which reduces the number of speakers necessary to achieve total coverage in low-level distribution systems. The 10-watt, 8-ohm model (without transformer) offers a frequency response range of 150Hz - 17kHz, sensitivity of 94dB (at 1 watt, 1 meter) and a dispersion angle of 135° (-6dB, 2 kHz octave band). The unit contains a 10 oz. (283g) ceramic magnet with a flux density of 10,500 gauss.
Features- Available in 8Ω, 25V, 70.7V, 70.7/25V Versions
- Efficient Wide-Range Frequency Response
- Ideal for Public Address and Background Music Installations
- Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
- Mounts a Large Selection of Atlas Sound 4" Grilles
- Offers Proven Performance with Wide-Angle Sound Dispersion
Brand:
Atlas IED
Product Type:
High Compliance Loudspeaker
Specifications
Coverage Angle:
135°
Diameter:
10.1cm
Number of Included Speakers:
1
Mounting Type:
In-Ceiling Mount
Sound Level:
94dB (Peak)
Colour:
Black
Series:
FC104
Power Rating:
10W
Applications:
Public Address, Background Music Installation
Performance
Frequency Rating:
150Hz to 17kHz
Dimensions
Depth:
5.7cm
Weight:
238g (Magnet, Ceramic)
Shipping Weight:
0.9kg
Other
Voltage Rating:
25V
