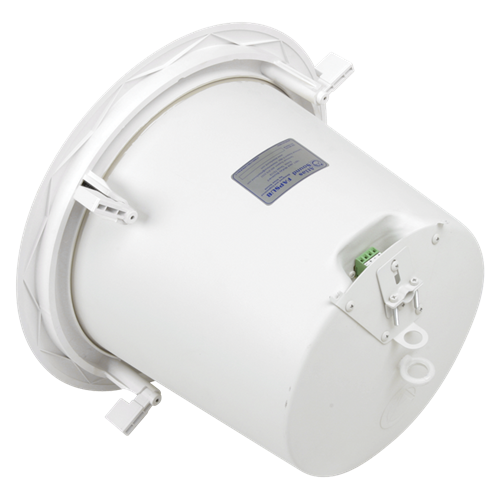

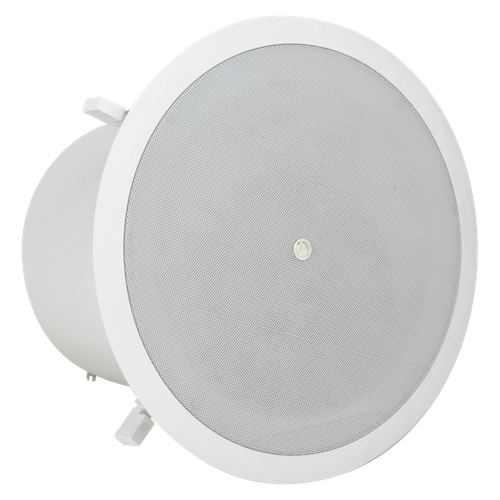

FAPSUB-1 8" Tuned Ported In-Ceiling Subwoofer with 60-Watt 70V/100V Transformer
Please sign in so that we can notify you about a reply
The FAPSUB-1 adds impressive low frequency response to any full range distributed system. The FAPSUB-1 consists of a highly efficient 8", 8 ohm subwoofer designed and built by AtlasIED to work optimality in the FAPSUB-1 enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer and provides bass response down to 45Hz (±10dB).A special low saturation 70.7V/100V transformer is included with 1.9, 3.8, 7.5, 15, 30 and 60 watt primary taps (@70.7V) to match and balance the subwoofer with full range speakers without the need for separate amplification. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This tap selector switch also includes a transformer bypass setting for 8 ohm direct coupled applications.
Features- Attractive Grille and Bezel Matches Aesthetics of Other Atlas Sound FAP Series
- Detachable, Phoenix Style, Locking, Four-Pole Connector Provides for Easy Daisy Chain Wiring
- Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
- High-Efficiency, Passive Crossover Network Eliminates the Need for Dedicated Amplifier and/or Active Crossover
- Low Crossover Point Greatly Reduces Localization (Ability of Listener to Identify the Subwoofer Location)
- Uniquely Designed, "Easy Access" Input Panel Design Allows for "Thru" Conduit Runs Using Flexible or Rigid Conduit
Brand:
Atlas IED
Product Type:
Tuned Ported In-Ceiling Subwoofer
Specifications
Diameter:
32.4cm
Number of Included Speakers:
1
Mounting Type:
In-Ceiling Mount
Colour:
White
Series:
Strategy II
Power Rating:
100W (RMS)
Applications:
Music
Enclosure Type:
Ported Bass Reflex
Material:
Galvanized Metal (Enclosure)
Performance
Frequency Rating:
45Hz to 120Hz@±10dB, 55Hz to 100Hz@±6dB
Inputs and Ports
I/O Interface Type:
4-Pole Detachable Phoenix/Euro Style Connector
Input Connector Type:
4-Pole Detachable Phoenix/Euro Style Connector
Dimensions
Height:
32.4cm
Weight:
580g (Woofer Magnet)
Other
Voltage Rating:
70V, 100V
Standards Met:
UL 1480
