FAP42TEN 4in Ceiling Speaker, FAP Strategy III Series, 25W, 72Hz to 20kHz
Please sign in so that we can notify you about a reply

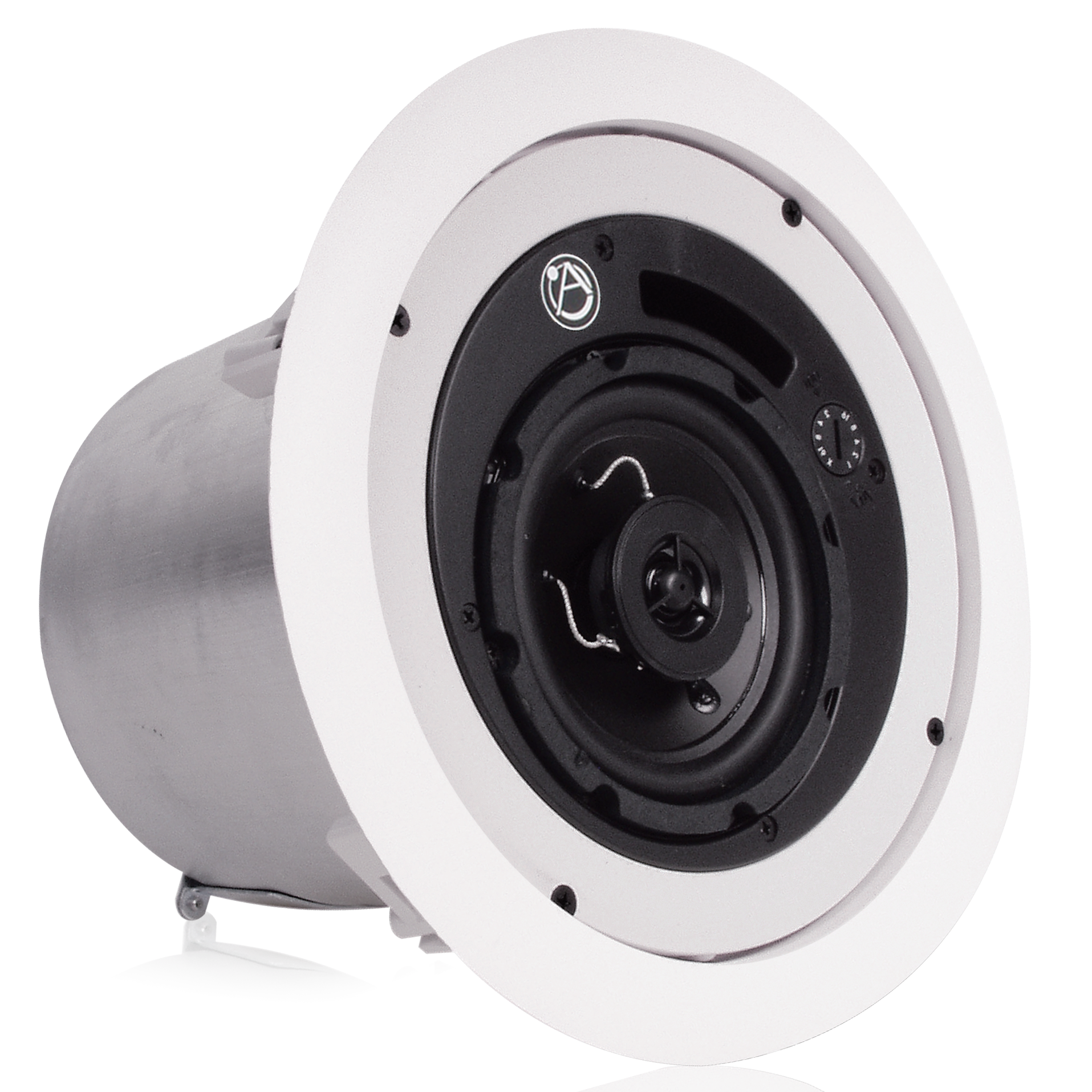

The EN54-24 certified FAP42TEN's 130° dispersion angle effectively reduces the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings. The loudspeaker component matches the performance of the legendary AtlasIED Strategy FA Series. High quality construction 4" coaxial cone type driver includes a 1" voice coil and polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. A high sensitivity level means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled in an optimally tuned & ported deep drawn enclosure and includes a specially designed 16 Watt low saturation 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω direct coupled operation
Features- 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
- Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
- Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
- Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
- Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required

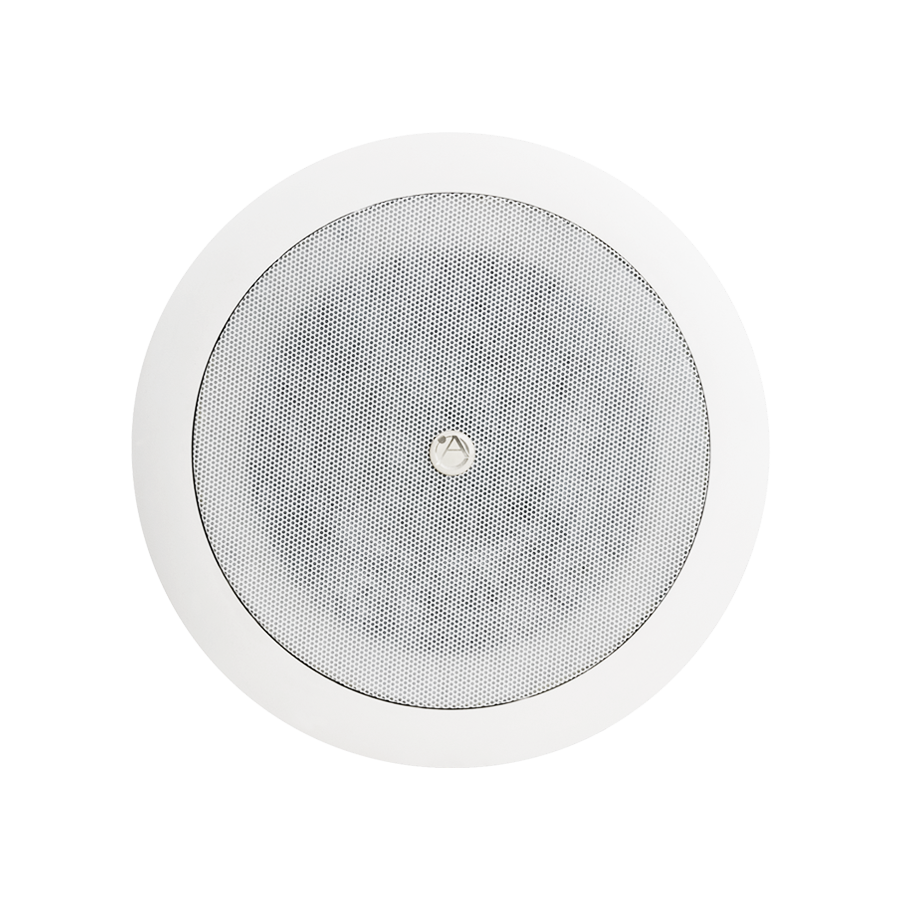

- Press-Fit Grille Blends Perfectly into Contemporary Architecture
- EN54-24 Certified
- ISO 7240-24 Certified
- Ingress Protection (EN54-24): IP21C
Brand:
Atlas IED
Product Type:
Ceiling Speaker
Specifications
Sound Level:
88dB
Coverage Angle:
130x130°
Diameter:
26.7cm
Number of Included Speakers:
1
Speaker Configuration:
Coaxial
Mounting Type:
Shallow Mount
Colour:
White
Series:
Strategy II
Power Rating:
25W
Applications:
Commercial, Industrial, Institutional Applications
Enclosure Type:
Deep Drawn
Material:
Poly Cone (Woofer)
Performance
Frequency Rating:
72Hz to 20kHz
Dimensions
Shipping Weight:
5.7cm
Depth:
22.5cm
Height:
22.5cm
Other
Standards Met:
EN54-24, ISO 7240-24, CE
