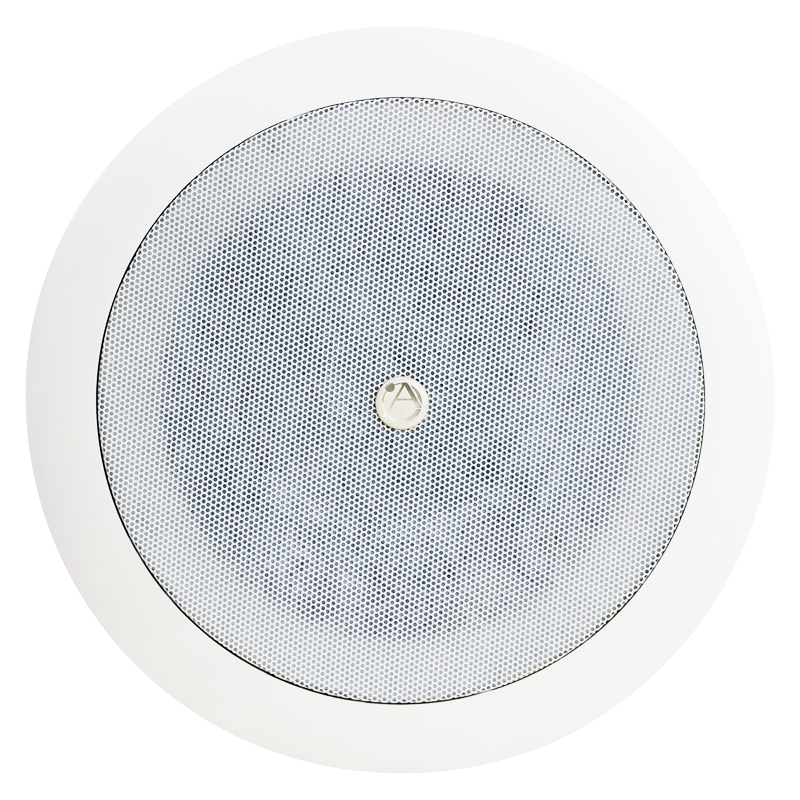

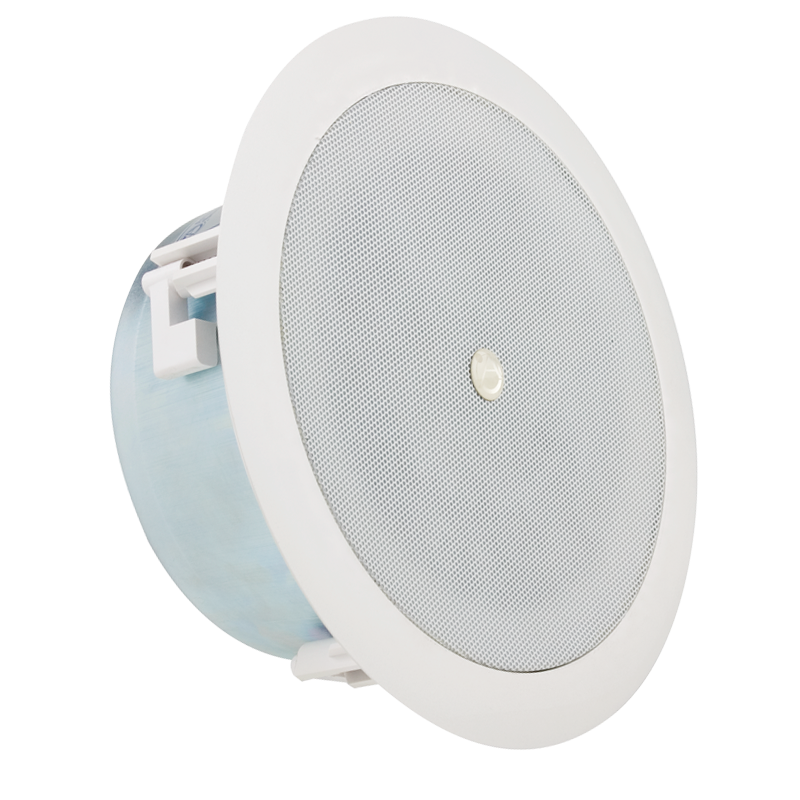

FAP42TCEN 4in Ceiling Speaker, FAP Strategy III Series, 25W, 75Hz to 20kHz

Write a review
FAP42TCEN
Atlas IED
Log in to see price Add to wish list Add to Project

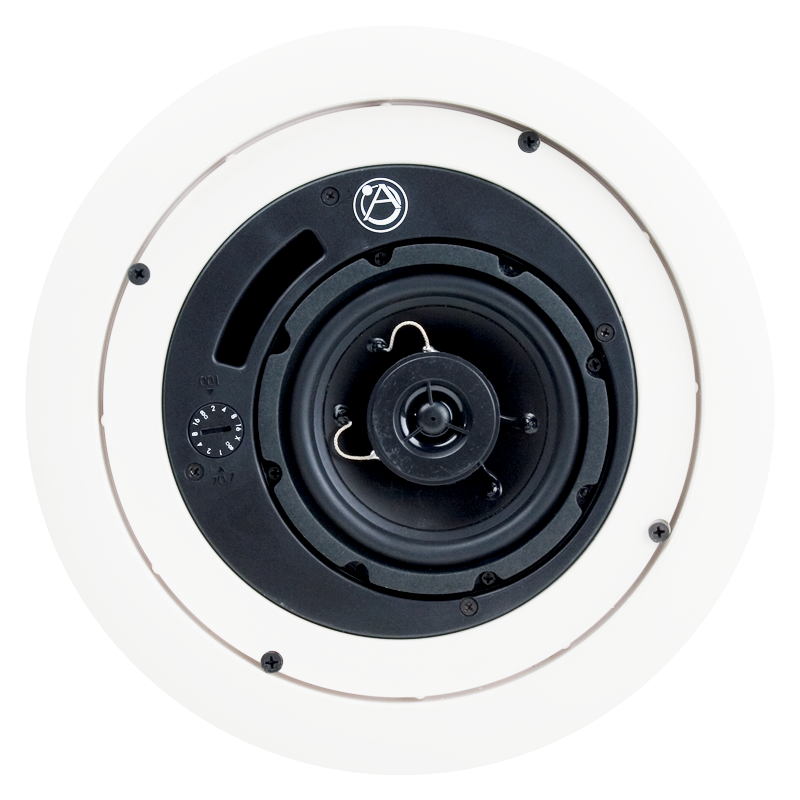

The EN54-24 certified FAP42TCEN's 130° dispersion angle effectively reduces the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings. The loudspeaker component matches the performance of the legendary AtlasIED Strategy FA Series. High quality construction 4" coaxial cone type driver includes a 1" voice coil and polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. This loudspeaker is factory assembled in a deep drawn enclosure and includes a specially designed 16 watt low saturation, 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω operation

Features
  • Press Fit" Grilles Blend Better into Contemporary Architecture
  • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
  • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
  • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
  • Low Depth (4") Speaker System for Limited Space Applications
  • EN54-24 Certified
  • ISO 7240-24 Certified
  • Ingress Protection (EN54-24): IP21C
Brand:
Atlas IED
Product Type:
Ceiling Speaker
Specifications
Sound Level:
88dB
Coverage Angle:
130x130°
Diameter:
26.7cm
Number of Included Speakers:
1
Speaker Configuration:
Coaxial
Mounting Type:
Shallow Mount
Colour:
White
Series:
Strategy II
Power Rating:
25W
Applications:
Commercial, Industrial, Institutional Applications
Enclosure Type:
Deep Drawn
Material:
Poly Cone (Woofer)
Performance
Frequency Rating:
75Hz to 20kHz
Dimensions
Shipping Weight:
5.7cm
Depth:
11cm
Height:
10.8cm
Other
Standards Met:
EN54-24, ISO 7240-24, CE

FAP42TCEN 1 (ATS007058-FAP42TCEN-Datasheet.pdf, 811 Kb) [Download]
