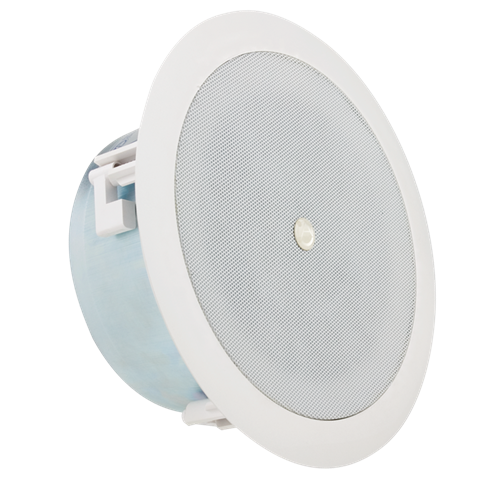

FAP42TC 4" Shallow Mount Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer

Write a review
FAP42TC
Atlas IED
Log in to see price Add to wish list Add to Project

With an overall depth of 4" (102mm) the FAP42TC is the perfect choice when high fidelity audio and wide, even coverage is required but space above the plenum is limited. For wall mount applications (tanning salons or surround sound) the short 4" depth will even work in most stud wall installations. A simplified input section features a 4-pole Phoenix style connector for easy daisy chaining between speakers. A simple cover including combination 1/2" (13mm) / 3/4" (19mm) knock-outs is provided for installation ease. The popular AtlasIED "C-ring / V-Rail" mounting system is provided for quick installation into drop tile acoustic ceilings and existing construction drywall. For new construction drywall applications the optional FAP42-TR may be used. All other popular features of the FAP42T are included on the new FAP42TC including the front mounted tap selector switch (with included transformer bypass for 8 Ohm applications), attractive press-fit grills, high performance 4" polypropylene cone driver with 3/4" (19mm) PEI tweeter and precision crossover components for smooth, even coverage.

Features
  • "Press-Fit" Grilles Blend Better into Contemporary Architecture
  • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
  • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications

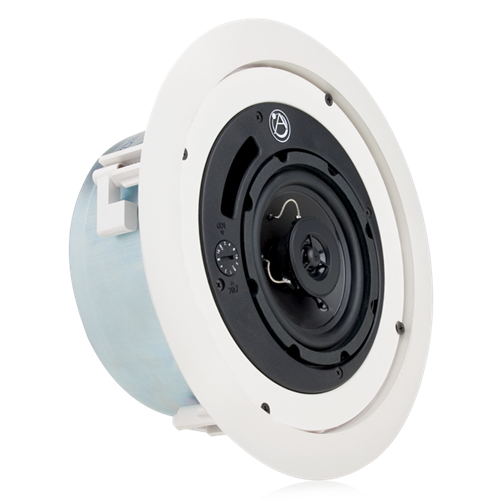

  • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
  • Low Depth (4") Speaker System for Limited Space Applications
  • UL 1480
Brand:
Atlas IED
Product Type:
Coaxial Speaker
Specifications
Coverage Angle:
130°
Diameter:
16.7cm
Number of Included Speakers:
2
Speaker Configuration:
Two Way
Mounting Type:
In-Ceiling Mount
Colour:
White
Series:
Strategy II
Power Rating:
25W@8Ω
Applications:
Commercial, Industrial, Institutional
Enclosure Type:
Deep Drawn
Material:
Steel (Enclosure)
Performance
Frequency Rating:
83Hz to 20kHz
Dimensions
Height:
10.8cm
Weight:
364g (Woofer Magnet)
Other
Standards Met:
UL 1480 Listed

FAP42TC 1 (ATS001871E-FAP42TC-Datasheet.pdf, 728 Kb) [Download]
