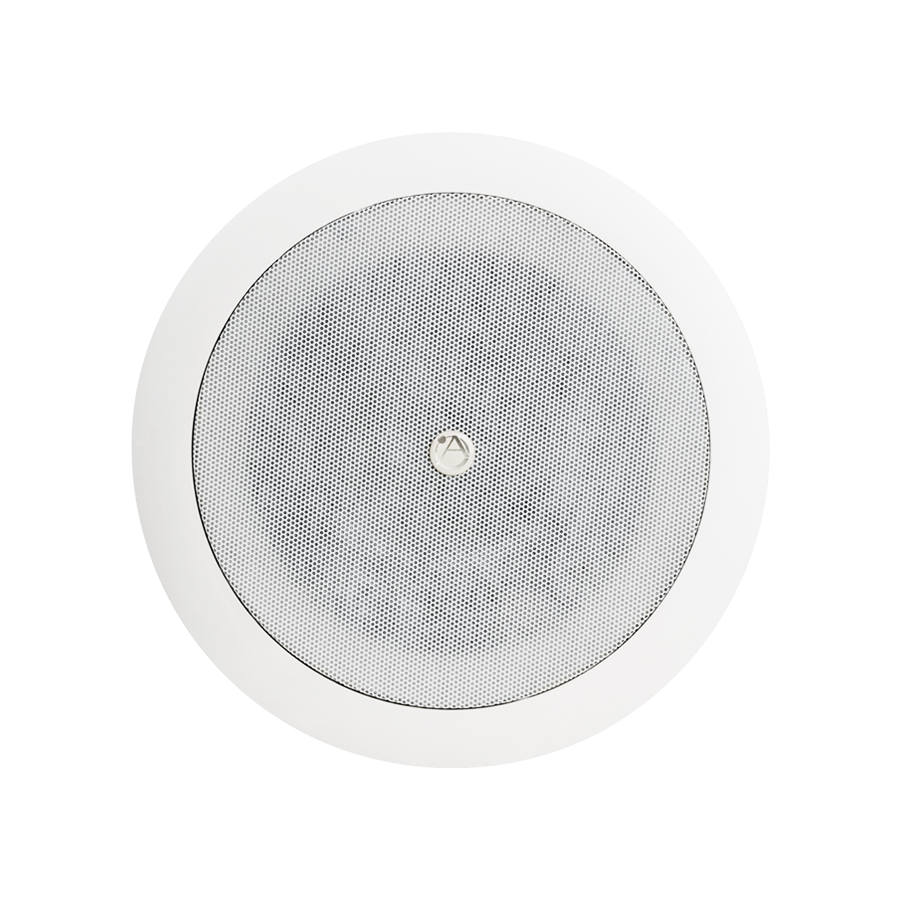

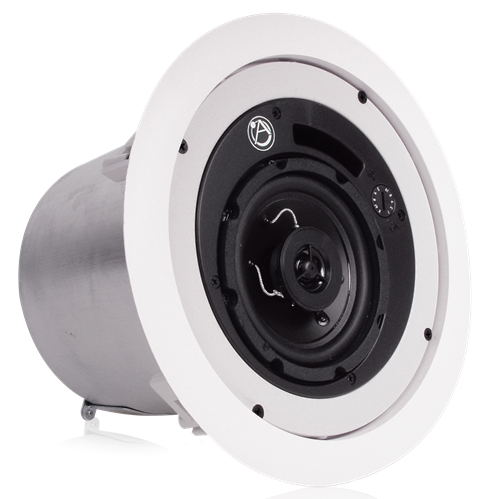

FAP42T 4" Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer and Ported Enclosure - White
Please sign in so that we can notify you about a reply
FAP42T combines superior coaxial speaker performance with wide dispersion and easy installation.
A low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings. The FAP42T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.
The FAP42T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.
Features
- 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
- Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
- Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
- Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
- Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required
- Press-Fit Grille Blends Perfectly into Contemporary Architecture
Brand:
Atlas IED
Product Type:
Loudspeaker System
Specifications
Coverage Angle:
130°
Diameter:
26.7cm
Number of Included Speakers:
2
Speaker Configuration:
Two Way
Mounting Type:
Drywall Ceiling Mount
Colour:
White
Series:
Strategy II
Power Rating:
25W@8Ω
Applications:
Commercial, Industrial, Institutional
Enclosure Type:
Ported Deep Drawn
Material:
Galvanized Steel (Enclosure)
Performance
Frequency Rating:
75Hz to 20kHz
Inputs and Ports
I/O Interface Type:
4-Pole Detachable Phoenix/Euro Style Connector
Input Connector Type:
4-Pole Detachable Phoenix Style/Euro Connector
Dimensions
Height:
22.5cm
Weight:
364g (Woofer Magnet)
Other
Voltage Rating:
70.7V (Transformer Tap)
Standards Met:
UL 1480 Listed
