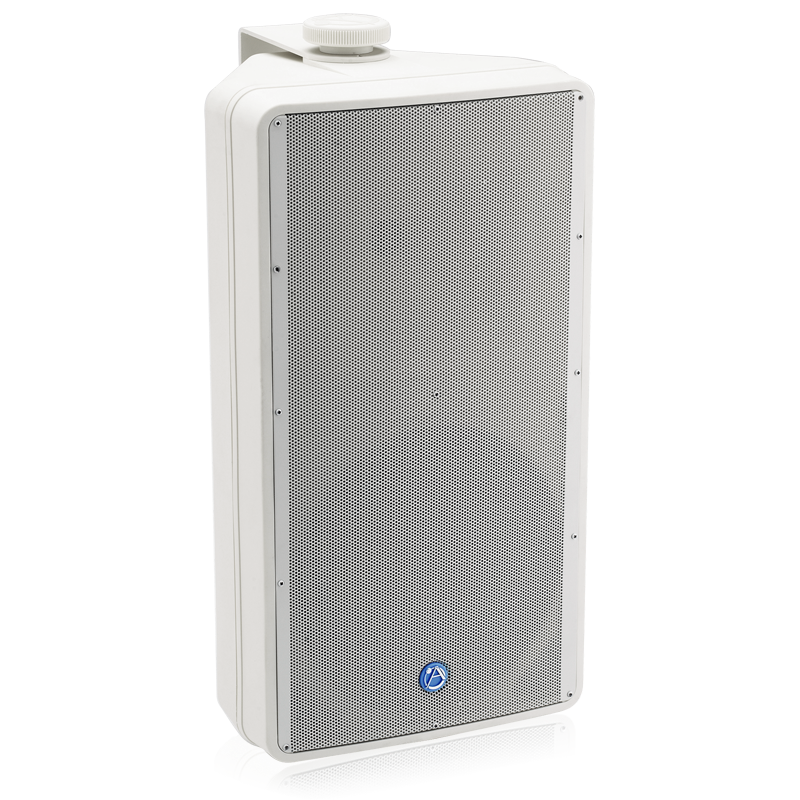

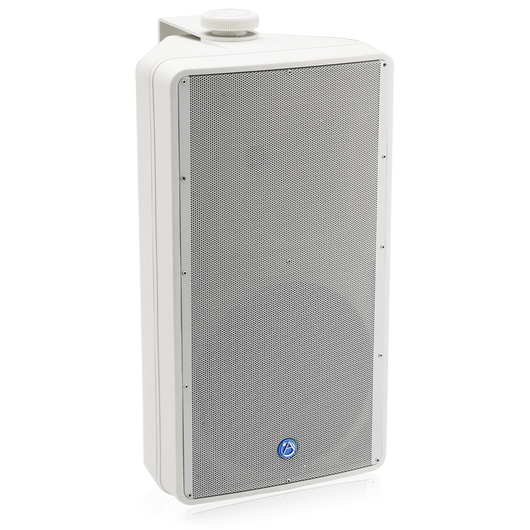

SM82TEN-WH 8in 2-Way All Weather Speaker, White, with 60W 70V/100V Transformer

Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, titanium dome high frequency device. Vocal and musical clarity are optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound coverage (65oH x 65oV). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. The AtlasIED PolyGuard™ protection circuit provides high frequency component protection. To withstand the harshest environments, the Strategy Series SM82TEN surface mount loudspeakers are constructed of weather resistant materials: UV-resistant, talc impregnated, polypropylene injection molded cabinets; HYCONE treated paper woofer cones; powder coated aluminum grilles and all brass hardware. The Strategy Series speaker systems include a versatile, yet simple, C-bracket designed to provide easy vertical or horizontal installation on just about any surface. A 15mm (.59") hole is provided on the C-bracket to allow the SM82T speaker to be mounted on any AtlasIED microphone stand for nearfield live sound applications. Four 4 1/4" x 2" (108mm x 51mm) OC brass inserts are also provided on the rear of the SM82TEN-B and SM82TEN-WH to accommodate OMNIMOUNT™ 30 series brackets. (OMNIMOUNT 30.0 WB recommended for wall mounting. All inserts for mounting knobs are standard 1/4"–20 to allow easy substitution of off-the-shelf vandal-proof torx head or “one-way hardware. Input connectors include a two-pole barrier strip with wire capture “caps" capable of accepting up to two #16AWG cables. 1.9, 3.7, 7.5,15, 30 and 60 Watt taps, plus a transformer bypass setting for direct coupled 8Ω operation are screwdriver selectable via a sealed switch located near the input section on the rear of the cabinet. A tongue-in-groove cover with rubber wire exit grommet is provided to protect the input connections and transformer switch assembly from moisture. Systems are available in black or white and may be painted to accommodate any architectural considerations.

• 1" Exit Titanium High Frequency Compression Driver
• UL1480A Listed
• All ¼"-20 Hardware Inserts Allow Easy Integration of "Off-the-Shelf" Security Hardware
• Atlas Sound TRX WAVEGUIDE™- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
• Compact, 2-way Loudspeaker Systems for Exceptional Performance in Music and Sound Reinforcement Systems
• Conforms to 100HR Salt Spray Test per ASTM B117
• Highly Efficient 8" HYCONET Treated Woofer
• POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
• Screwdriver Adjustable 60 Watt 70.7V/100V Transformer for Distributed Sound Application
