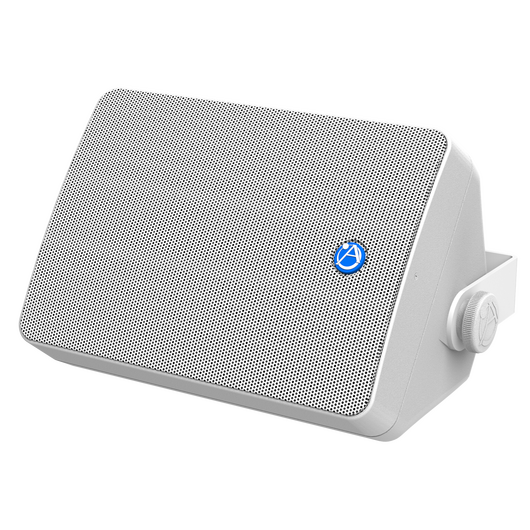

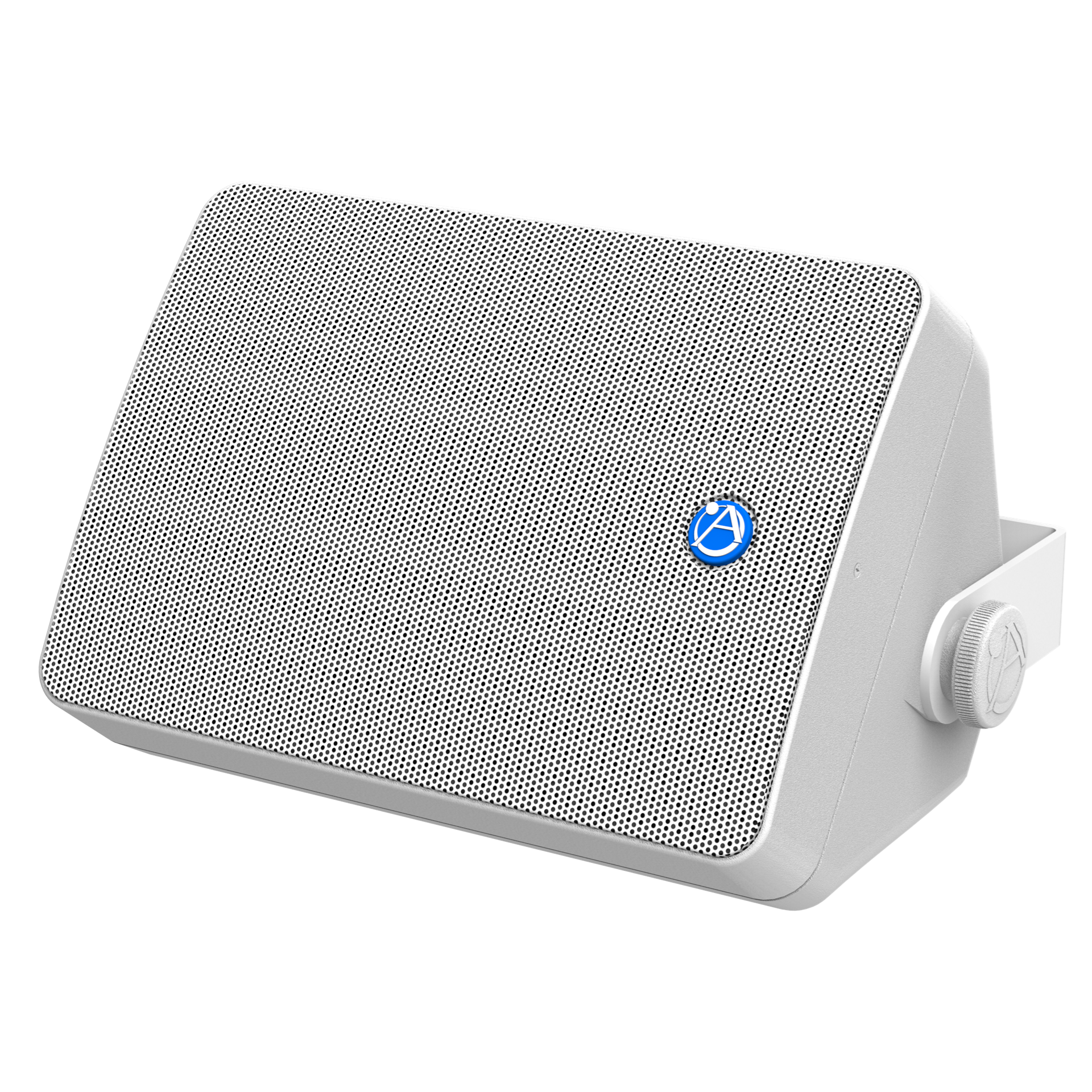

SM63TEN-WH 6.5in 2-Way All Weather Speaker, White, with 32W 70V/100V Transformer
Please sign in so that we can notify you about a reply
Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, polymer reinforced linen composite dome high frequency device. This design provides smooth, even sound coverage (120° conical). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard™ protection circuit. The SM63TEN includes an internally mounted 32-Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 8Ω operation.
Features- 1" Ferrofluid™ Cooled Dome Tweeter
- 100HR Salt Spray Test Per ASTM B117
- All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
- Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
- Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
- Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
- Highly Efficient 6.5" Polypropylene Woofer
- OMNIMOUNT™ Compatible
Brand:
Atlas IED
Product Type:
All Weather Speaker
Product information
Operating Range:
90Hz to 18.5kHz
Specifications
LF Voice Coil Size:
2.5cm
SPL:
121dB (Continuous)@1m, 127dB (Peak 8Ω)@1m, 85.9dB@4m
Transducer Size:
165mm (LF), 20mm (HF)
Transformer Tap Scale:
32W (156Ω), 16W (313Ω), 8W (625Ω), 4W (1,250Ω), Low Impedance (8Ω), 32W (313Ω) RNP, 16W (650Ω), 8W (1,250Ω)
Woofer Cone Material:
Ferrofluid Cooled Tweeter
Woofer Size:
16.5cm
Coverage Angle:
120° (Vertical/Horizontal)
Mounting Type:
Surface Mount
Colour:
White
Series:
Strategy
IP Rating:
IP33C
Power Rating:
75W (Continuous), 150W (Program)
Applications:
Indoor / Outdoor, Retail, Restaurants, Corporation, House of Worship
Material:
Polycarbonate/Acrylonitrile Butadiene Styrene (Enclosure and Baffle), Aluminium (Grille)
Resistant Properties:
Weather-Resistant, UV-Resistant
Includes:
Bracket
Performance
Directivity Factor:
13.46@2kHz, 11.30@2kHz
Maximum Output:
127dB
Operating Temperature Rating:
-20 to +50°C
Sensitivity:
88.5dB, 72dB (EN54-24 Sensitivity)
Frequency Rating:
104Hz to 20kHz
Crossover Frequency:
2.7kHz
Dimensions
Shipping Weight:
5.5cm
Width:
26.1cm
Depth:
17cm
Height:
18.4cm
Weight:
3.8kg
Other
Standards Met:
ASTM B117, EN54-24
Warranty:
5yrs
