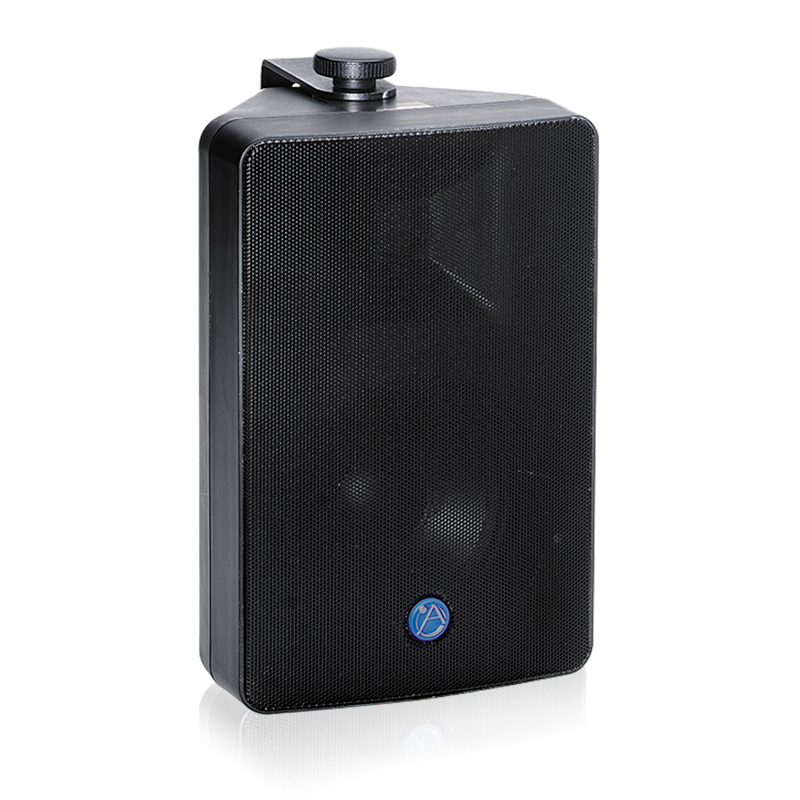

SM52TEN-B 5.25in 2-Way All Weather Speaker, Black, with 30-Watt 70V/100V Transformer
Please sign in so that we can notify you about a reply
Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound coverage (90o H x 90oV). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard™ protection circuit. The SM52TEN includes an internally mounted 60 Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 6Ω operation
Features- 1" Ferrofluid™ Cooled Dome Tweeter
- 100HR Salt Spray Test Per ASTM B117
- All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
- Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
- Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
- Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
- Highly Efficient 6.5" Polypropylene Woofer
- OMNIMOUNT™ Compatible
Brand:
Atlas IED
Product Type:
All Weather Speaker
Product information
Compression Driver Size:
2.5cm
Specifications
Compression Diaphragm Material:
Mylar
Compression Driver Magnet:
1.39oz
SPL:
82.3dB
Transformer Tap Scale:
94W, 1.9W, 3.7W, 7.5W, 15W, 30W, 6Ω Bypass
Woofer Cone Material:
Polypropylene
Woofer Magnet:
20oz
Woofer Size:
13.3cm
Woofer Surround Material:
Rubber
Coverage Angle:
90° (Vertical/Horizontal)
Mounting Type:
Surface Mount
Colour:
Black
Series:
Strategy
IP Rating:
IP33C
Power Rating:
100W
Applications:
Indoor / Outdoor, Retail, Restaurants, Corporation, House of Worship
Material:
PC/ABS, Aluminium (Grille)
Resistant Properties:
Weather-Resistant, UV-Resistant
Includes:
Bracket
Performance
Sensitivity:
90dB, 69dB (EN54-24 Sensitivity)
Frequency Rating:
93Hz to 20kHz
Crossover Frequency:
4.5kHz
Crossover Type:
1st Order Low Pass, 2nd Order High Pass
Dimensions
Shipping Weight:
43.2cm
Width:
17.5cm
Depth:
14.8cm
Height:
28.5cm
Other
Standards Met:
ASTM B117, EN54-24
Warranty:
5yrs
