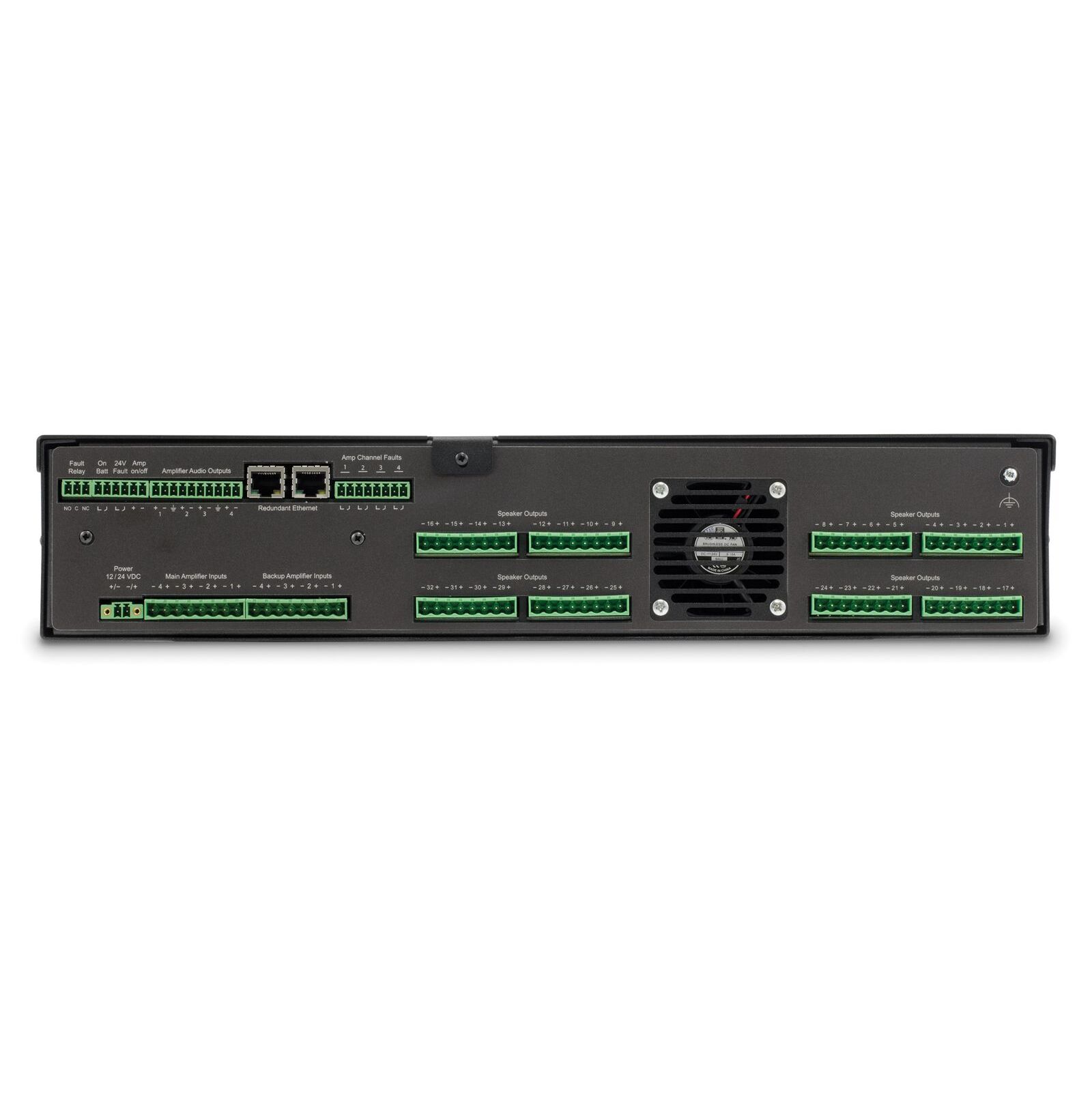

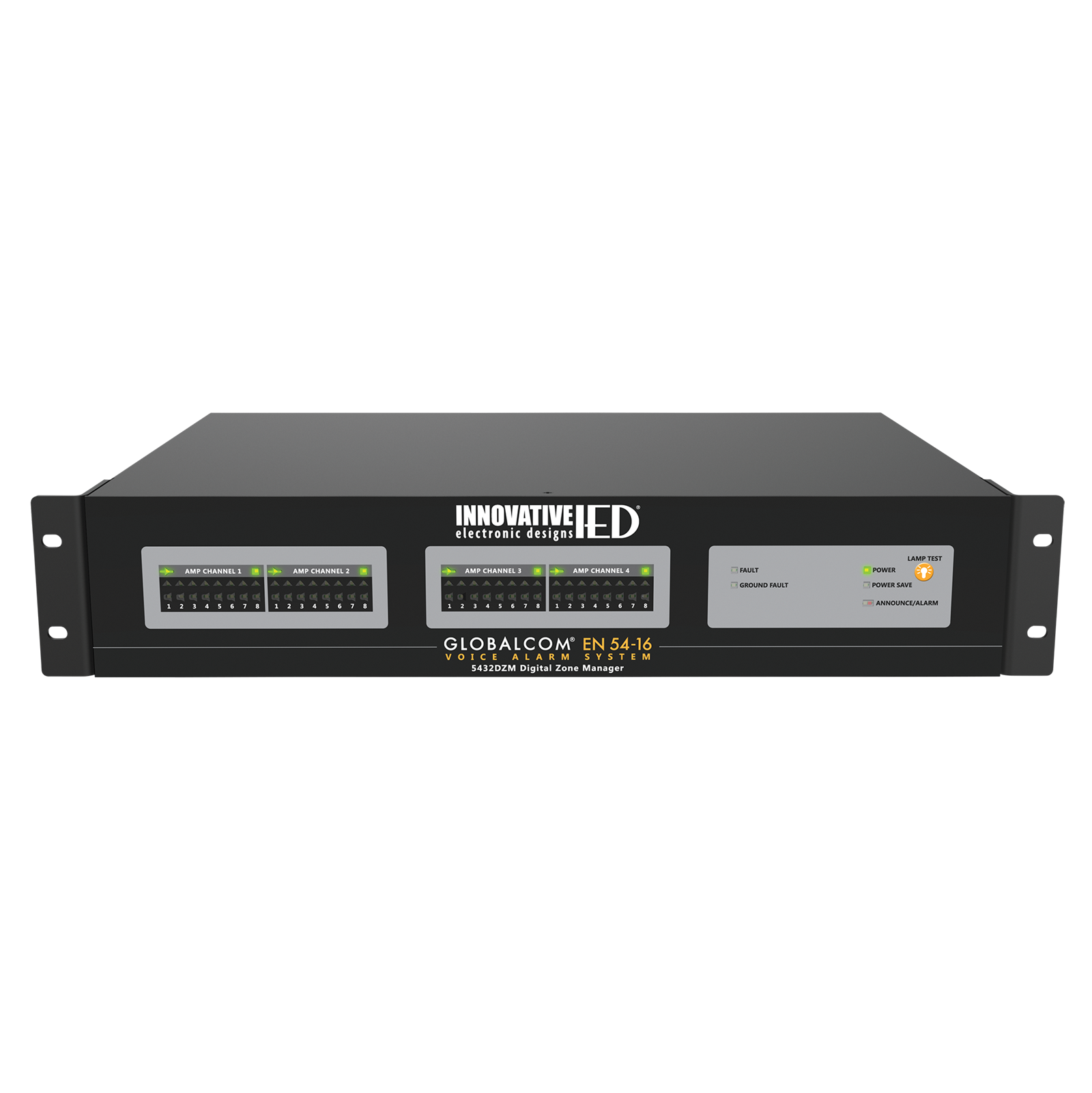

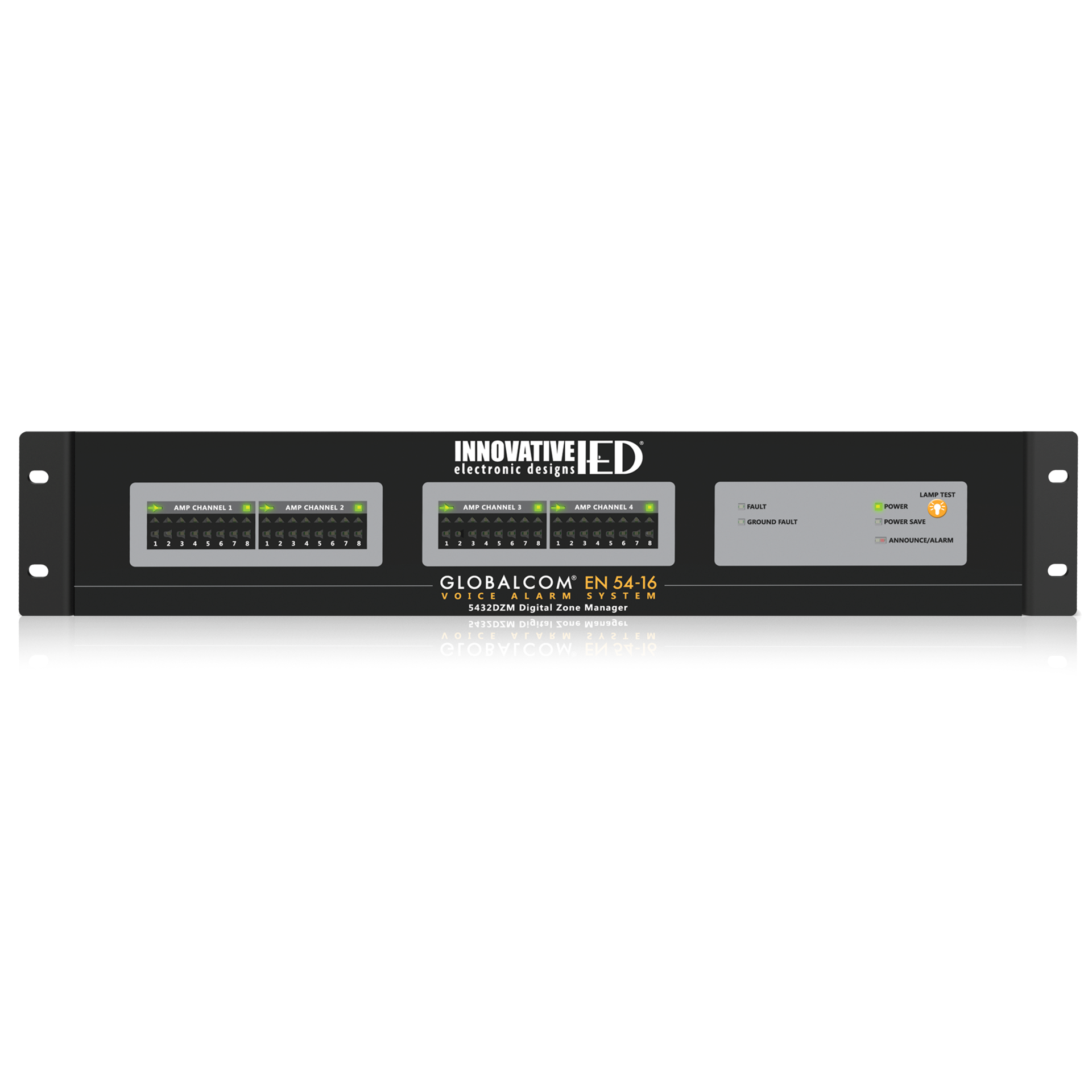

IED5432DZM Digital Zone Manager, Black, 32 Zones
Please sign in so that we can notify you about a reply
The 5432DZM Digital Zone Manager provides processing and management of up to 32 paging zones assigned from an IED 5400 Announcement Control System. It provides line level audio outputs to a paired four (4) channel amplifier unit. Digital Signal Processing (DSP) is provided on each of the four (4) output channels. This includes: gain control for the paging input, page routing, automatic ducking of background music, equalization (high and low pass filters, up to 7 parametric bands per amplifier channel, and up to 40 milliseconds of delay). The paired amplifier outputs comes back into the 5432DZM and then is distributed to up to eight (8) speaker line outputs per amplifier channel. Each of the 32 speaker lines is supervised. The 5432DZM provides automatic backup amplifier switching by switching groups of eight (8) speaker loads from the primary power amplifier to a backup when a failure is detected. It also contains integrated supervision that monitors each signal path and reports any failures to the 5400ACSThe mainframe requires two (2) rack units (3.5") of vertical space in a 19" equipment rack/cabinet. All cooling is front to back
Features- 4 Input x 32 Output Zone Manager for 4 banks of 8 Speaker Outputs
- Allows utilization of up to 500 watts per channel amplifiers to drive groups of 8 zones via relay switching
- 4 Audio inputs via Dante™ audio networking (high quality over Ethernet)
- Redundant Ethernet ports
- Provides automatic backup amplifier switching
- Fully supervises amplifier and speaker lines
- DSP processing for 4 amplifier channels
- Low and high pass filters
- 7-Band parametric EQ filters
- Up to 40 milliseconds of delay
Brand:
Atlas IED
Product Type:
Digital Zone Manager
Specifications
Mounting Depth:
45.7cm
Speaker Power Rating:
100W
Mounting Type:
Rack Mount
Colour:
Black
Series:
5400
Power Rating:
500W (Backup)
Operating Temperature Range:
0 TO +40°C
Performance
Amplifier Power Rating:
500W (Mains)
Inputs and Ports
Connector Type:
2-pin Phoenix (Power), RJ-45, 3-pin Phoenix (Form C Fault Relay), 3-pin Phoenix (Amplifier Audio Outputs), 3-pin Phoenix (Amplifier Channel Faults), 2-pin Phoenix (Main Amplifier Inputs), 2-pin Phoenix (Backup Amplifier Inputs), 2-pin Phoenix (Speaker Out
Power
Contact Rating:
2 A@110V DC
Dimensions
Width:
43.7cm
Depth:
31.1cm
Height:
8.8cm
Weight:
19.7kg
Other
Voltage Rating:
12 to 24V DC@ 54.2W
Standards Met:
EN54-4
Warranty:
36months
