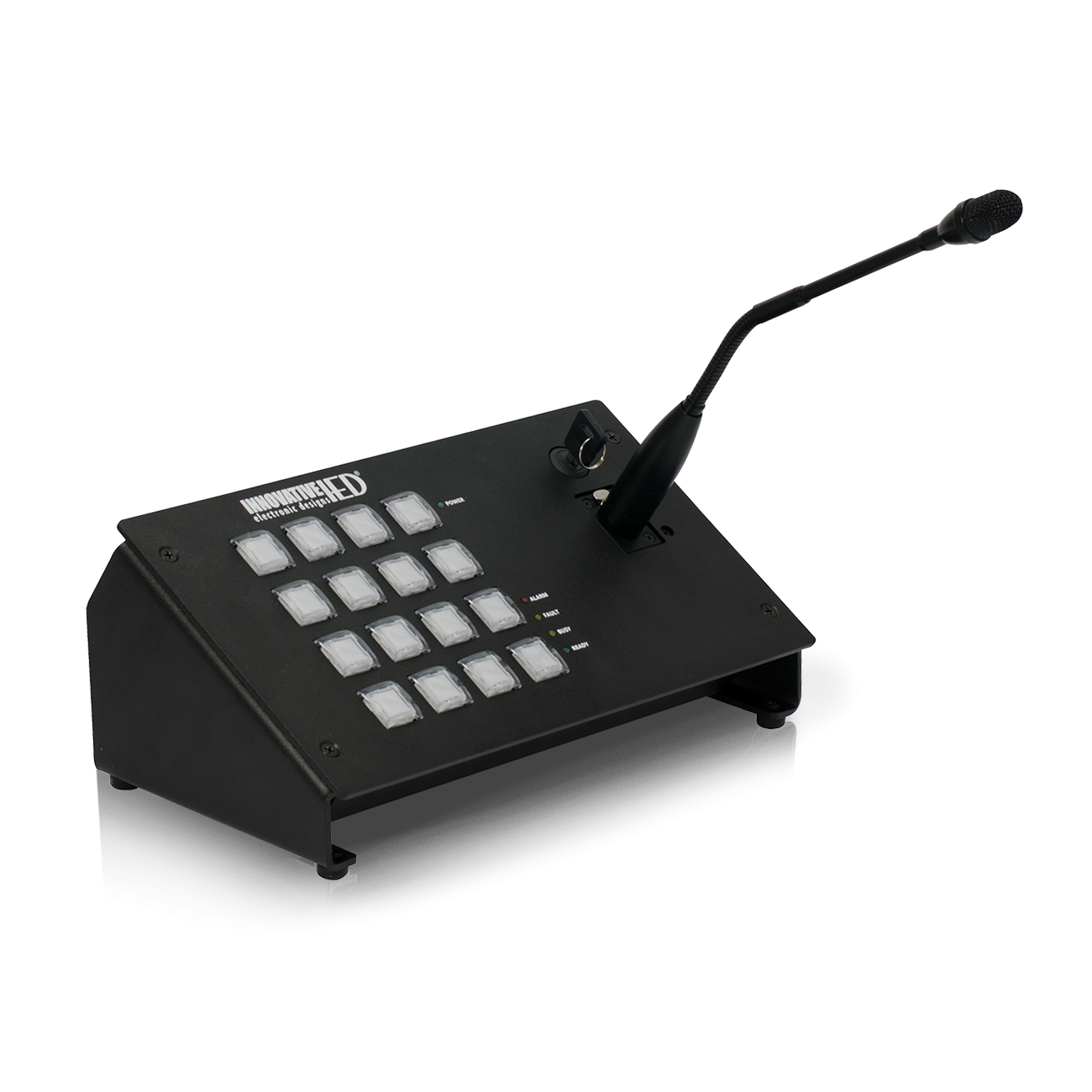

IED5416CS-G Digital Communications Station, Black, 24 to 48V AC/DC, 16 Buttons
Please sign in so that we can notify you about a reply
The 5416CS H/G digital communications station is a fully programmable 16 button interface device for initiating audio/ visual announcements with the 5400 Series Announcement Control Systems. Each model utilizes an electret condenser cartridge that is positioned in the housing such that its frequency response is enhanced. The microphone element location provides the mechanism for good acoustical coupling to provide a full-bodied, highly intelligible voice signal. The 5416CSG includes a goose neck microphone and the 5416CSH includes a handheld microphone. The 5416CS has an auxiliary line level audio input which may be used as a (local) background music source. The station also has a line level audio output which may be used as a zone out. It is a network appliance in which each station may obtain its IP address automatically or be assigned a unique IP address which simplifies installation and configuration
Features- Fully programmable 16 button interface with dual color capability to indicate announcement / action statuses
- Allows selection and initiation of announcements and messages in a GLOBALCOM® EN54-16 System
- Fully supervised from the microphone element
- Handheld, Gooseneck, Surface (Flat) or Desktop (Free Standing) Versions
- Redundant ethernet ports
- PoE powered
- Suitable for use as the Emergency Microphone Paging Station in EN54-16 Systems
- 16 fully programmable action buttons
- Alarm Indicator LED (red)
- Fault Indicator LED (yellow)
- Fault Indicator LED (yellow)
- Ready Indicator LED (green)
Brand:
Atlas IED
Product Type:
16 Button Communications Station
Specifications
Compression Threshold:
-15dBu
Mounting Type:
Wall Mount, Surface Mount
Colour:
Black
Series:
5400
Power Rating:
7.2W
Operating Temperature Range:
0 TO +40°C
Performance
Attack Time:
22ms
Compression Ratio:
10:1
Release Time:
1s
Signal-to-Noise Ratio:
>85dB
Maximum Output:
+4dBu
Total Harmonic Distortion:
<0.2%, <1.5%, <0.03%
Sample Rate:
48kHz
Inputs and Ports
Connector Type:
2-pin Phoenix (Auxiliary Power), 3-pin Phoenix (Auxiliary Audio In/Out)
Connectivity
Network Latency:
2ms
Power
PoE Supply Voltage:
48V
Dimensions
Width:
30.02cm
Depth:
5.1cm
Height:
15.9cm
Other
Voltage Rating:
24 to 48V AC/DC
Standards Met:
EN54-16
