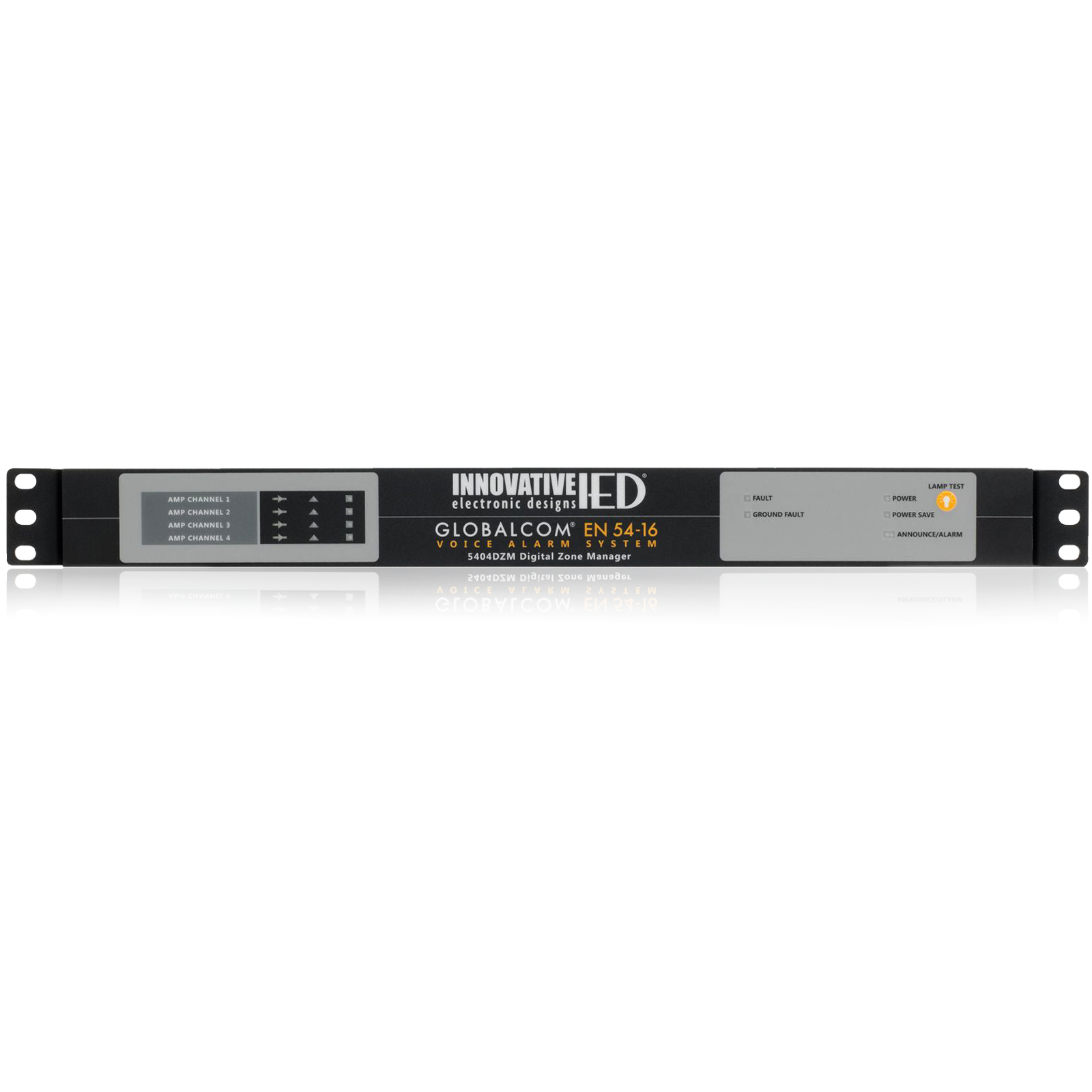

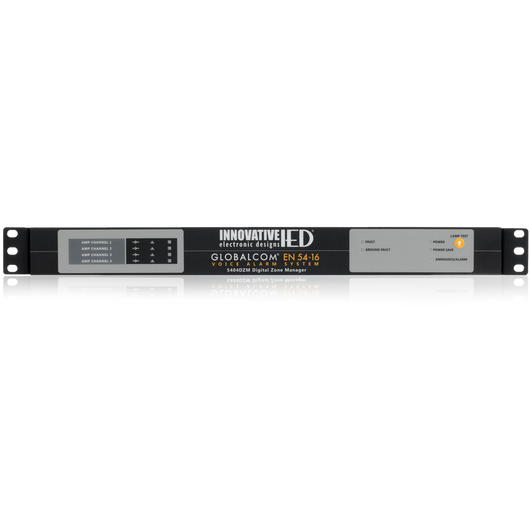

IED5404DZM Digital Zone Manager, Black, 4 Zones
Please sign in so that we can notify you about a reply
The 5404DZM Digital Zone Manager provides processing and management of four (4) paging zones assigned from an IED 5400 Announcement Control System. It also provides line level audio outputs to a paired four-channel amplifier unit. Digital Signal Processing (DSP) is provided on each of the four (4) output channels. This includes: input level controls, paging routing, automatic ducking of background music, equalization (high pass filters, low pass filters, up to 40 milliseconds of delay, plus up to 7 parametric bands per amplifier channel). IED’s patented ambient analysis and control provides automatic level adjustment with two (2) Sensor Input Channels per amp channel. The 5404DZM provides backup amplifier switching by switching up to four (4) speaker loads from a primary power amplifier to a backup when a failure is detected. It also contains integrated supervision that monitors each signal path and reports any failures to the 5400ACS.The mainframe requires one (1) rack unit (1.75") of vertical space in a 19" equipment rack/cabinet. All cooling is front to back
Features- Management of 4 Individual output channels
- 4 Audio inputs via Dante™ audio networking (high quality over Ethernet)
- Redundant Ethernet ports
- Provides backup amplifier switching
- Fully supervises amplifier and speaker lines
- Provides ambient analysis and compensation with 8 sensor input channels
- DSP processing for 4 amplifier channels
- Low and high pass filters
- 7-Band parametric EQ filters
- Up to 40 milliseconds of delay
Brand:
Atlas IED
Product Type:
Digital Zone Manager
Specifications
Mounting Depth:
45.7cm
Sensor Voltage Rating:
27V DC
Speaker Power Rating:
500W
Mounting Type:
Rack Mount
Colour:
Black
Series:
5400
Power Rating:
500W (Backup)
Operating Temperature Range:
0 TO +40°C
Performance
Amplifier Power Rating:
500W (Mains)
Inputs and Ports
Connector Type:
2-pin Phoenix (Power), RJ-45, 3-pin Phoenix (Ambient Sensors), 3-pin Phoenix (Form C Fault Relay), 3-pin Phoenix (Amplifier Audio Outputs), 3-pin Phoenix (Amplifier Channel Faults), 2-pin Phoenix (Main Amplifier Inputs), 2-pin Phoenix (Backup Amplifier In
Power
Current Rating:
2A
Contact Rating:
2 A@110V DC
Dimensions
Width:
43.7cm
Depth:
31.1cm
Height:
4.4cm
Weight:
17kg
Other
Voltage Rating:
12 to 24V DC@ 15.7W
Standards Met:
EN54-4
Warranty:
36months
