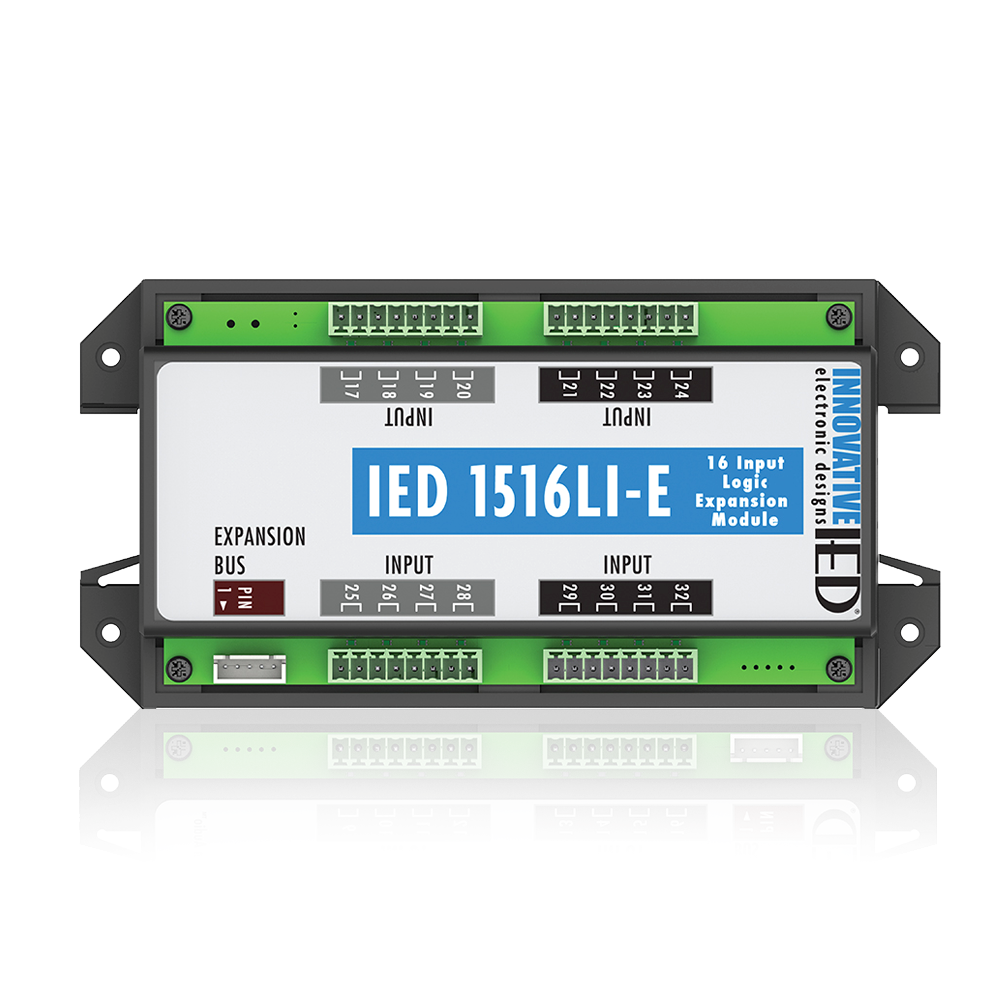

IED1516LI-E Input Logic Expansion Module, Black, 16 Input
Please sign in so that we can notify you about a reply
The 1516LI is a network logic input device used to interface with an IED GLOBALCOM® announcement control system. It provides 16 optically-isolated inputs that can be driven using dry contact closures or 0 to 50VDC logic signals. A green LED is provided above each input that illuminates when activated. The announcement controller is configured using the GLOBALCOM® System Management Center software where logic inputs can be used to launch announcements, pre-recorded messages, events, or fault reports. The device receives its power over IEEE 802.3af Power over Ethernet (PoE) and communicates with other system devices over the Ethernet network. The maximum power consumption from the PoE switch is 4-watts if the 1516LI-E expansion module is used. The maximum power consumption is 3 watts if the expansion unit is not used. If PoE equipment is not available, an input is provided for an alternate 48VDC power supply. A green LED is provided to show that the unit is powered on.
Features- 16 optically-isolated inputs to interface with external equipment such as fire panels, security systems, etc.
- Expandable to 32 inputs using the optional 1516LI-E
- Control and configuration using a web browser and GLOBALCOM® System Management Center
- Settings storage in non-volatile memory
- Full integration with the IED GLOBALCOM® vACS
Brand:
Atlas IED
Product Type:
Input Logic Module
Specifications
Mounting Type:
DIN Rail Mount, Panel Mount, Wall Mount
Colour:
Black
Series:
5400
Power Rating:
3.5W
Operating Temperature Range:
-30 to +65°C
Performance
Hold Time:
250ms
Inputs and Ports
Number of Inputs:
16
Connector Type:
8-pin Phoenix (Inputs), RJ-45, 2-pin Phoenix (48 V DC Alternate Power Input), 5-pin Connector (Expansion Bus)
Power
Current Rating:
3mA (Source), 160mA (Sink)
Dimensions
Weight:
45.4cm
Width:
8.9cm
Depth:
5.08cm
Height:
17.8cm
Other
Voltage Rating:
0 to 1.6V DC (ON), 1.7 to 50V DC (OFF), 48V DC
Standards Met:
IEEE 802.3.af
Warranty:
36months
