CM Array2/W Bundle D Ceiling Mic Array Analog- X Bundle (4 Array, 12 Channel, White)

The Ceiling Microphone Array Analog-X is the newest addition to our ceiling mic lineup and most advanced tri-element ceiling microphone array for conferencing and sound reinforcement applications. Flexible and easy to use, Ceiling Mic Array is 100% RF immune, optimized for speech intelligibility, and can daisy-chain for easy installation. It is a perfect companion to all our DSP mixers, as well as any 3rd party DSP mixers.

Features

  • Tri-Element Microphone, 360° Coverage
  • Optimized for Intelligibility
  • Full Audio Bandwidth and High SNR
  • Works with ClearOne DSP Mixers
  • Compatible with 3rd Party DSP Mixers
  • 100% Shielded from RF Interference
  • Height Adjustable from 0 to 7'

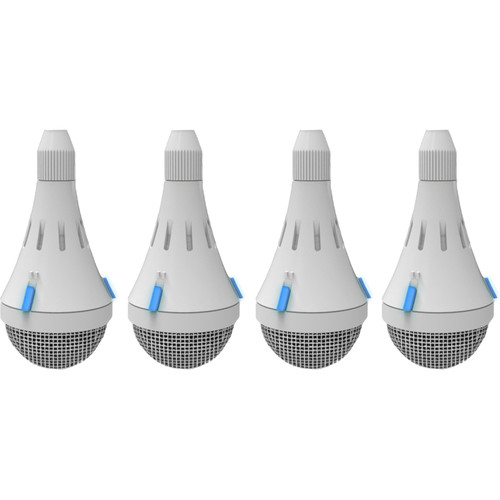

  • Includes 4 Mic Capsules

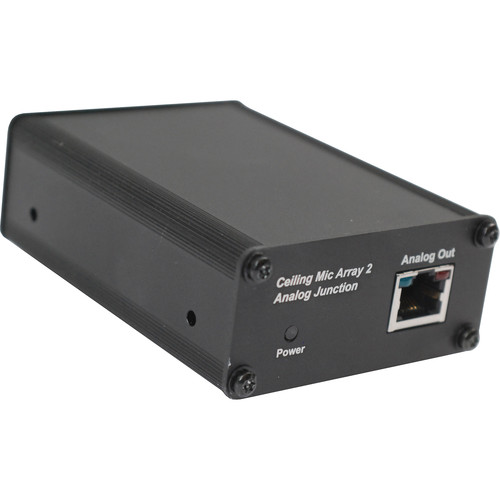

  • Includes 4 Analog Junction Boxes

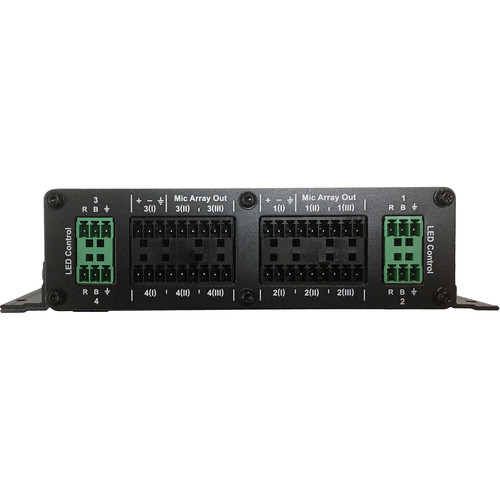

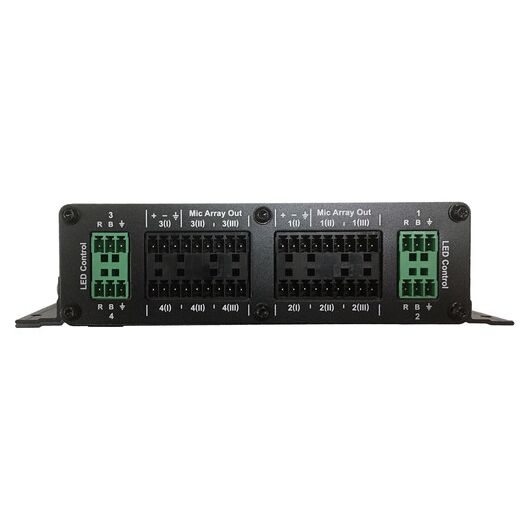

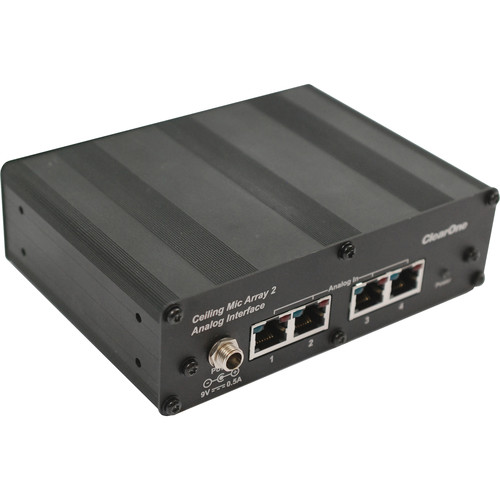

  • Includes 1 Analog Interface Box
Brand:
ClearOne
Product Type:
Ceiling Mic Array
Specifications
Polar Pattern:
Cardioid
Mounting Type:
Ceiling Mount
Element Type:
Electret Condenser
Colour:
Black, White
Special Features:
100% Shielding Against RF Interference
Applications:
Boardrooms, Conference Rooms, Huddle Rooms, Training Rooms, Lecture Halls, Courtrooms, Telemedicine Facilities
Includes:
4xMicrophone Capsules, 4 Analog Junction Boxes
Performance
Impedance Rating:
200Ω
Sensitivity Rating:
-37dB
Signal-to-Noise Ratio:
74dBA
Frequency Rating:
70Hz to 20kHz
Dimensions
Width:
17.2cm
Depth:
10.3cm
Height:
4.3cm
Weight:
0.3kg

CM Array2/W Bundle D 1 (CMA_AnalogX_Datasheet.pdf, 1,541 Kb) [Download]
