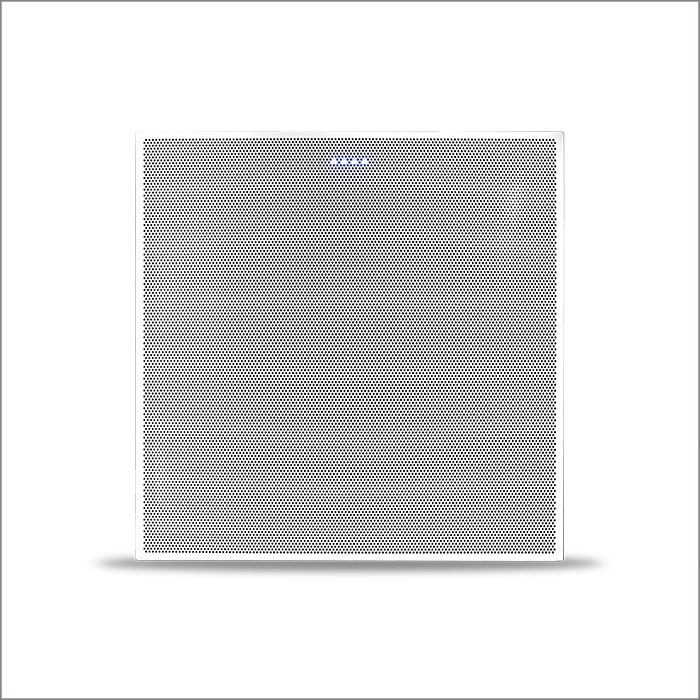

BMA 360 Beamforming Microphone Array, White with 4x15 Watt Power Amplifier

The patented BMA 360 is the world’s most technologically advanced ceiling tile beamforming mic array, delivering unrivaled audio performance and deployment ease.

Features

  • The industry’s only truly wideband, frequency invariant beamforming mic array with uniform gain response across all frequency bands. FiBeam™ technology gives users the ultimate in natural and full fidelity audio across all beams and within a single beam
  • A dramatically new approach to precision beamforming provides a new beam topology to easily achieve distortion-free, full 360-degree coverage of any room shape and any seating arrangement using ClearOne Audio Intelligence™
  • The BMA 360 Voice Lift feature provides a powerful and simple way to drive multiple mixminus speaker zones allowing everyone in the local room to hear every word
  • Due to the exceptional performance of the breakthrough technologies, FiBeam and DsBeam, greater Voice Lift gains can be realized that have not been previously possible
  • The combination of ClearOne’s beamforming and feedback cancellation technologies provide up to a 20 dB boost in gain before feedback compared to an omni mic
  • Further advancements in adaptive steering (think of it as smart switching) provide impeccable coverage of each conference participant as well as simultaneous support for camera tracking and Voice Lift
  • 6G Acoustic Echo Cancellation (AEC) delivers unparalleled per-beam full-duplex audio performance. On-board audio algorithms, like noise reduction, filtering, and Automatic Level Control, eliminate the need for per-beam processing in a DSP mixer - requiring fewer DSP mixer resources
  • Built-in, robust power amplifiers, configurableas 4 x 15 Watt or 2 x 30 Watt, provide flexibility for driving loudspeakers
  • ClearOne’s breakthrough technologies, FiBeam, DsBeam, Voice Lift, and 6G AEC combine to create VividVoice™, a significant advancement for professional conferencing
  • Integrated features significantly reduce system design complexity, simplify installation, consume less rack space, and lower system cost
  • Daisy-chain up to three ceiling tiles via P-Link for divisible rooms or larger conference setups – for simpler wiring and longer distances compared to networked “home run” connections via Ethernet
  • Single workflow for configuration using CONSOLE® AI software. Competing products require practitioners to program multiple components using different toolsets: Ethernet switches, Ceiling Tiles, DSP mixers, and the Dante Controller
  • Supports three different ceiling grid types: 24 in, 600 mm, and 625 mm. It incorporates a VESA-mount hole pattern that supports pole mounting. Hard-ceiling mount adapter kits are also available
Brand:
ClearOne
Product Type:
Beamforming Microphone Array
Specifications
Colour:
White
Applications:
Audio Conferencing, Video Conferencing, Voice Lift
Performance
Frequency Rating:
20Hz to 22kHz
Gain Control (Yes/No):
Yes
Power
Power Source Type:
PoE Injector, Equivalent
Dimensions
Width:
59.2cm
Depth:
5.4cm
Height:
59.2cm
Weight:
4.1kg
Shipping Weight:
5.8kg

BMA 360 1 (DTS-0164-001_v2.15_20210328.pdf, 2,356 Kb) [Download]
