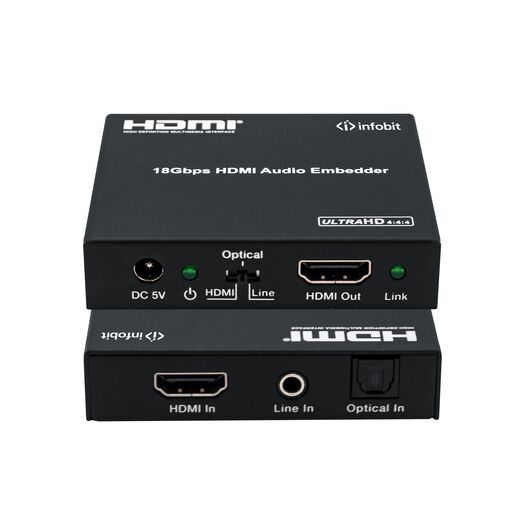

iTrans AE01 Audio Embedder, Type-A Female HDMI, with HDCP 2.2
Please sign in so that we can notify you about a reply
The HDMI 18Gbps Audio Embedded could embed audio signals from digital optical or analog stereo Line audio to HDMI output. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
Features- HDMI 18Gbps Audio Embedder with HDCP 2.2
- Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output
- Optical audio supports LPCM 2CH, Dolby Digital 2/ 5.1CH, DTS 2/5.1CH
- Analog audio supports PCM2.0
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Supports HDMI High Bit Rate(HBR) audio pass-through
- 10bits HDR (High Dynamic Range) pass-through
- Supports CEC bypass
Analog Audio Levels:
PCM2.0
Brand:
Infobit
Embedded Audio:
18Gbps
Product Type:
Audio Embedder
Specifications
Audio Format:
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Maximum Operating Temperature:
40°C
Special Features:
10bits HDR (High Dynamic Range) Pass Through, HDCP 2.2 and CEC bypass are Supported, Video Resolutions up to 4K2K@50/60Hz (YUV (4:4:4))
Power Rating:
1.25W
Indicator Type:
LED
Material:
Metal (Enclosure)
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI 18Gbps Audio Embedder, 1x5V/1A Power Adaptor, 1xUser Manual
Performance
Video Format:
HDMI
Digital Audio Bit Depths:
10 to 12bit
Inputs and Ports
Digital Video Input Type:
HDMI Type-A Female
Input Port Type:

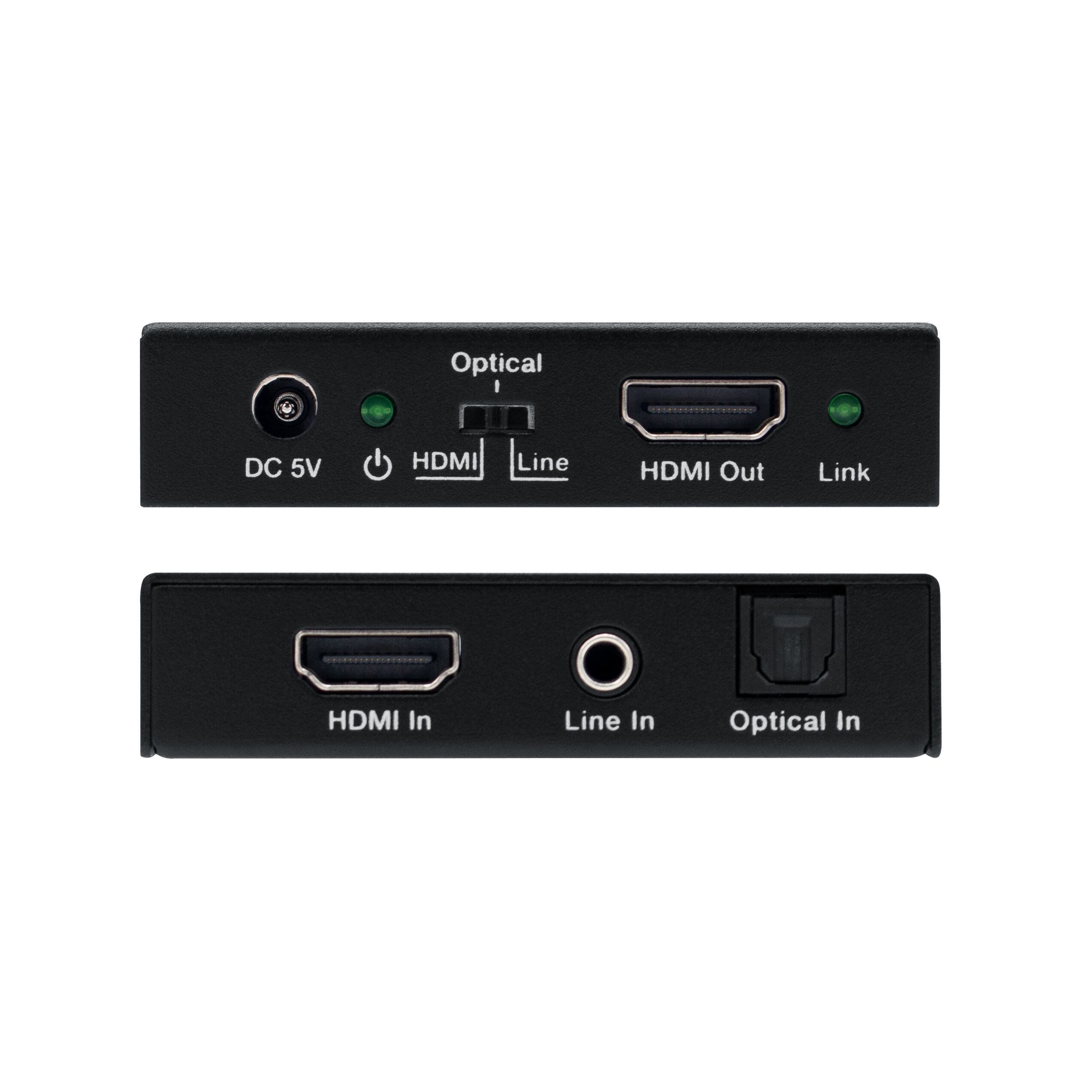

1xHDMI Type-A (19 Pin Female), 1xLine In (3.5mm Stereo Mini Jack), 1xOptical In (S/PDIF)
Output Port Type:
1xHDMI Type-A (19 Pin Female)
Digital Video Output Type:
HDMI Type-A Female
Dimensions
Width:
7.3cm
Depth:
6cm
Height:
1.7cm
Weight:
122g
Other
Voltage Rating:
100 to 240V AC, 5V DC
Standards Met:
US, EU, CE, FCC Compliance, UL Certified
