FC-69 HDMI Audio Embedder/De-Embedder
Please sign in so that we can notify you about a reply

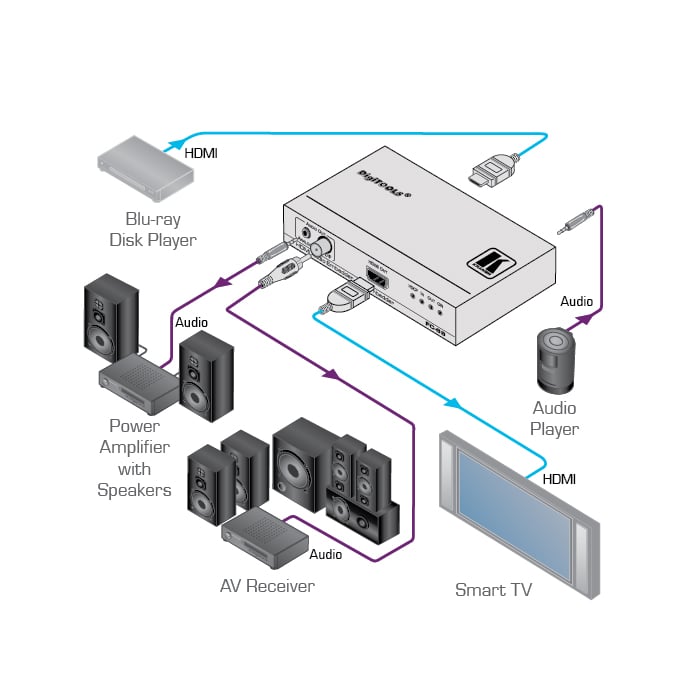

FC−69 is a high−performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de−embedder. The unit can embed analog audio to the HDMI output or de−embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.
Features
- Max. Resolution — 4K@60Hz (4:2:0), 4Kx2K.
- Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — ARC, 7.1 PCM, deep color.
- Audio Embedding — Even without an HDMI source.
- Audio de–Embedding — To unbalanced analog and S/PDIF, selectable from input or ARC.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Sleep Mode — 5V on the output, following the input, allows the display to turn off when no video is being sent.
- Preconfigured Control Options — DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.
Brand:
Kramer
Part number:
41-90043490
Product Type:
HDMI Audio Embedder/De-Embedder
Specifications
Audio Format:
S/PDIF Digital Audio, Analog Stereo Audio
Maximum Operating Temperature:
+40°C
Special Features:
Max. Resolution, Max. Data Rate, HDTV Compatible, HDCP Compliant, HDMI Support, Audio Embedding, Audio De-Embedding, Kramer Equalization & Re-Klocking™ Technology, Sleep Mode, Preconfigured Control Option
Applications:
Home Theatre, Presentation, Multimedia, Rental, Staging, Education, Corporate
Indicator Type:
LED
Material:
Aluminium
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Rubber Feet
Inputs and Ports
Input Port Type:
HDMI, Analog Stereo Audio on a 3.5mm Mini Jack
Output Port Type:
1xHDMI on an HDMI Connector, 1 S/PDIF Digital Audio on an RCA Connector, 1 Analog Stereo Audio on a 3.5mm Mini Jack
Audio Connector:
1 S/PDIF Digital Audio on an RCA, 1 Analog Stereo Audio on a 3.5mm Mini Jack
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
5V DC
Standards Met:
CE, RoHS Compliant, WEEE
