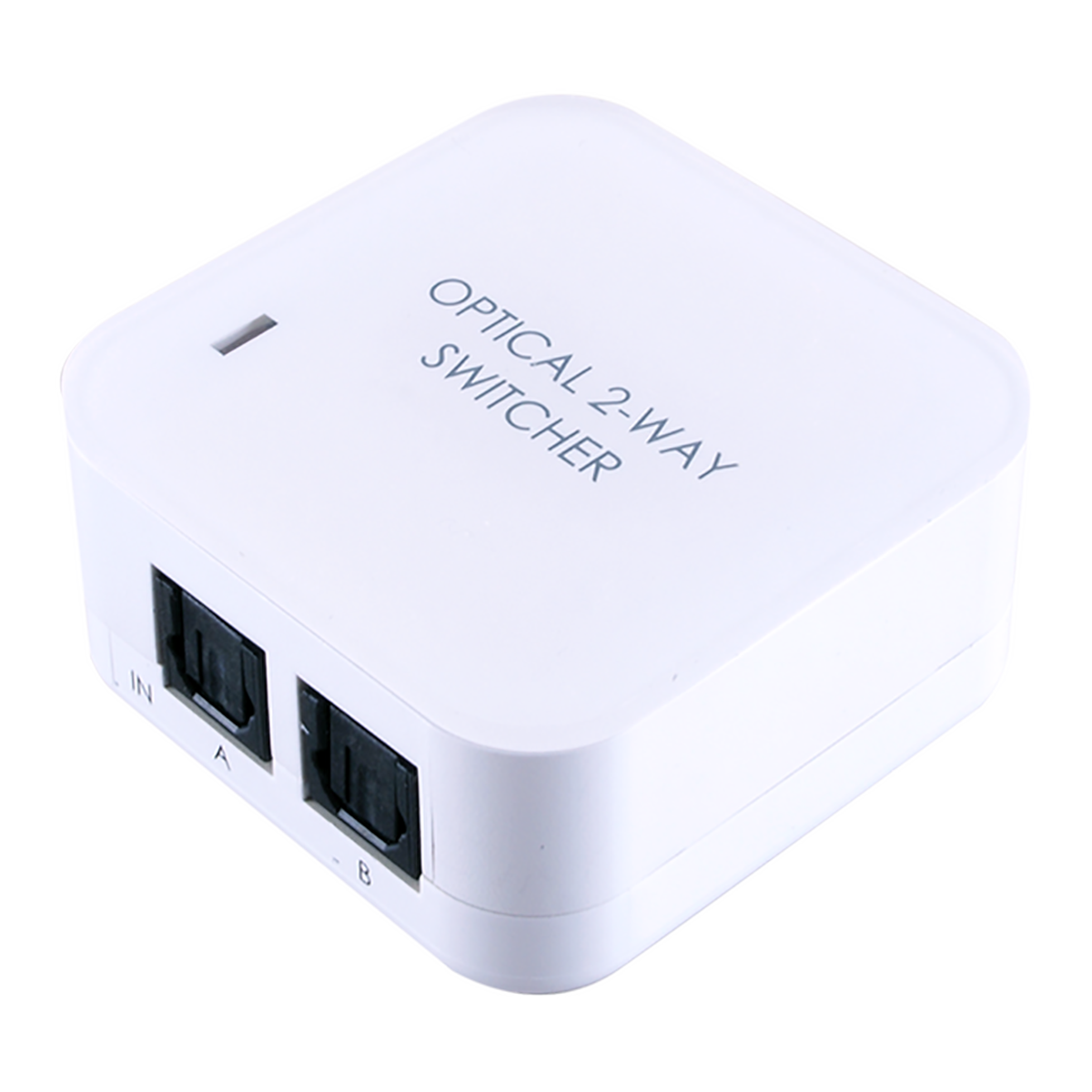

DT-21 2x1 Optical Digital Audio Switcher
Please sign in so that we can notify you about a reply
The Optical Digital Audio Switcher can switch two optical digital inputs to a single optical digital output to lengths of up to 5m, using TOSLink optical cables, reliably and without loss of quality. It is designed to be compact, easy to install and use, making it ideal for home or professional audio distribution.
Features
- Supports the S/PDIF standard of digital audio transmission
- Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation) audio signal
- Supports compressed 2-channel and multi-channel Dolby Digital and DTS audio signals
- Provides electromagnetic-noise-free transmission
- Easy to install and to operate
Brand:
Cypress Technology
Specifications
Product Type:
Optical 2-Way Switcher
Maximum Operating Temperature:
+40°C
Special Features:
Supports the S/PDIF Standard of Digital Audio Transmission, Supports Uncompressed 2-Channel LPCM
Applications:
Additional Optical Digital Input to an AV Receiver Switch Optical Digital Sources for use with an Audio Over CAT Cable Extender (Such as a CH-304TXCH-304RX Cypress TOS Link COAX Over Single CAT5e 67 Transmitter and Receiver)
Material:
Plastic
Minimum Operating Temperature:
-0°C
Performance
K-Factor:
0%
Inputs and Ports

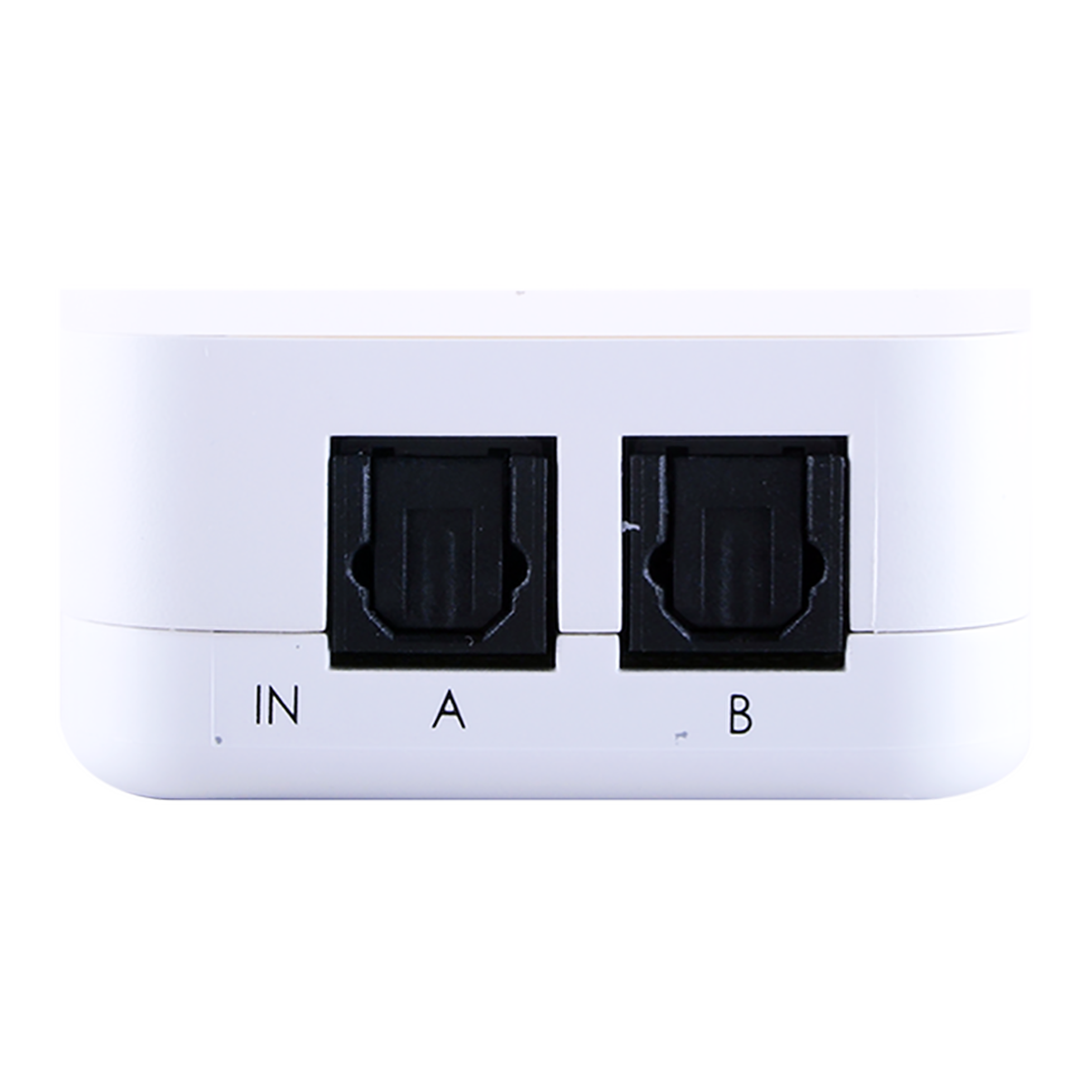

Audio Input Type:
Optical

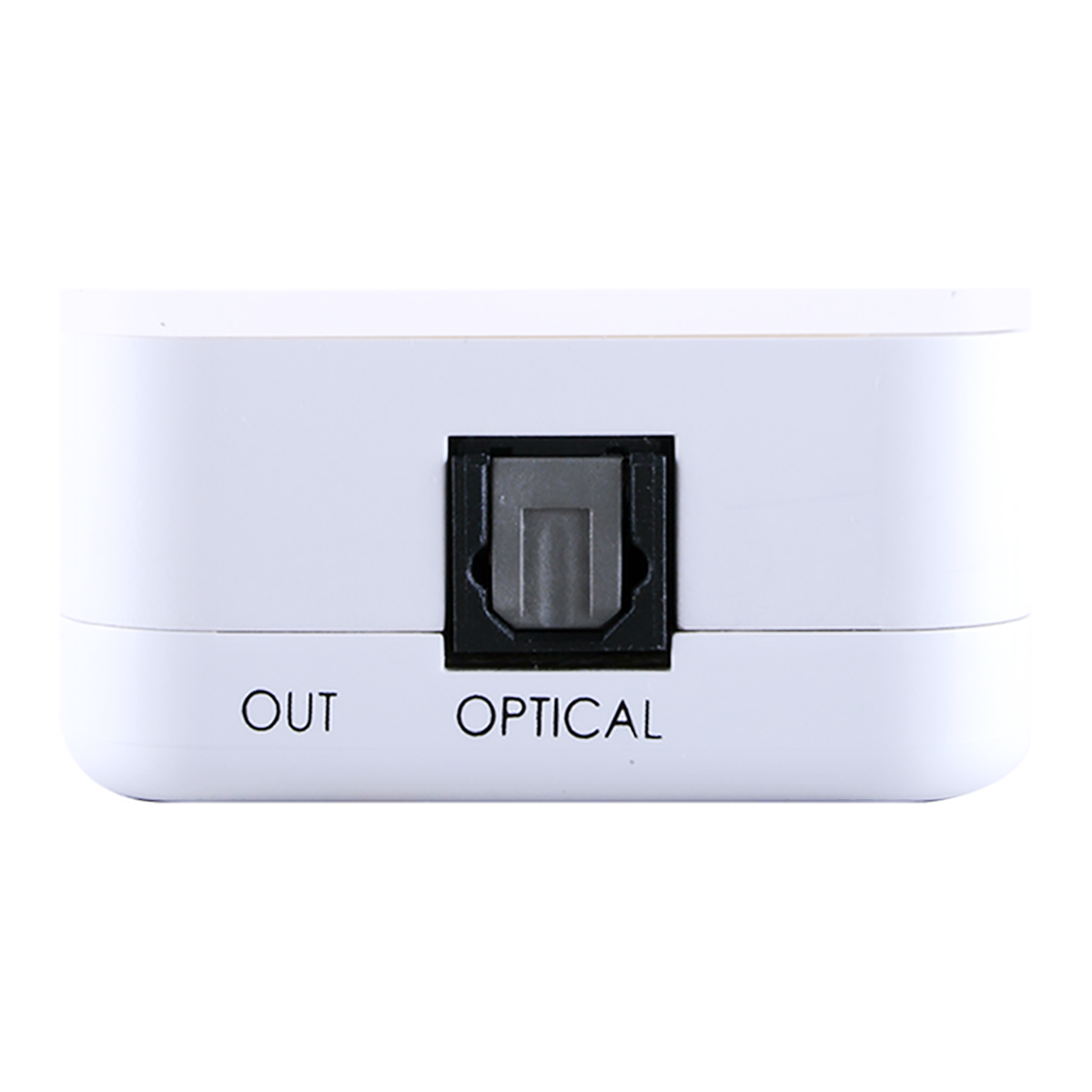

Audio Output Type:
Optical
Number of Ports:
2
Power
Current Rating:
0.5A
Dimensions
Width:
4.6cm
Depth:
4.5cm
Height:
2.3cm
Weight:
22g
Other
Voltage Rating:
5V DC
Standards Met:
CE, FCC Compliant, UL Certified
