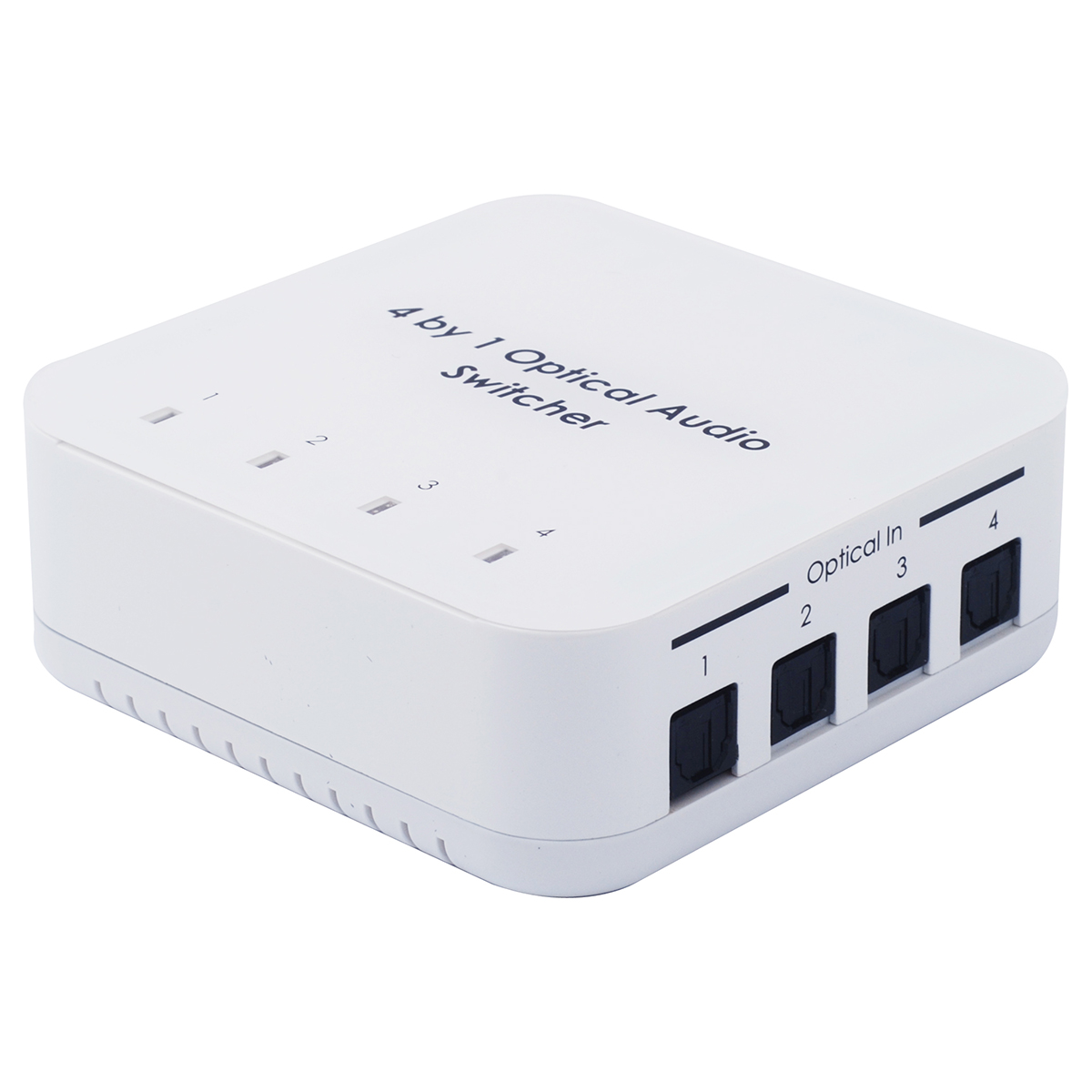

DCT-17 4x1 Optical Audio Switcher
Please sign in so that we can notify you about a reply

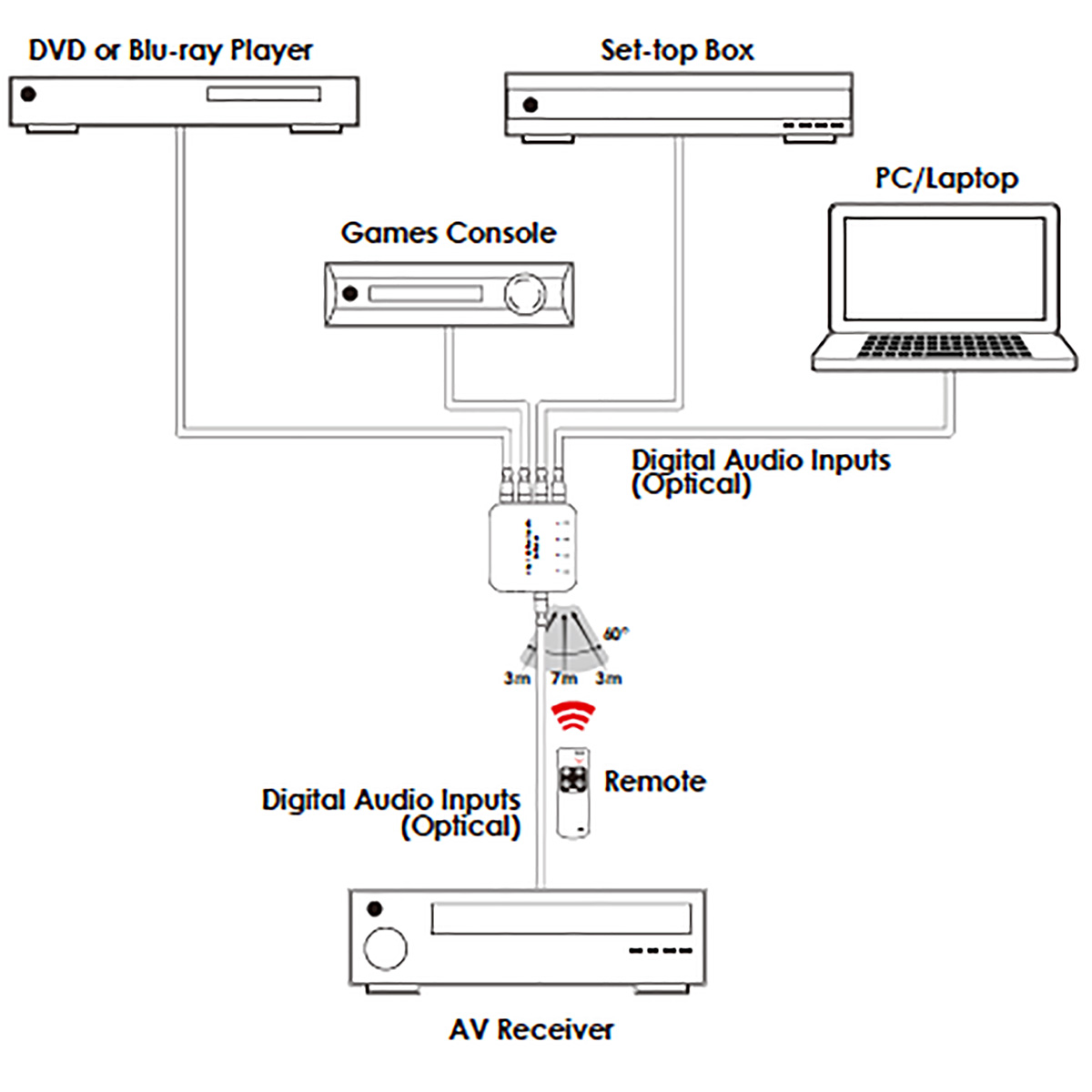

The 4 by 1 Optical Audio Switcher has four optical inputs and one optical output and allows users with multiple optical sources to switch between sources without delay. The device has a built-in last memory function and IR remote control which provides a more user-friendly experience.
Features
- Optical sampling rate supports up to 192 kHz
- Low power consumption
- Up to 24-bit resolution
Brand:
Cypress Technology
Product Type:
Optical Audio Switcher
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Optical Sampling Rate Supports Up to 192kHz, Low Power Consumption, Up to 24bits Resolution
Applications:
High Performance Stereo Systems, Home Theatre Systems, Audio Showroom, Presentation System
Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Signal-to-Noise Ratio:
>90dB
Signal Level:
Up to 192kHz
Frequency Rating:
±1dBFS
K-Factor:
<0.01%
Differential Gain:
<0.01%
Inputs and Ports
Audio Input Type:
Optical
Audio Output Type:
Optical
Number of Ports:
4
Power
Power Connector:
5V/1A DC
Current Rating:
1A
Dimensions
Width:
8.5cm
Depth:
8.5cm
Height:
3.5cm
Weight:
90g
Other
Voltage Rating:
5V DC
Standards Met:
CE, FCC Compliant, UL Certified
