iSound 1616D 16x16 Digital Sound Processor with Dante, 35W, Metal, 110 to 240V AC
Please sign in so that we can notify you about a reply
INFOBIT's DTX-1616D is a Dante enabled, digital audio DSP with Analog I/O. This fully networked professional audio product is ideal complement to INFOBIT's iSwitch Video over IP solutions for House of Worship, Bars and Restaurants, Conferencing, and Education markets. The iSound ecosystem of products are purpose built to deliver pristine audio throughout the network while significantly reducing traditional device count and cabling costs. The iSound products use the industry-leading ADI 450Mhz SHARC 21489 chip and provides outstanding 24bit/48kHz audio quality.
Features- ADI SHARC 21489 processor

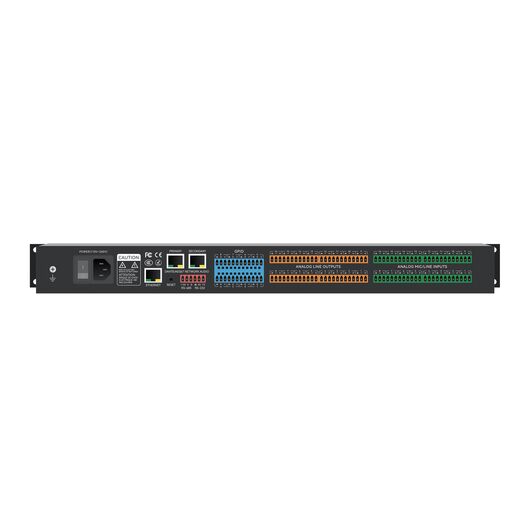

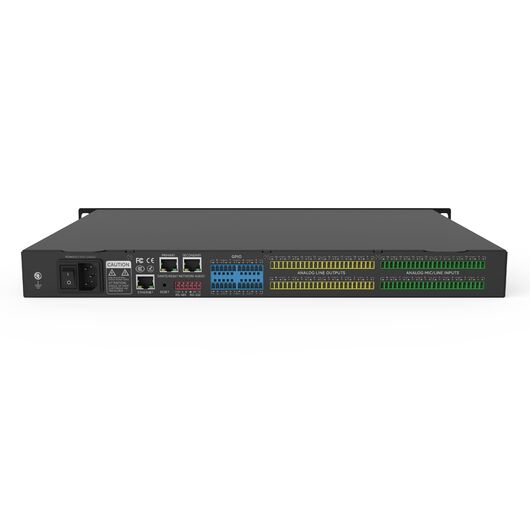

- 16 balanced microphone or line level inputs on Terminal Block connectors
- 16 balanced line level outputs on Terminal Block connectors
- 2 Dante audio interfaces on RJ-45 connectors
- 8 GPI/O multi-function ports on Terminal Block connectors
- Dante audio channels up to 16×16
- Definable GUI for managing and configurating multiple units
- All Inputs and Outputs support a full suite of audio shaping tools including graphic and parametric EQ, dynamics, ducker, delay and more
- 16 preset slots to store all configuration data for easy recall
- Built-in USB sound card for recording and playing digital audio
- DSP Configurator software tool for managing all audio operations
- Supports adaptive echo cancellation (AEC), adaptive feedback control (AFC), automatic gain control (AGC), automatic mixture control (AMC), automatic noise suppression (ANS)
- With 16x48V phantom power.
Brand:
Infobit
Channel Isolation:
108dB@1kHz
Phantom Rating:
48V
Product Type:
Sound Processor with Dante
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Dante Audio Channels up to 8×8, 16 Preset Slots to Store all Configuration Data, 24bit/48kHz Audio Quality
Dante Interface:
2 Dante Audio (RJ-45)
Power Rating:
35W
Chassis Material:
Metal
Applications:
Higher Education, Bar or Restaurant, Large or Complex Conference Rooms
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Maximum Gain:
43dB
Signal-to-Noise Ratio:
110dB
Frequency Rating:
20Hz to 20KHz
Total Harmonic Distortion:
<0.003% (1 kHz, +4 dBu)
Sampling Frequency:
48kHz
Audio Dynamic Range:
113dB (Analog), 115dB (Dante)
A/D and D/A Conversion Type:
24bit
Input Impedance Rating:
9.4kΩ(Balanced)
Inputs and Ports
Input Port Type:
16 Analog Audio (Terminal Block)
Output Port Type:
16 Analog Audio (Terminal Block)
Interface Type:
RJ45
Serial Connector Type:
RJ45
Power
Output Impedance Rating:
102Ω (Balanced)
Dimensions
Width:
48.2cm
Depth:
26cm
Height:
4.5cm
Weight:
3kg
Shipping Weight:
4kg
Other
Voltage Rating:
110 to 240V AC
Standards Met:
FCC, CCC, CE, RoHS
