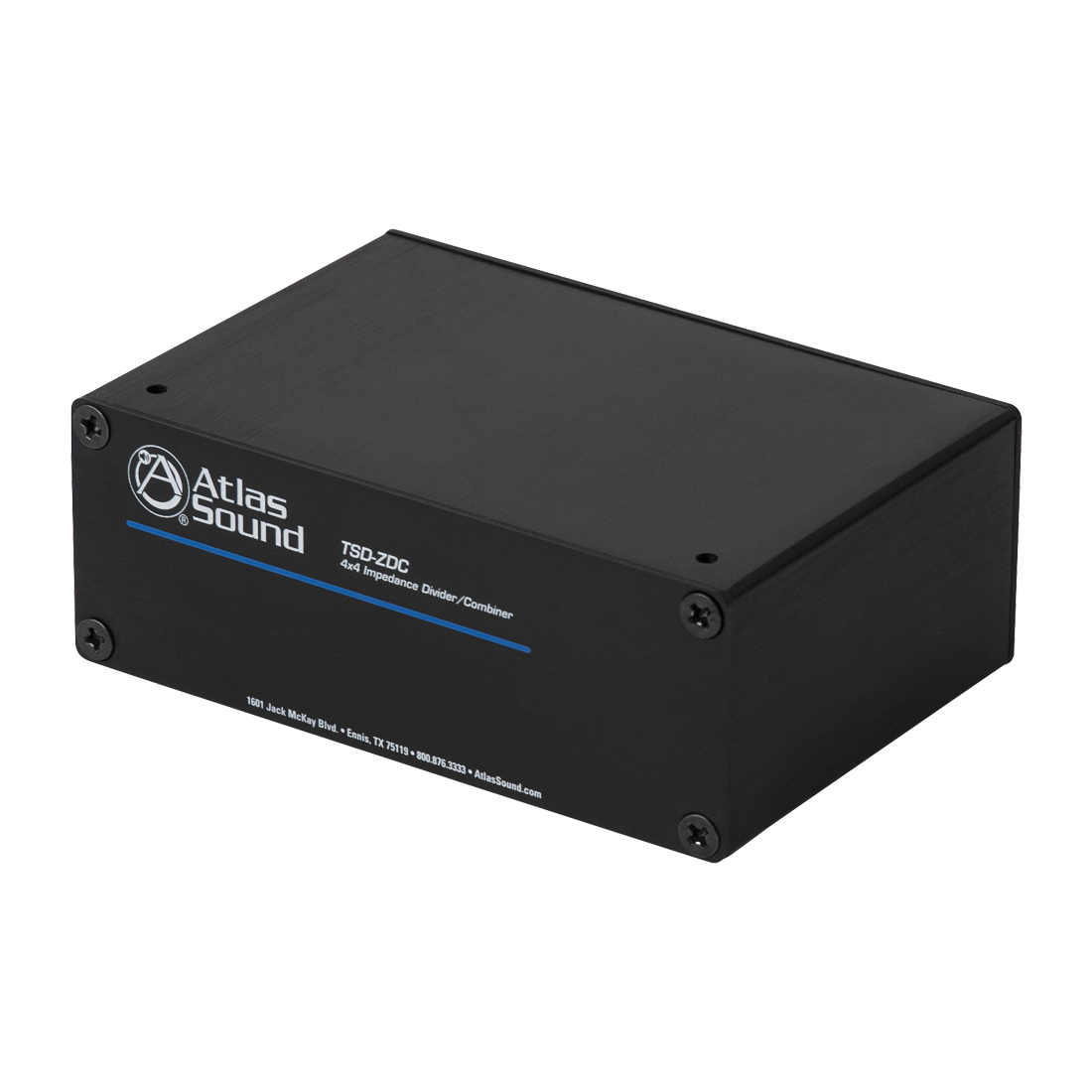

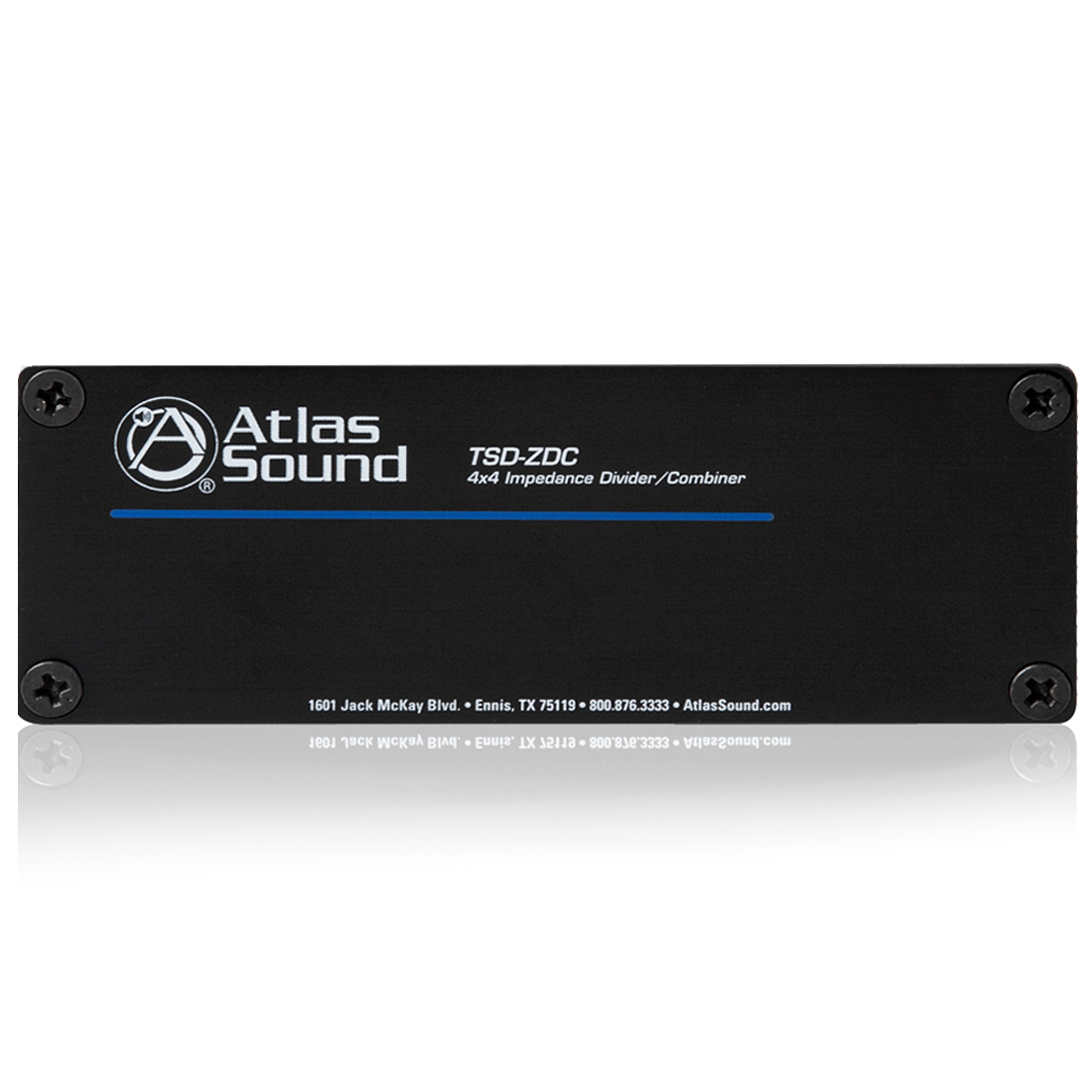

TSD-ZDC 4 x 4 Impedance Divider / Combiner
Please sign in so that we can notify you about a reply
The TSD-ZDC is a universal impedance divider/combiner for passively summing or splitting of mic or line level signals. Features include four unbalanced 10K and four balanced 150Ω inputs/outputs that may be passively split or combined in any arrangement.Typical applications include passive summation of multiple 150Ω mics or stereo 10ΩK sources and passive splitting of 150Ω or 10KΩ input sources to multiple outputs.To ease contractor use and installation the TSD-ZDC includes individual ground connectors for each input/output. The unit's compact footprint allows for easy standalone mounting or an optional rack mount adapter may be used to facilitate up to (4) TSD devices.
Features
- Four (4) 150Ω Stereo Input/Outputs
- Four (4) 10K Stereo Input/Outputs
- Split or Combine Any Signal
- RF Filtering on All Inputs
- Individual Input Grounds

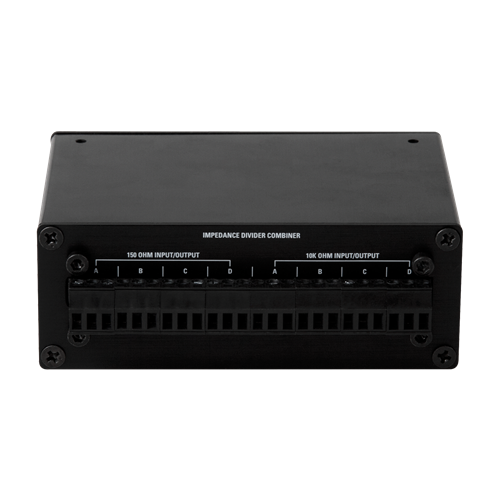

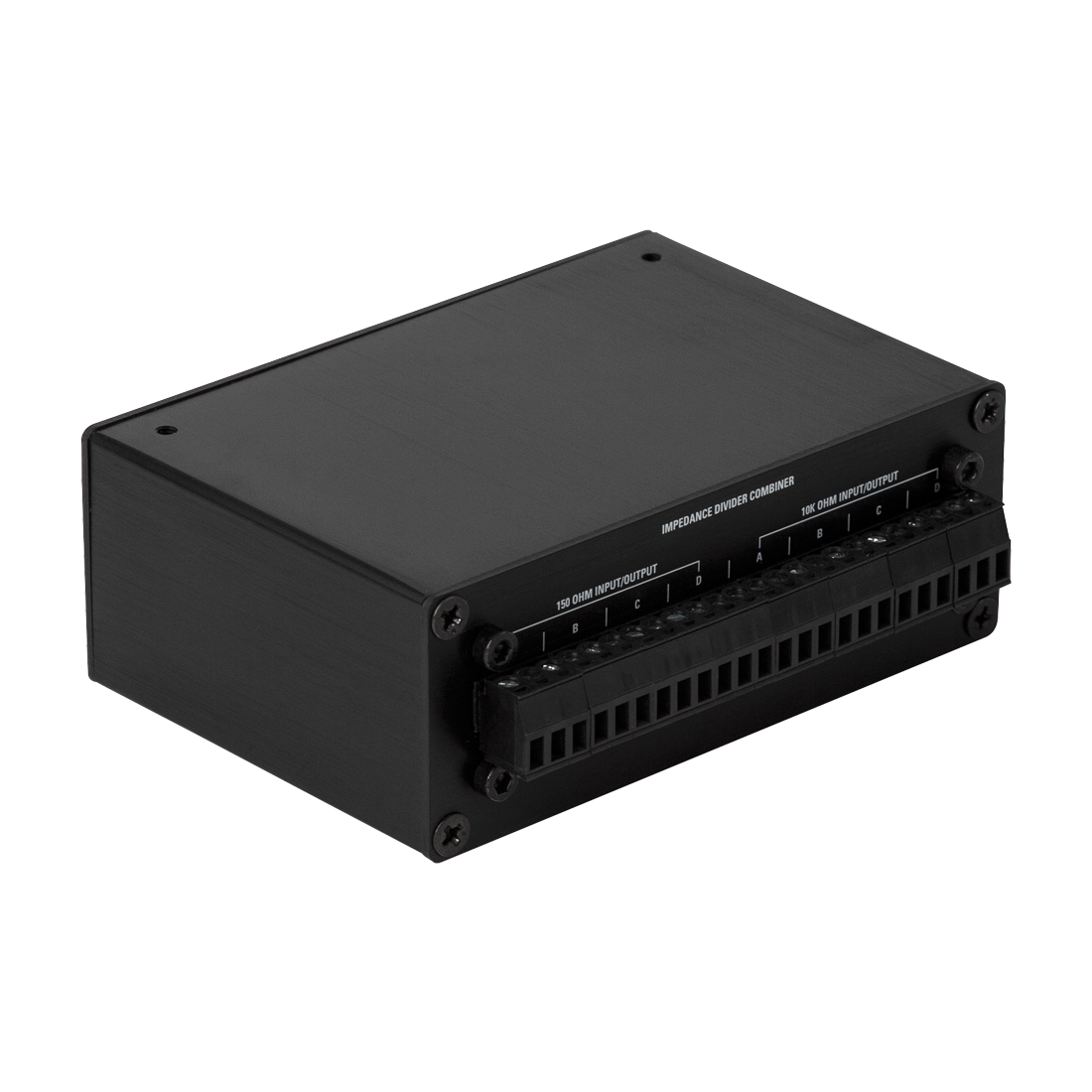

- Removable I/O Connectors
- No External Power Required
Brand:
Atlas IED
Product Type:
4x4 Impedance Divider/Combiner
Specifications
Colour:
Black
Special Features:
Individual Input Grounds, Removable I/O Connectors
Chassis Material:
Aluminium
Applications:
Government Building, Medical Facility, Office Environment, Church, Restaurant, School, Industrial Facility, House of Worship
Performance
Frequency Rating:
20Hz to 20KHz
Power
Output Impedance Rating:
150Ω (Unbalanced)
Dimensions
Width:
10.1cm
Depth:
6.3cm
Height:
3.8cm
Weight:
0.1kg
