AZM8 8-Zone Audio Processor, 100 to 240V AC, 0 to 60dB, 3.9KΩ
Please sign in so that we can notify you about a reply

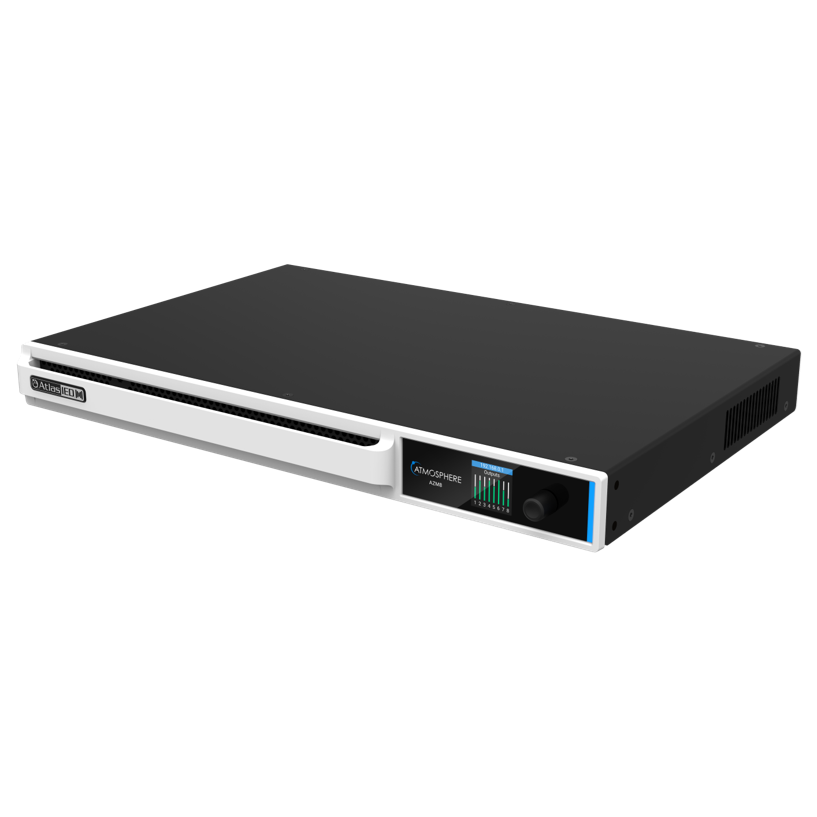

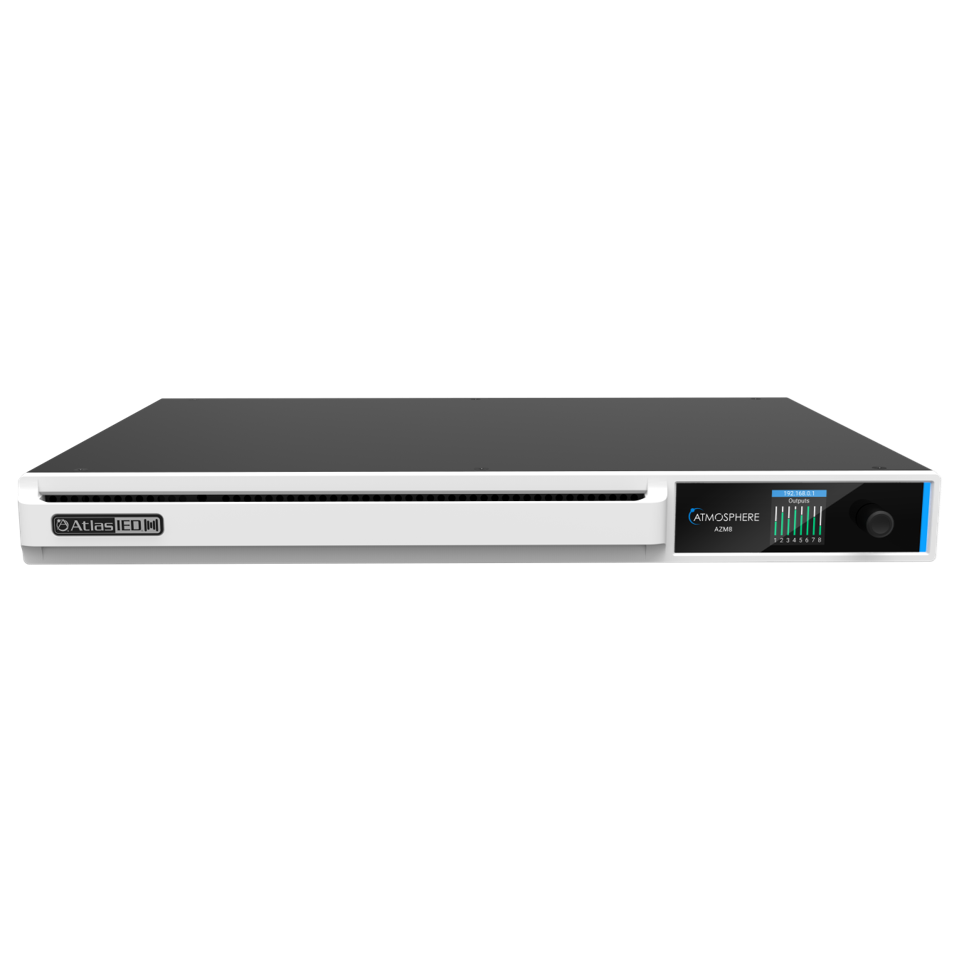

The Atmosphere AZM8 is an 8-zone audio processor and the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces. A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter™, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZM a processing powerhouse. The AZM8 is compatible with all six of the Atmosphere wall plate accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 4 accessory ports on the AZM8. Additionally, a zone paging station can be added as an accessory. Each port is designed to work reliably up to 1000ft.Programming is simple through a modern on-board web interface, optimized around common use-cases. Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom. In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZM8.
Features- 4 accessory ports that support up to 16 controllers & sensors, and 4 audio wall plates (1 per port).
- App-less virtual wall controller access via QR code or distributed URL
- Bell Scheduler
- Message player
- Room combine and groups
- Mono, stereo, and subwoofer support
- Auto noise compensation
- Loud Noise Detection
- On board WIFI to use as an access point or connect to existing Wi-Fi network
- Large library of AtlasIED speaker presets
- Accessory self-heal
- High Priority GPI input for integration with alarm system
- Wide selection of audio DSP objects
- Third Party Control
Brand:
Atlas IED
Product Type:
8-Zone Audio Processor
Product information
Screen Type:
128x128 Colour TFT
Specifications
Input Gain:
0 to 60dB
Input Impedance:
3.9kΩ
Maximum Hardware Gain:
60dB
Number of Zones:
8
Power Rating:
75W
Applications:
Restaurant / Bars, Houses of Worship, Offices, Industrial, Education, Corporate Centers
Operating Temperature Range:
0 TO +40°C
Performance
CMRR:
65dB
Sensitivity:
+4dB
Frequency Rating:
20Hz to 20KHz
Total Harmonic Distortion:
<0.01%
Crosstalk Level:
>-78dB@1kHz

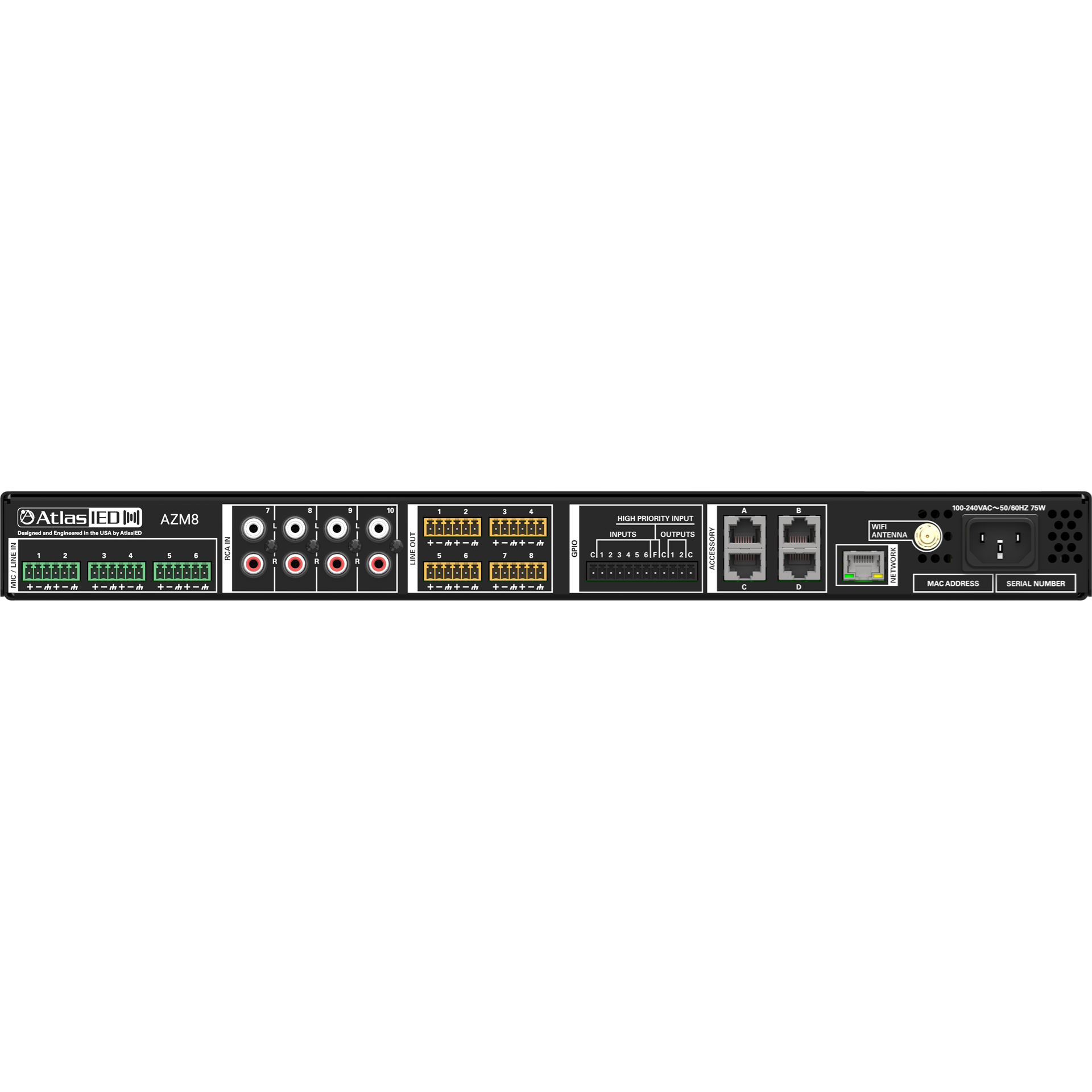

Inputs and Ports
Number of Sources:
14
Dimensions
Weight:
8.3cm
Width:
48.3cm
Depth:
29.7cm
Height:
4.5cm
Shipping Weight:
48kg
Other
Voltage Rating:
100 TO 240V AC
Standards Met:
ANSI / UL 62368-1, : CAN / CSA C22.2 #6236, FCC Part 15 (Class B) (US), ISED ICES-003
No reviews found
