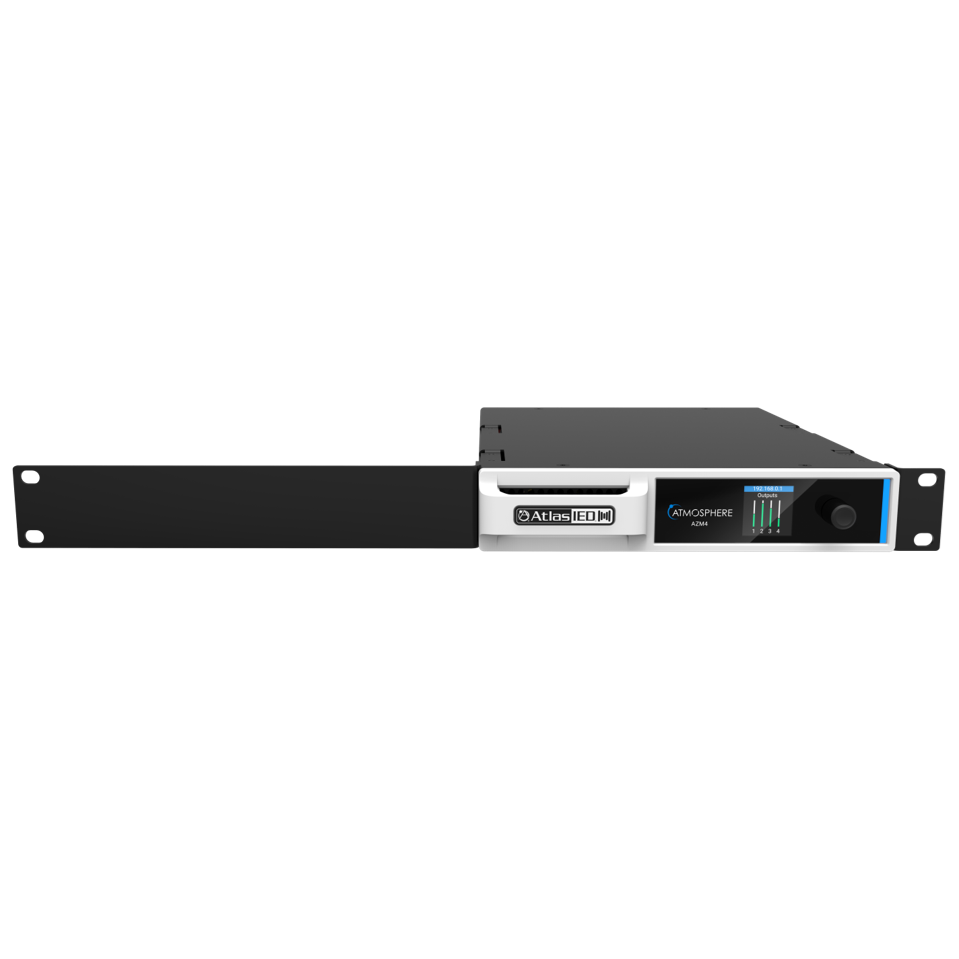

AZM4 4-Zone Audio Processor, 100 to 240V AC, 0 to 60dB, 3.9KΩ
Please sign in so that we can notify you about a reply
The Atmosphere AZM4 is a 4-zone audio processor and the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces. A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter™, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZM a processing powerhouse for automated audio system control. The AZM4 is compatible with all six of the Atmosphere wall plate accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 2 accessory ports on the AZM4. Additionally, a zone paging station can be added as an accessory. Each port is designed to work reliably up to 1000ft.Programming is made simple through a modern on-board web interface, optimized around common use-cases. Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom. In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZM4.
Features- 2 accessory ports that support up to 16 controllers & sensors, and 2 audio wall plates (1 per port)
- App-less virtual wall controller access via QR code or distributed URL
- Bell Scheduler
- Message player
- Room combine and groups
- Mono, stereo, and subwoofer support
- Auto noise compensation
- Loud Noise Detection
- On board WIFI to use as an access point or connect to existing Wi-Fi network
- Large library of AtlasIED speaker presets
- Accessory self-heal
- High Priority GPI input for integration with alarm system
- Wide selection of audio DSP objects
- Third Party Control
Brand:
Atlas IED
Product Type:
4-Zone Audio Processor
Product information
Screen Type:
128x128 Colour TFT
Specifications
Input Gain:
0 to 60dB
Input Impedance:
3.9kΩ
Maximum Hardware Gain:
60dB
Number of Zones:
4
Power Rating:
40W
Applications:
Restaurant / Bars, Houses of Worship, Offices, Industrial, Education, Corporate Centers
Operating Temperature Range:
0 TO +40°C
Performance
CMRR:
65dB
Sensitivity:
+4dB
Frequency Rating:
20Hz to 20KHz
Total Harmonic Distortion:
<0.01%
Crosstalk Level:
>-78dB@1kHz
Inputs and Ports
Number of Sources:
8
Dimensions
Width:
48.3cm
Depth:
29.7cm
Height:
4.5cm
Weight:
1.8kg
Shipping Weight:
3.3kg
Other
Voltage Rating:
100 TO 240V AC
Standards Met:
ANSI / UL 62368-1, : CAN / CSA C22.2 #6236, FCC Part 15 (Class B) (US), ISED ICES-003
