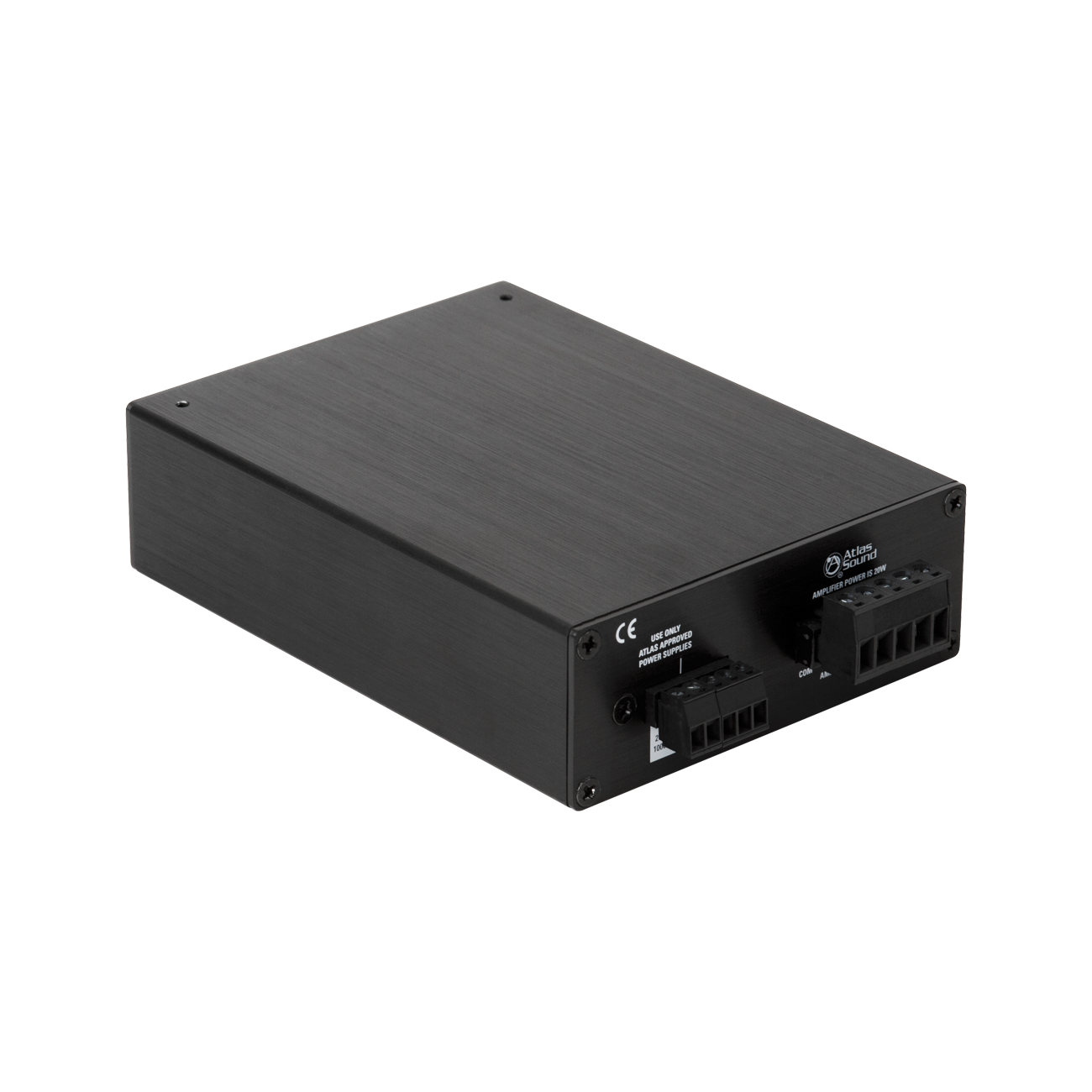

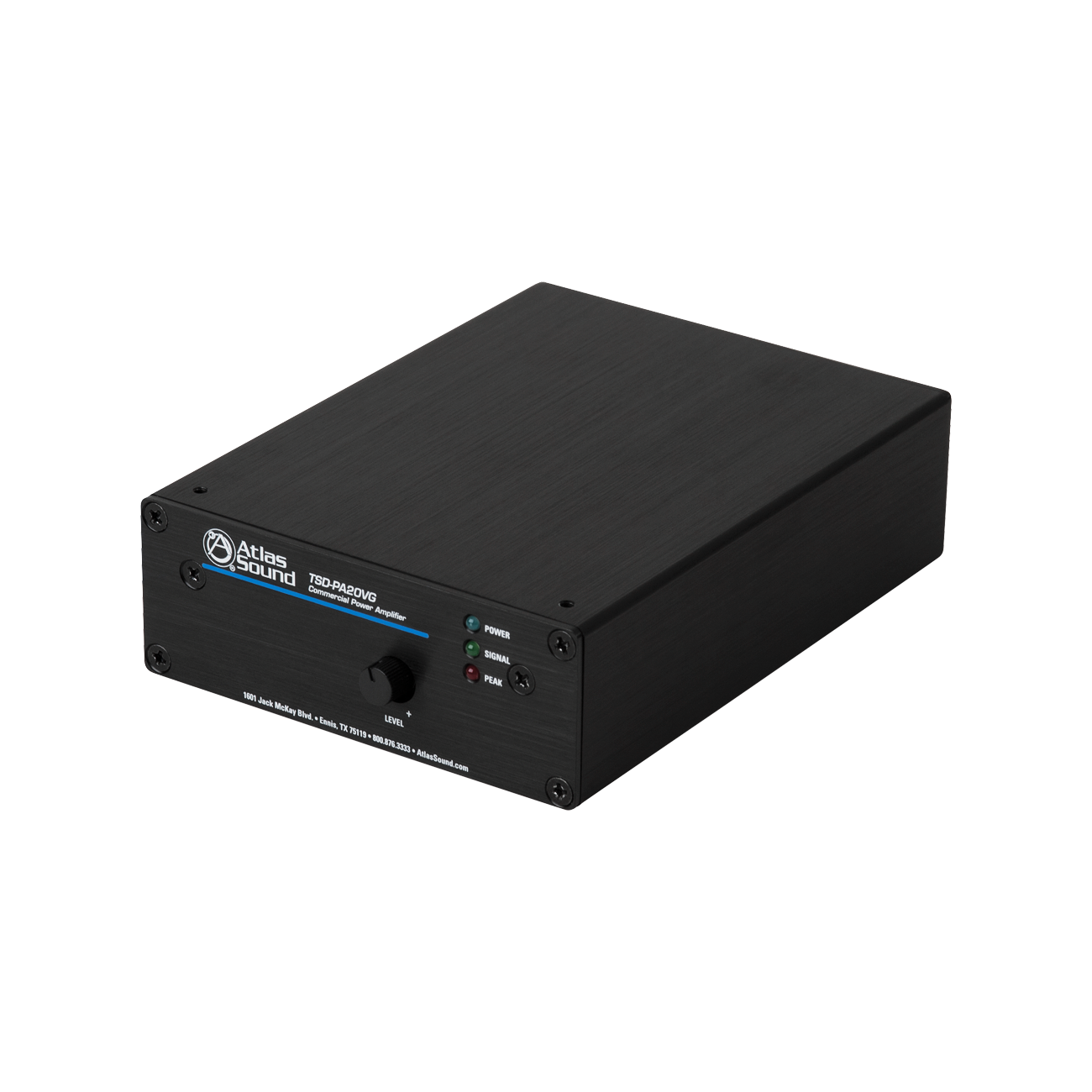

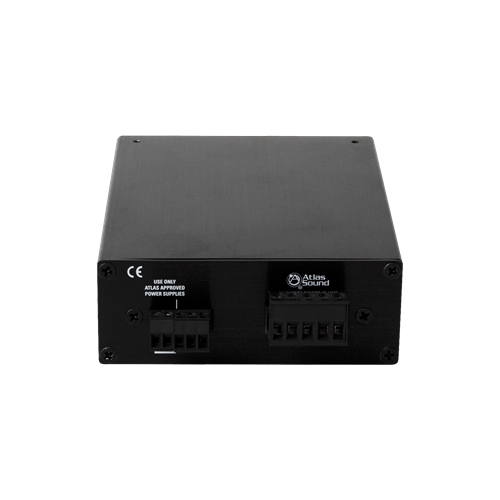

TSD-PA20VG 20W Mono 4Ω/25V/70.7V/100V Power Amplifier
Please sign in so that we can notify you about a reply
The TSD-PA20VG is a cost effective mono amplifier for 4Ω and distributed constant voltage speaker systems.Applications include hallways and classrooms.The TSD-PA20VG is also a cost effective alternative for small projector systems as it can be used with as many as (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.For sound masking applications the TSD‑PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line.Output is gain controlled from a potentiometer on the front panel with removable knob.Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. You must use the TSD24V2500MA power supply.For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Features
- 4 Ω/25 V/70.7 V/100 V output
- One (1) balanced input
- Removable level control with set-it-and-forget-it security cover
- Input signal and peak indicator LED
- Cable management system
- Removable phoenix style i/o connectors
- Energy efficient
- Compact chassis design
- Power supply sold separately
Brand:
Atlas IED
Product Type:
Power Amplifier
Specifications
Number of Channels:
Special Features:
Multiple Mounting Configurations, Separate Ground Connections
Power Rating:
20W
Applications:
Courtroom, Public Forum, Church, Restaurant, School, Industrial Facility, House of Worship
Indicator Type:
LED
Material:
Aluminium (Chassis)
Includes:
Power Supply, Rack Panel
Performance
Signal-to-Noise Ratio:
78dB
Frequency Rating:
40Hz to 20kHz
Input Impedance Rating:
10kΩ (Balanced), 5kΩ (Unbalanced)
Inputs and Ports
Number of Ports:
1 (Balanced Line Input)
Dimensions
Width:
10.1cm
Depth:
13.2cm
Height:
3.9cm
Weight:
165kg
Other
Standards Met:
CUL, CE, RoHS, TUV
