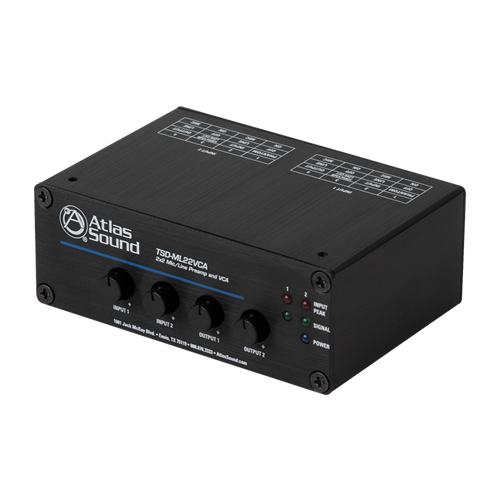

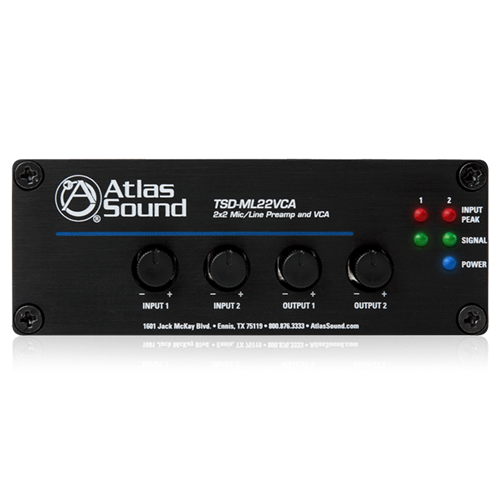

TSD-ML22VCA 2 x 2 Mic/Line Preamp and VCA
Please sign in so that we can notify you about a reply
The TSD-ML22VCA is a 2 input, 2 output true VCA with enhanced features including a high quality microphone pre amplifier. VCA's inserted prior to amplification provide a far more efficient solution than transformer-based attenuators for volume adjustment in high power music applications. The dual channel design can provide level control for two separate discrete zones or stereo sources and is perfect for use in sports bars, restaurants, hotels or other installations.The TSD-ML22VCA also provides two high quality, low noise mic pre-amps, which allow simplification of designs that require remote microphone level adjustment.Switchable phantom power is provided for powering condenser microphones and a 12dB/octave @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system ensuring focus and clarity for the voice spectrum.Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 70mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Features- True VCA for Remote Volume Control of Mic or Line Sources
- Two (2) Mic/Line Inputs
- All I/O Via Phoenix Style Connectors
- High Quality Microphone Preamp with Switchable 24V Phantom Power
- 12dB/Octave Low Cut Filter @ 125Hz
- Input Signal & Peak LEDs
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections
- Security Covers Included for All Front Panel Controls
- Energy Efficient
- Power Supply Sold Separately
Brand:
Atlas IED
Product Type:
2x2 Mic/Line Preamp and VCA
Specifications
Special Features:
Multiple Mounting Configurations, Separate Ground Connections
Power Rating:
1.68W
Applications:
Church, Restaurant, Sports Bar, School, Industrial Facility, House of Worship
Indicator Type:
LED
Material:
Aluminium (Chassis)
Includes:
Power Supply, Rack Panel
Performance
Signal-to-Noise Ratio:
85dBV (Line to Line), 70dBV (Mic to Line), 55dBV (Line to Mic, Mic to Mic)
Frequency Rating:
20Hz to 20KHz
Input Impedance Rating:
1.2kΩ (Balanced), 600Ω (Unbalanced)
Inputs and Ports
Number of Ports:
2 (Balanced Mic/Line Input), 2 (Balanced Mic/Line Output)
Dimensions
Width:
10.1cm
Depth:
7cm
Height:
3.9cm
Weight:
0.1kg
Other
Standards Met:
CUL, CE, RoHS, TUV
