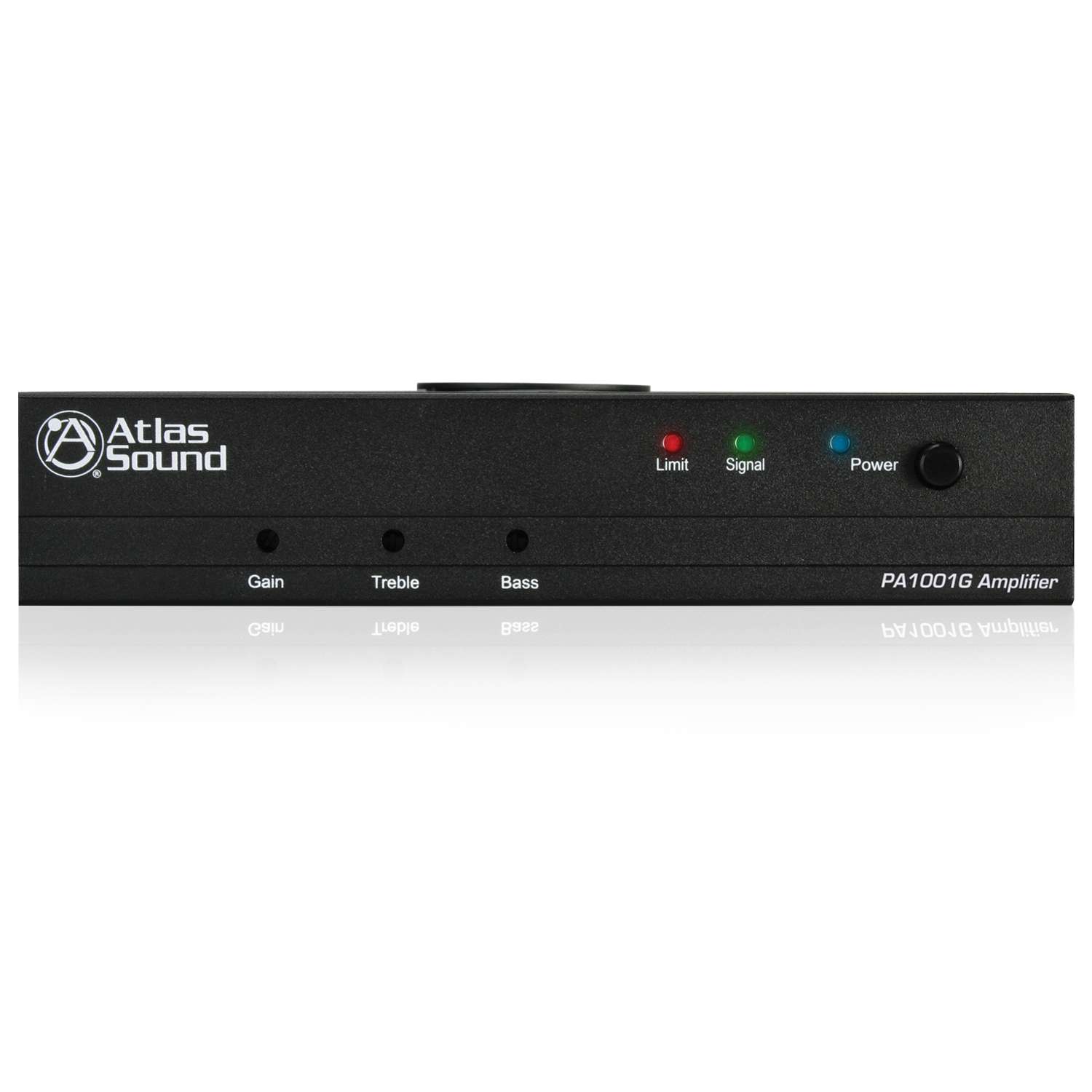

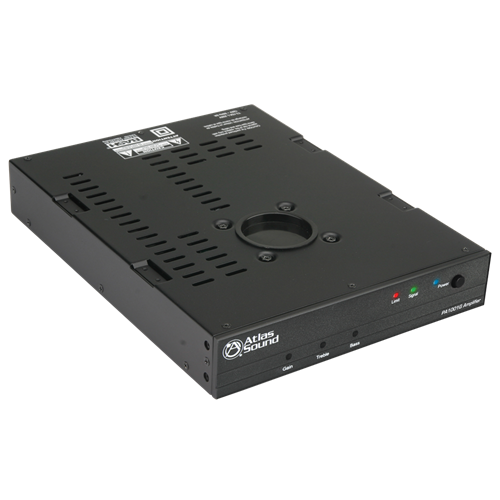

PA1001G Single Channel, 100-Watt Pole Mount Amplifier
Please sign in so that we can notify you about a reply
This amplifier features an ultra compact design requiring only 1RU in height and 1⁄2 rack wide in space.The 100W into a 70V or 100V distributed system gives the power to meet most amplifier demands.The PA1001G power supply supports 120-240VAC power for global use and operation.The patent pending through hole chassis design makes it convenient to use with ceiling mounted video projectors.One or two units can be rack mounted also allowing it to be used in more traditional applications.
Features- 100W x 1, 70V/100V
- Ultra Efficient Amplification Technology
- Patent Pending, Through Chassis Mounting System for Use with Pole Mounted Projector Systems
- Multi Voltage Power Supply Allows for Worldwide Operation

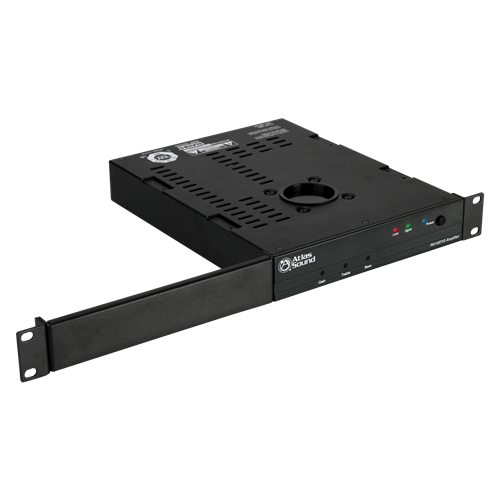

- Optional Rack Mount Kit - PA702-RMK
Brand:
Atlas IED
Product Type:
Pole Mount Amplifier
Specifications
Number of Channels:
Special Features:
Compact 1RU, ½ Rack, Global Power Supply
Power Rating:
165W
Indicator Type:
LED
Performance
Amplifier Class:
Class AB
Signal-to-Noise Ratio:
-100dB
Frequency Rating:
30Hz to 20kHz (No Hi-Pass Filter), 100Hz to 20kHz (Hi-Pass Engaged)
Input Impedance Rating:
20kΩ (Balanced), 10kΩ (Unbalanced)
Input Sensitivity:
50mV (RCA Unbalanced), 50 to 320mV (Adjustable), 320mV (Balanced)
Inputs and Ports
Number of Ports:
2 (Unbalanced Summing Line Level Input), 1 (Balanced Mic/Line/Tel Input)
Dimensions
Width:
21.6cm
Depth:
29.2cm
Height:
4.5cm
Weight:
2.2kg
