PA−240Z is a high−performance, selectable Hi−Z (70V/100V) or Lo−Z (4Ω/8Ω) power amplifier featuring balanced and unbalanced inputs and additional line−level output. This versatile amplifier features built−in DSP, auto−standby and maximum durability. PA−240Z is suitable for a vast range of AV installations.
Features
- High–performance Amplifier — With built–in DSP and additional balanced stereo line–level output. PA–120Z features flat frequency response, unmatched sonic performance, excellent signal to noise ratio, and extraordinarily low distortion levels.

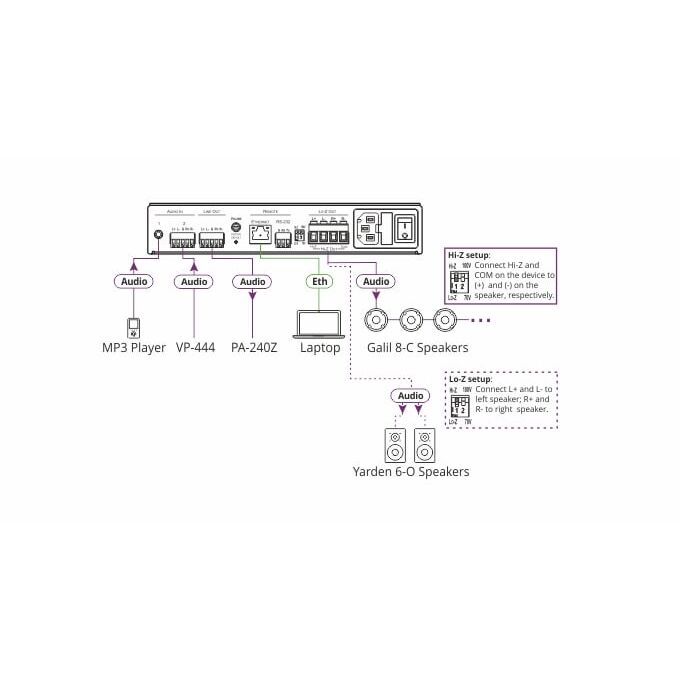

- Adaptable to Any AV Installation — Switch between Lo–Z and Hi–Z to accommodate any type of loudspeaker installation. Select 1 Channel of 120W into a 70V/100V line or 2 channels of 60W into 4Ω/8Ω.
- Individual Mix Per Output — Each output supports an independent input mix with master volume, 3–band parametric EQ, and selectable high–pass filter. Create one output mix and EQ settings suitable for the venue and another for recording or cascading more amplifiers, powered speakers or subwoofers according to any AV installation requirements.
- Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
- Durable and Reliable — PA–120Z is immune to failure. It includes layers of protection against over–current, DC voltage at the outputs, high frequency, and over–heating with intelligent, heat–sensitive fans for added protection.
- Flexible Control Options — Control locally via RS–232 serial commands or remotely via embedded web pages over Ethernet.
- Power Efficient — This super–efficient amplifier includes auto–standby for power saving and cost reducing operation. No need to rely on default auto–standby settings. Adjust your noise floor threshold based on exactly when your amplifier needs to go into sleep mode and when it needs to wake up.
- Easy Installation — ½ 19” size enables mounting in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
13-80455130
Specifications
Product Type:
Power Amplifier
Number of Channels:
Special Features:
High-Performance Amplifier, Adaptable
Power Rating:
240W
Applications:
Medium to Large Meeting Rooms, Auditoriums and Lecture Halls, Court Rooms, Retail Stores and Shopping Centres, Hotel Lobbies, Transportation Hub
Includes:
Power Amplifier, 4 Rubber Feet, Power Cord, Quick Start Guide
Performance
Amplifier Class:
Class D
Signal-to-Noise Ratio:
80dB to 10dBV
Frequency Rating:
20Hz to 20kHz@±1dB
Input Impedance Rating:
4 to 8Ω
Input Sensitivity:
Full Power@0.3V (-10dBV)
Voltage Gain:
26dB SE32dB BTL
Dimensions
Width:
21.46cm
Depth:
16.3cm
Height:
4.3cm
Weight:
0.9kg
