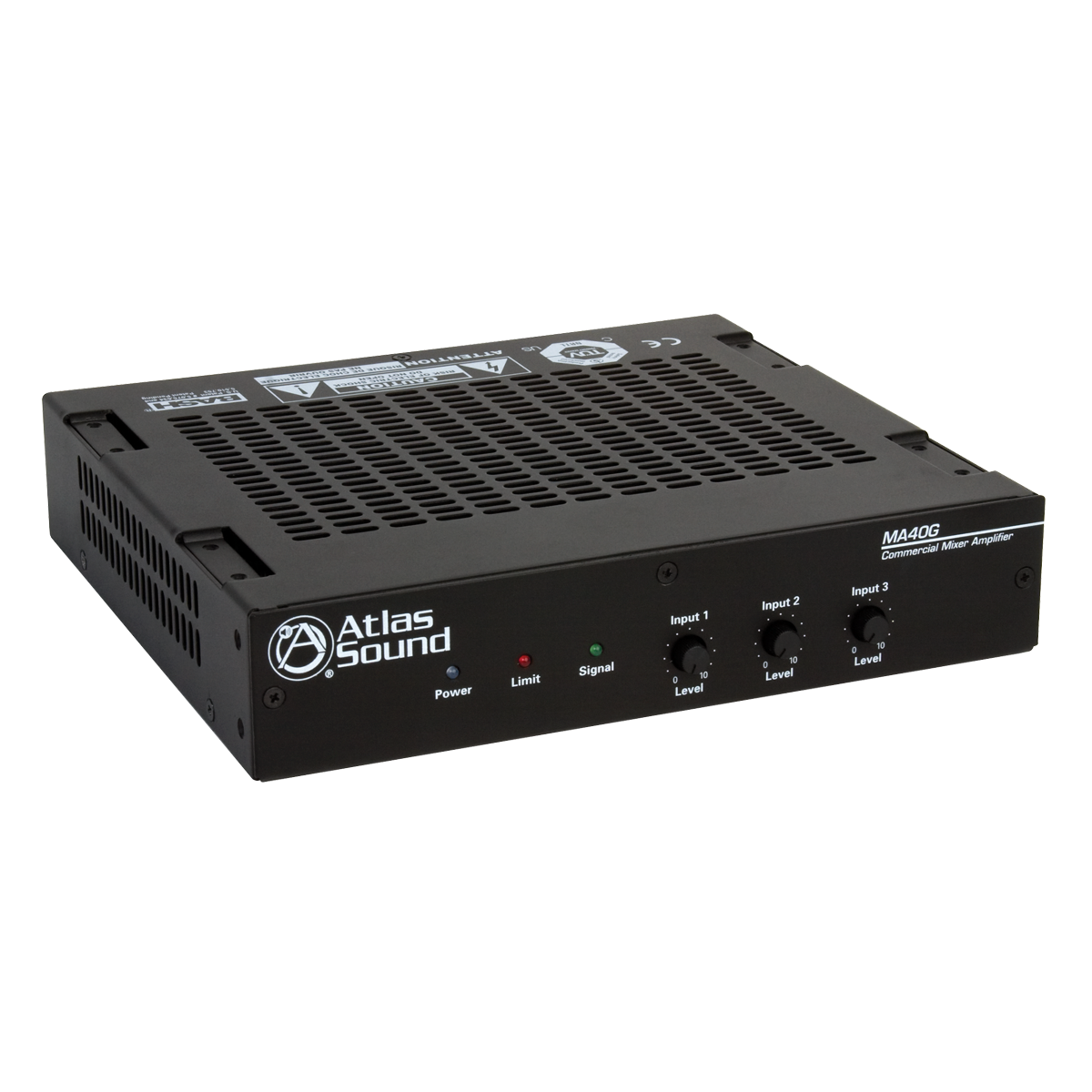

MA40G 3-Input, 40-Watt Mixer Amplifier with Global Power Supply

Small and compact, and engineered for reliability, the AtlasIED MA40G amplifier is the perfect choice for distributed business paging and background music (BGM) systems, and small to medium sound masking systems. It provides 40W into a 70.7V/100V line and has three total inputs including a balanced mic/line input featuring phantom power and variable mute sensitivity control as well as two unbalanced, summing line level inputs. Additional features include Removable Level Controls with set it and forget it security cover, contact closure mute terminals, and a global (100VAC-240VAC) power supply. The MA series of amplifiers are part of a new line from AtlasIED that are designed from the ground up and include the important features professional installation personnel require to meet or exceed their customer's expectations.

Features

  • One Balanced Mic/Line/Tel Input w/Phantom Power
  • 2 Unbalanced, Summing Line Level Inputs
  • Variable VOX Mute Sensitivity Control for Input 1
  • Contact Closure Mute Terminals
  • Global Power Supply, 100VAC-240VAC ~ 50/60Hz
  • Compact 1RU, 1/2 Rack
Brand:
Atlas IED
Specifications
Product Type:
Mixer Amplifier
Special Features:
Compact 1RU, ½ Rack, Global Power Supply
Power Rating:
71W
Indicator Type:
LED
Material:
Steel
Performance
Signal-to-Noise Ratio:
>55dB (Mic, Line)
Frequency Rating:
20Hz to 20KHz
Input Sensitivity:
3.16mV (Input 1 Mic), 500mV@600Ω (Line Input), 2/3 RCA 500mV@10kΩ (Input)
Inputs and Ports
Number of Ports:
4 (Input Mic/Line Level Analog), 4 (Output Mic/Line Level Analog)
Power
Current Rating:
0.8A
Dimensions
Width:
21.6cm
Depth:
19.8cm
Height:
4.4cm
Weight:
1.3kg
Shipping Weight:
1.4kg

MA40G 1 (ATS003838A-MA40G-MA60G-Datasheet.pdf, 144 Kb) [Download]

MA40G 2 (ATS003577E-MA40G-MA60G-Owners-Manual.pdf, 1,383 Kb) [Download]
