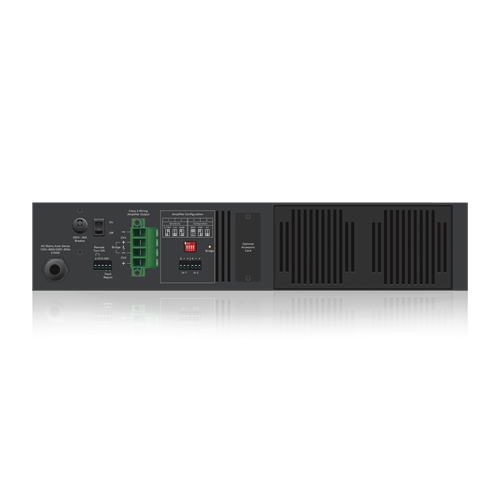

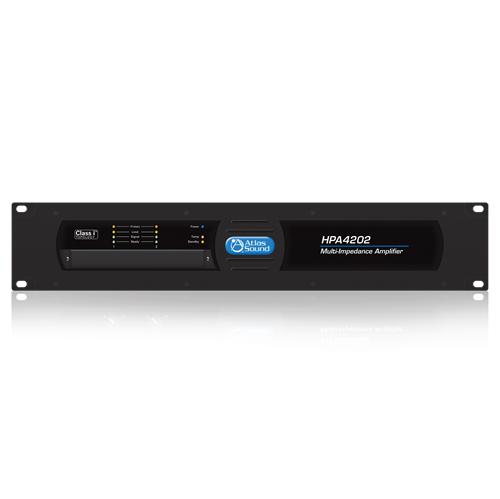

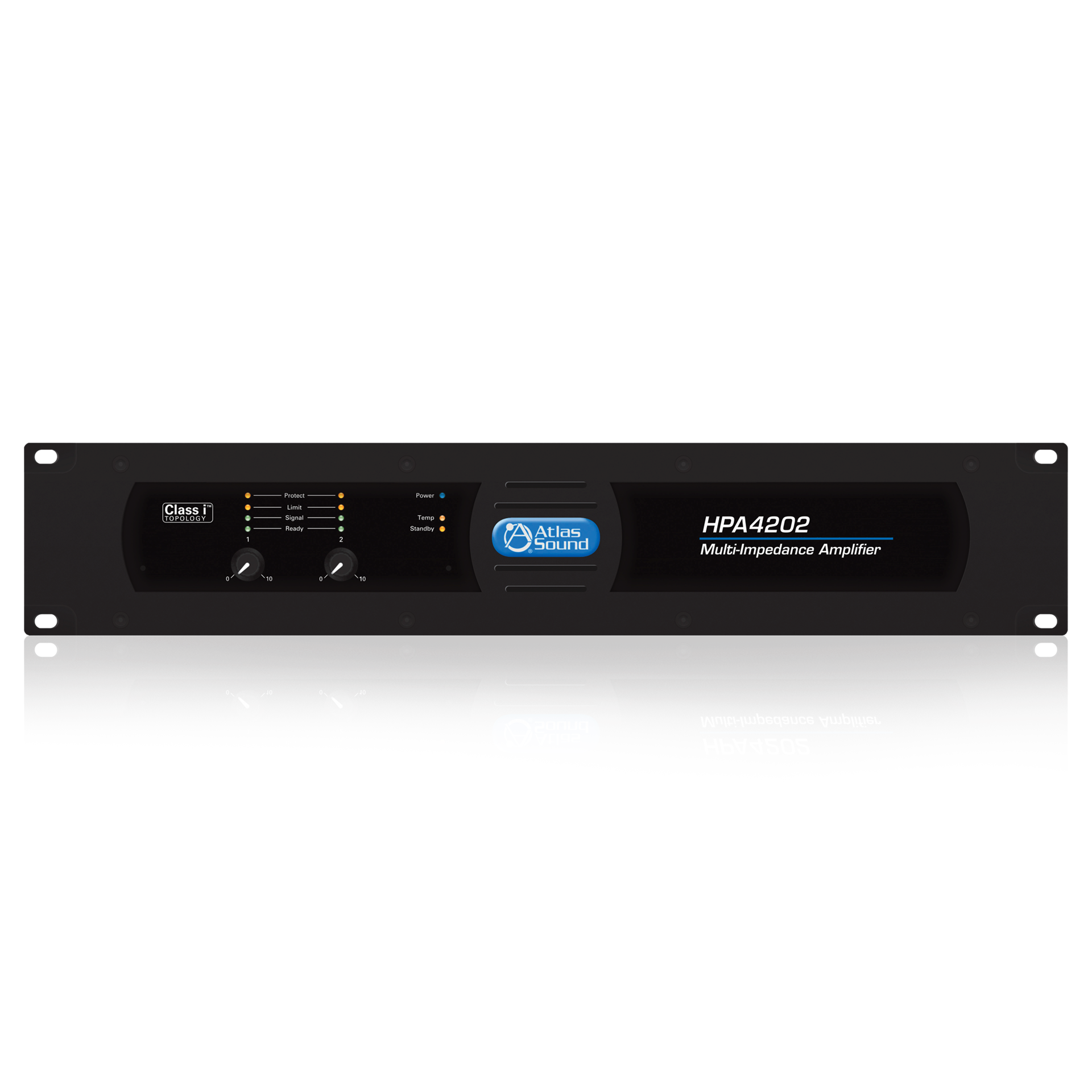

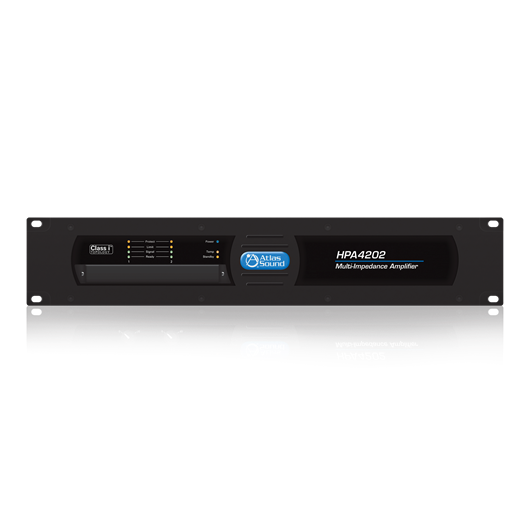

HPA4202 Dual-Channel, 4800-Watt Commercial Amplifier
Please sign in so that we can notify you about a reply
The AtlasIED High Power Amplifier “HPA” Series has been designed to be versatile for uses in both commercial 70V/100V distributed systems and professional applications that require amplifiers to handle 4 and 2 ohm loads. The HPA is compact and lightweight in comparison to other models delivering the similar power levels. The HPA Series features generation II Class I Output topology that gives the efficiency close to a Class D amplifier with the sound quality of a Class AB amplifier. The power supply is switch mode global auto sensing gen 3 design that maintains a stable output during fluxuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any speaker load.The HPA Series features front panel detented level controls with a security cover, remote turn on, balanced inputs, fault reporting and an accessory card slot for an optional Dante™ 2 or 4-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star standards with only drawing 1W of power in standby mode.Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification need.
Features- 70.7V/100V and 2Ω, 4Ω, and 8Ω Output Configurable
Brand:
Atlas IED
Product Type:
High-Power Multi Impedance Amplifier
Specifications
Number of Channels:
Special Features:
Soft Clip Limiter Protection, High Efficiency Fan Cooling
Power Rating:
1288W
Applications:
Distributed System, Professional High Performance Sound Reinforcement, Night Club, House of Worship System, Portable Sound System, Convention Center, Sports Venue, Hotel, Retail Centers
Indicator Type:
LED
Performance
Amplifier Class:
Class D
Signal-to-Noise Ratio:
>85dB
Frequency Rating:
20Hz to 20KHz
Input Impedance Rating:
20kΩ (Balanced), 10kΩ (Unbalanced)
Crosstalk Level:
>70dB
Input Sensitivity:
750mV (Balanced)
Power
Current Rating:
26A
Dimensions
Width:
48.3cm
Depth:
38.1cm
Height:
8.9cm
Weight:
13.2kg
Shipping Weight:
15.9kg
Other
Standards Met:
TUV, FCC Class A, CE, RoHS/WEEE
