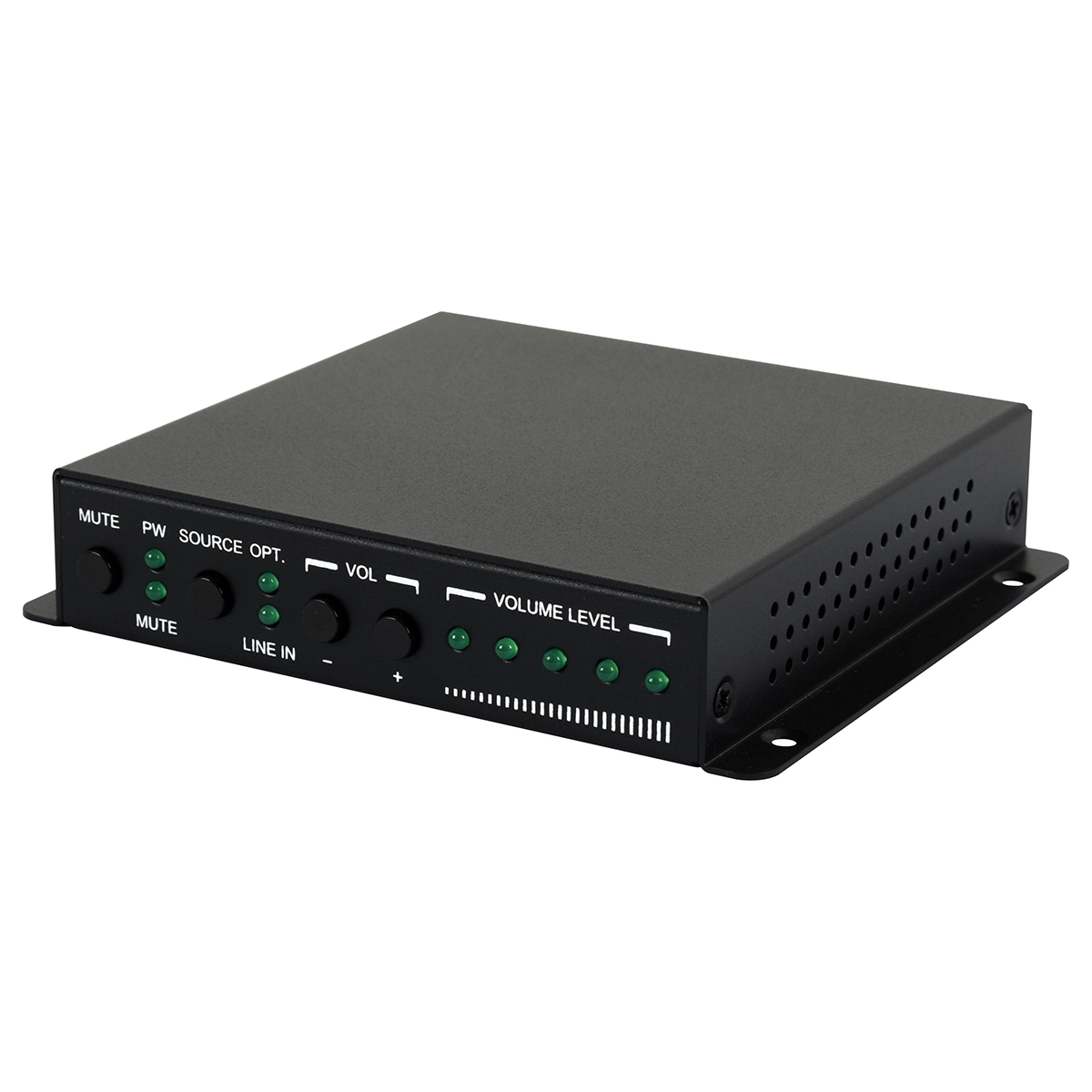

DCT-42 Digital/Analog to Speakers Audio Amplifier
Please sign in so that we can notify you about a reply

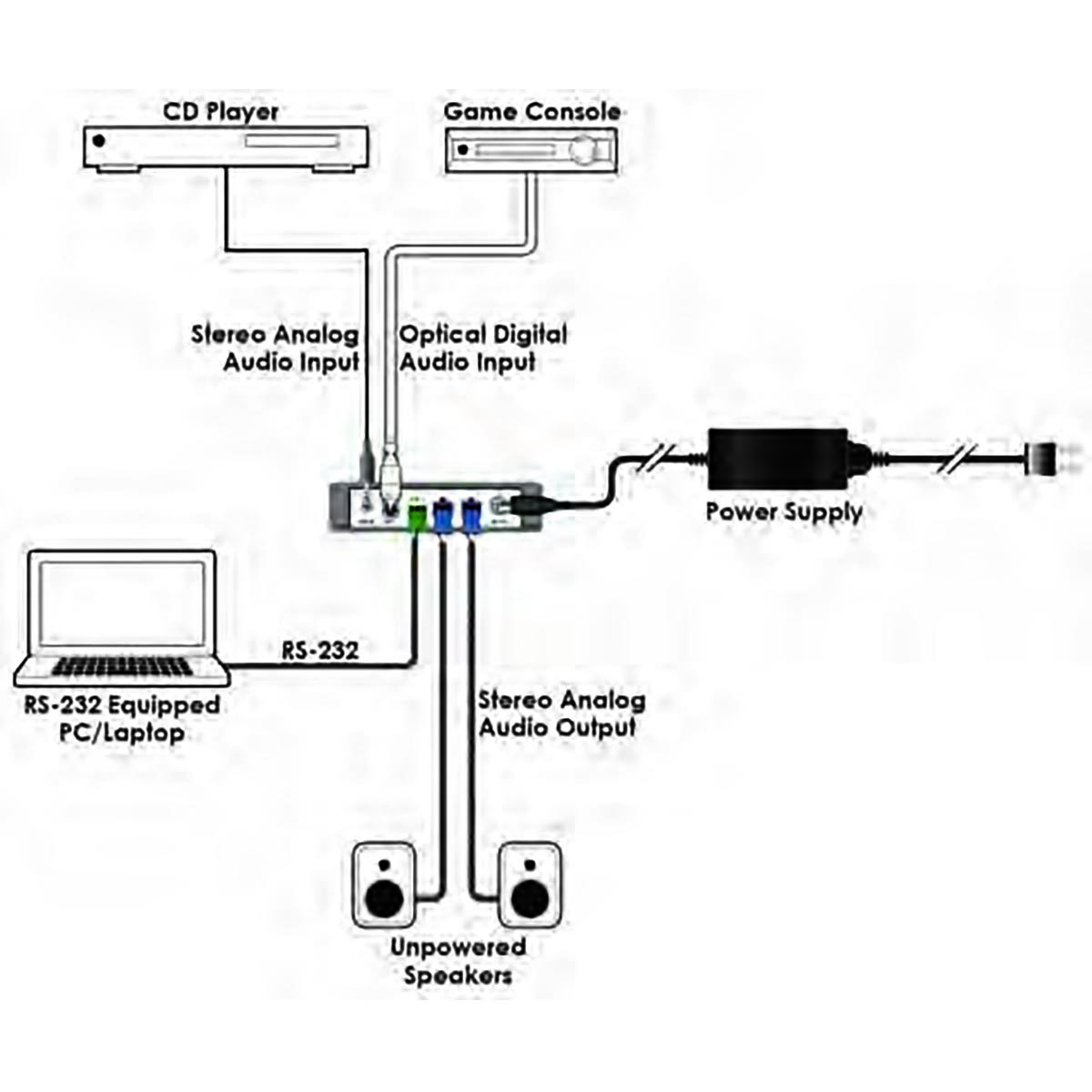

This Amplifier is a compact, high performance, Class-D amplifier which features both digital and analog inputs. Volume and input selection can be controlled via front panel buttons or RS-232. LED indicators provide selection and feature information. This unit is designed for both the commercial and residential user who needs to output a high quality source to local analog speakers.
Features
- Compact and cost-effective amplifier design
- High performance and efficient Class-D amplifier
- Selectable analog and digital audio inputs
- Volume control with mute

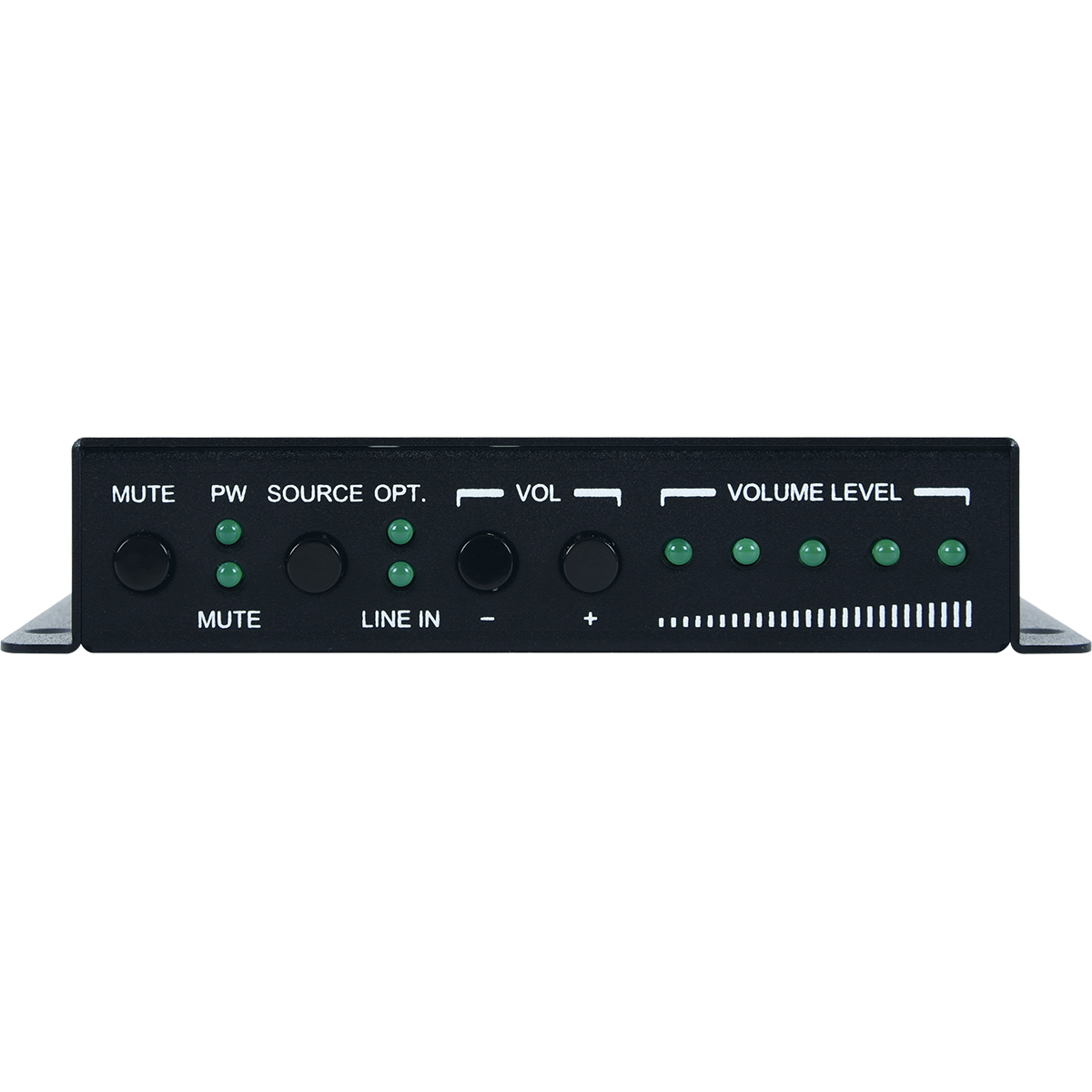

- Simple control via front panel buttons and RS-232
Brand:
Cypress Technology
Product Type:
Digital/Analog Stereo Amplifier
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Compact and Cost-Effective Amplifier Design, High Performance and Efficient Class-D Amplifier
Power Rating:
42W
Applications:
Entertainment Rooms and Home Theatres, Home Sound System Extension, Lecture Hall Presentations, Conference and Meeting Room Audio System Sharing, Showroom Audio Extension
Indicator Type:
LED
Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
-0°C
Performance
Amplifier Class:
Class D
Signal-to-Noise Ratio:
95dB
Frequency Rating:
<±0.5dB (20Hz to 20kHz)
Input Impedance Rating:
30Ω
Crosstalk Level:
80dB
Input Sensitivity:
210mV

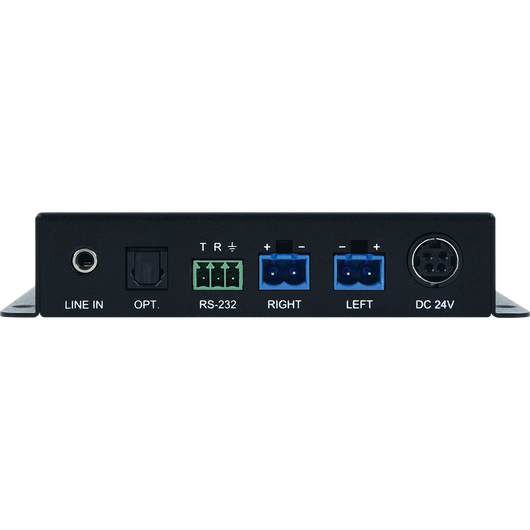

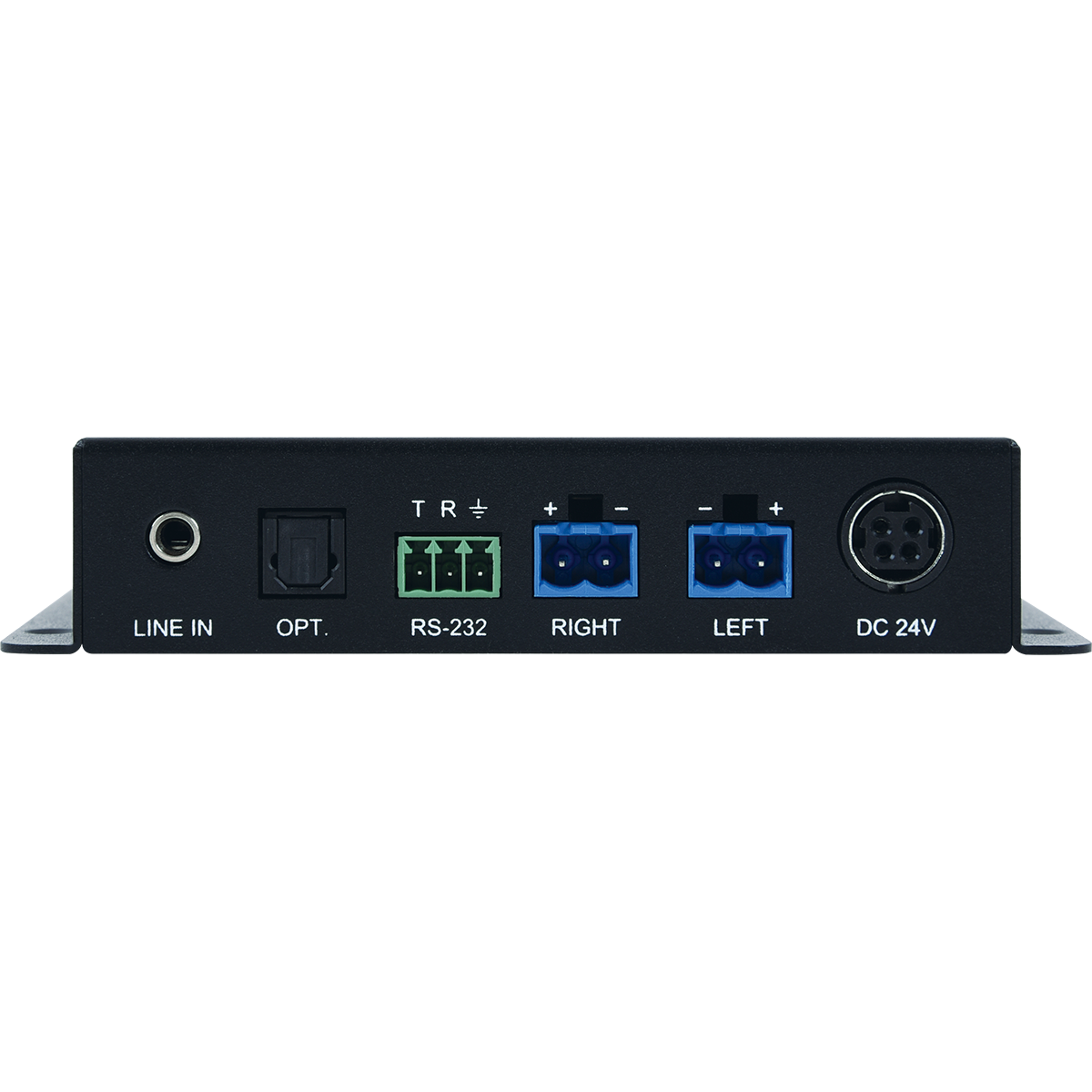

Inputs and Ports
Number of Ports:
2 (Input), 1 (Output)
Power
Current Rating:
2.7A
Dimensions
Width:
12.8cm
Depth:
11cm
Height:
2.5cm
Weight:
380g
