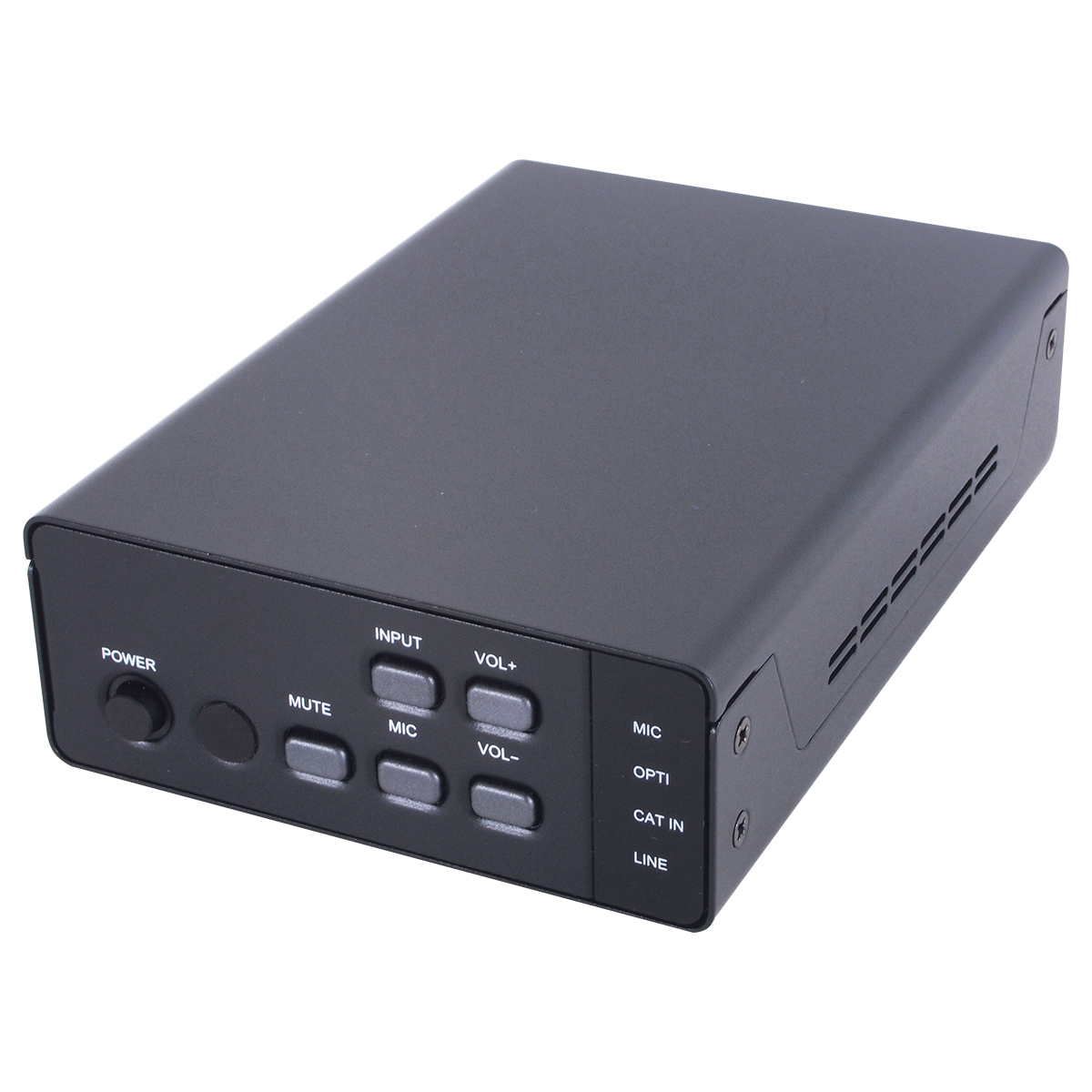

DCT-36 Amplifier with LR/Optical/CAT Input Mix with MIC
Please sign in so that we can notify you about a reply
The Amplifier with Optical/LR/CAT Input Mix with MIC is a fabulous gadget for audio mixture with vocal sound and output to analog speaker with mono or stereo sound. Allowing user with both digital and analog audio source selections along and a distance input up to 300m away. Controls like Telnet & WebGUI allow user with easy adjustment and remote over the audio setting and on-panel control with LED indication adds-on the friendly use for the device.
Features
- Supports Optical input sampling rate up to 192kHz

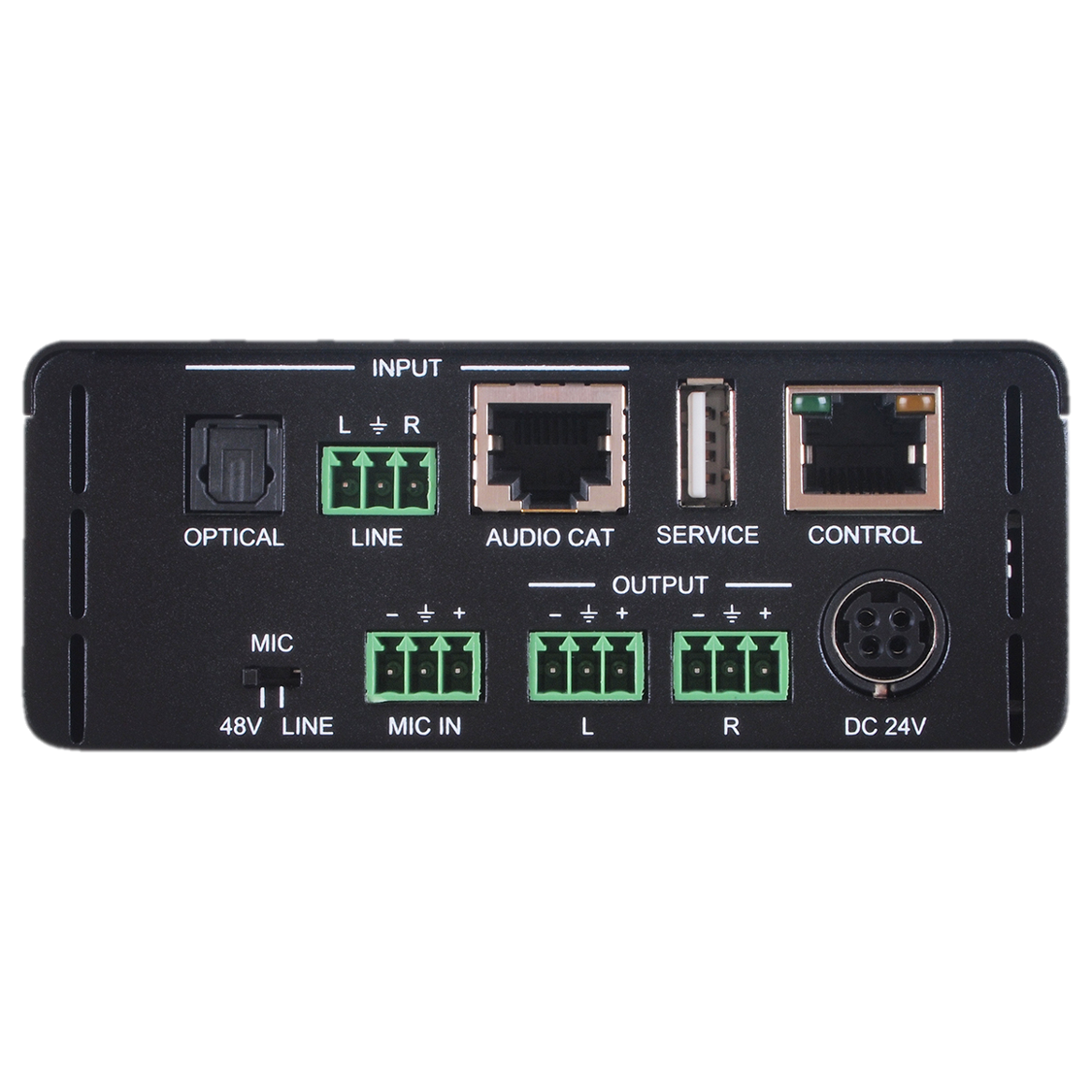

- Supports Optical, L/R, CAT inputs and 48V/Line Microphone
- Supports audio CAT input up to 300m Supports each output speaker up to 50W Output sound up to 20dB and microphone up to 18dB
- Supports Stereo or Mono output

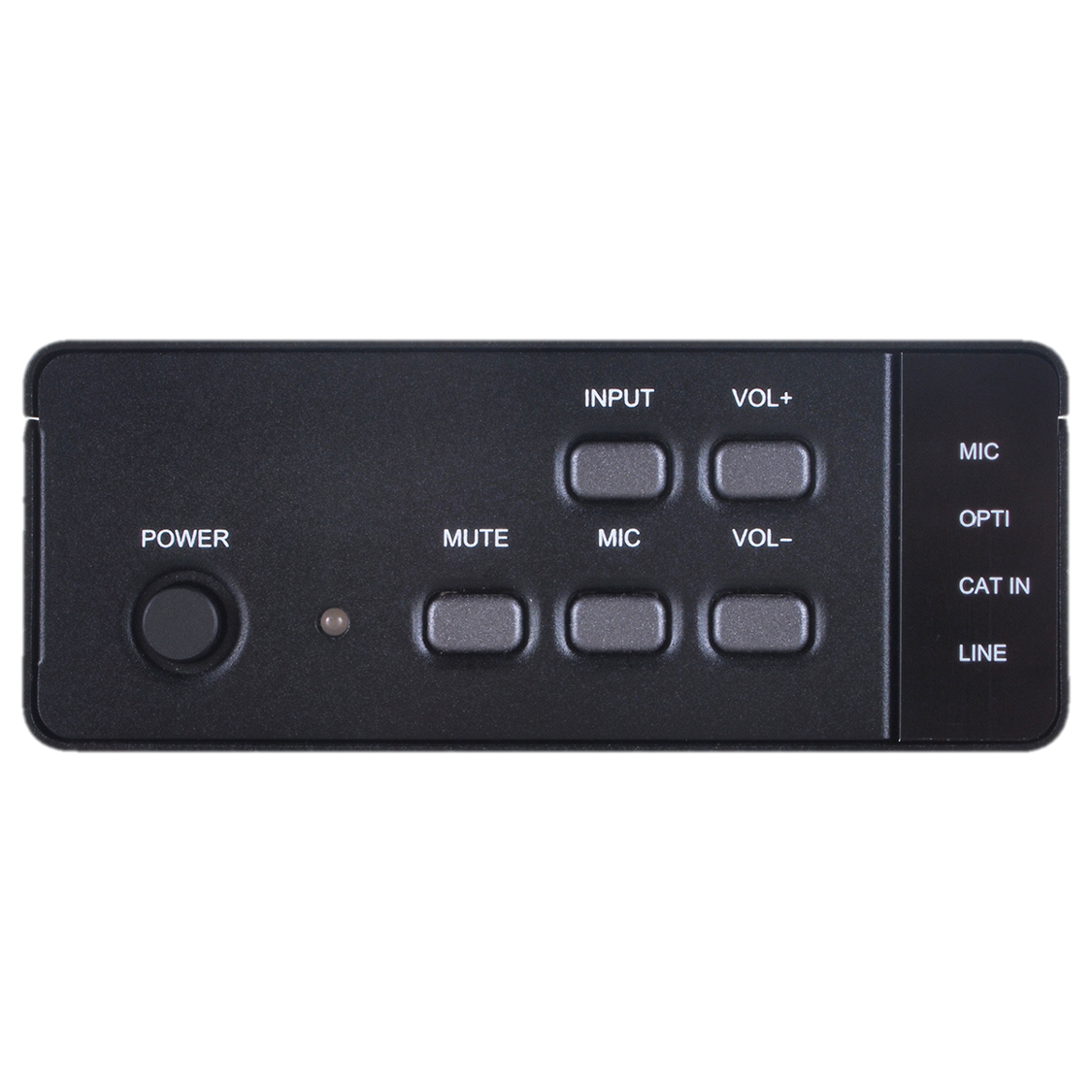

- Supports Volume control from On-panel, Telnet or WebGUI or RS232 through Audio CAT
- CAT Support RS-232 Input Control for Baudrate 115200bps
- Supports Microphone sound mix into output sound
Brand:
Cypress Technology
Specifications
Product Type:
Amplifier
Maximum Operating Temperature:
+40°C
Special Features:
Supports Optical Input Sampling Rate Up to 192kHz, Supports OpticalL/RCat Inputs and 48V Line Microphone Supports Audio Cat Input Up to 300m, Supports each Output Speaker Up to 50W Output Sound Up to 20dB and Microphone Up to 18dB
Power Rating:
58.3W
Applications:
Entertainment Room, Karaoke Show Room, Demo Room, Audio Equipment Central Control
Indicator Type:
LED
Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
-0°C
Includes:
Adaptor
Performance
Frequency Rating:
<±3dB
Crosstalk Level:
<-60dB@20Hz to 20kHz
Inputs and Ports
Number of Ports:
6 (Input), 1 (Output)
Power
Current Rating:
2.7A
Dimensions
Width:
10.95cm
Depth:
4.8cm
Height:
15.7cm
Weight:
644g
Other
Standards Met:
CE, FCC Compliant, UL Certified
