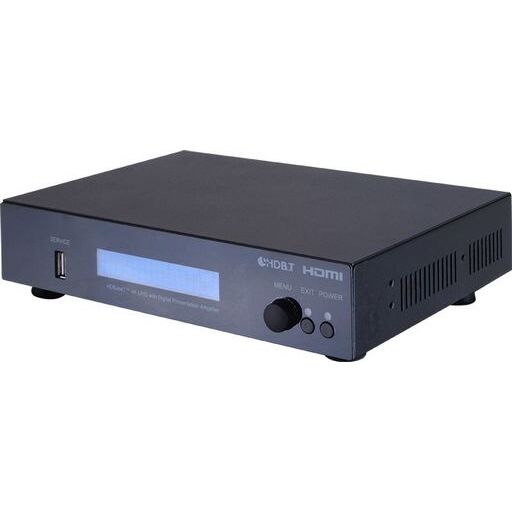

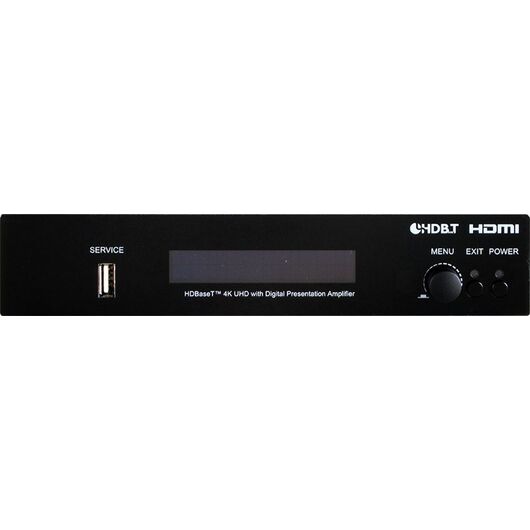

DCT-23HD Integrated Zone Amplifier, Class-D, HDBaseT
Please sign in so that we can notify you about a reply
The DCT-23 accepts analogue and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital, and HDMI with an additional microphone input. As well as speaker outputs, it boasts line level output, optical and digital outputs, and HDMI outputs for wider systems integration. Suitable for use at musical events, sound presentation and sound amplification. With audio sampling rate support up to 48 kHz and I/O data rate support up to 24-bit, it provides a high quality sound reproduction.
Features- 30 watts per channel Digital Stereo Amplifier
- Supports Digital to Analogue audio Conversion (DAC) and Analogue to Digital audio Conversion (ADC)
- HDMI Audio Embedding and de-embedding
- Supports input sampling rates up to 96kHz and output at 48kHz
- Dedicated XLR microphone input with independent volume control
- Supports microphone sound being embedded into audio output
- Simultaneous output of sound on both digital and Analogue
- Supports control via IR (Remote and IR Receiver input), RS-232 or IP (Telnet)
- Analogue line output selectable to be either fixed or variable
- Does not support the decoding of Dolby Digital signals
- Half-Rack width (9-1/2”) 1RU. 215W x 172D x 46Hmm
Brand:
Cypress Technology
Specifications
Product Type:
Integrated Zone Amplifier
Maximum Operating Temperature:
40°C
Special Features:
Supports Digital to Analog Audio Conversion (DAC) and Analog to Digital Audio Conversion(ADC), Supports Input Sampling Rate Up to 96kHz and Output At 48kHz
Power Rating:
59.4W
Applications:
Public Speech, Show Even Audio Set Up, Home Theater/Entertainment, Educational/Lecture Presentation
Indicator Type:
LED
Material:
Aluminium
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDBaseT 4K UHD with Digital Presentation Amplifier, 1xRemote Control CR-141, 1x24V/3.75A DC Power Adaptor, 1xPower Cable, 1xRack Ears Set, Operational Manual
Performance
Amplifier Class:
Class-D
Signal-to-Noise Ratio:
>70dB
Frequency Rating:
<±1dB
Input Impedance Rating:
4 to 8Ω
Crosstalk Level:
<70dB
Inputs and Ports
Number of Ports:
16
Dimensions
Width:
21.5cm
Depth:
17.2cm
Height:
4.6cm
Weight:
1060g
Other
Standards Met:
CE/FCC/UL Certified, US/EU Standards
