DCT-23A 2-Channel Zone Amplifier
Please sign in so that we can notify you about a reply

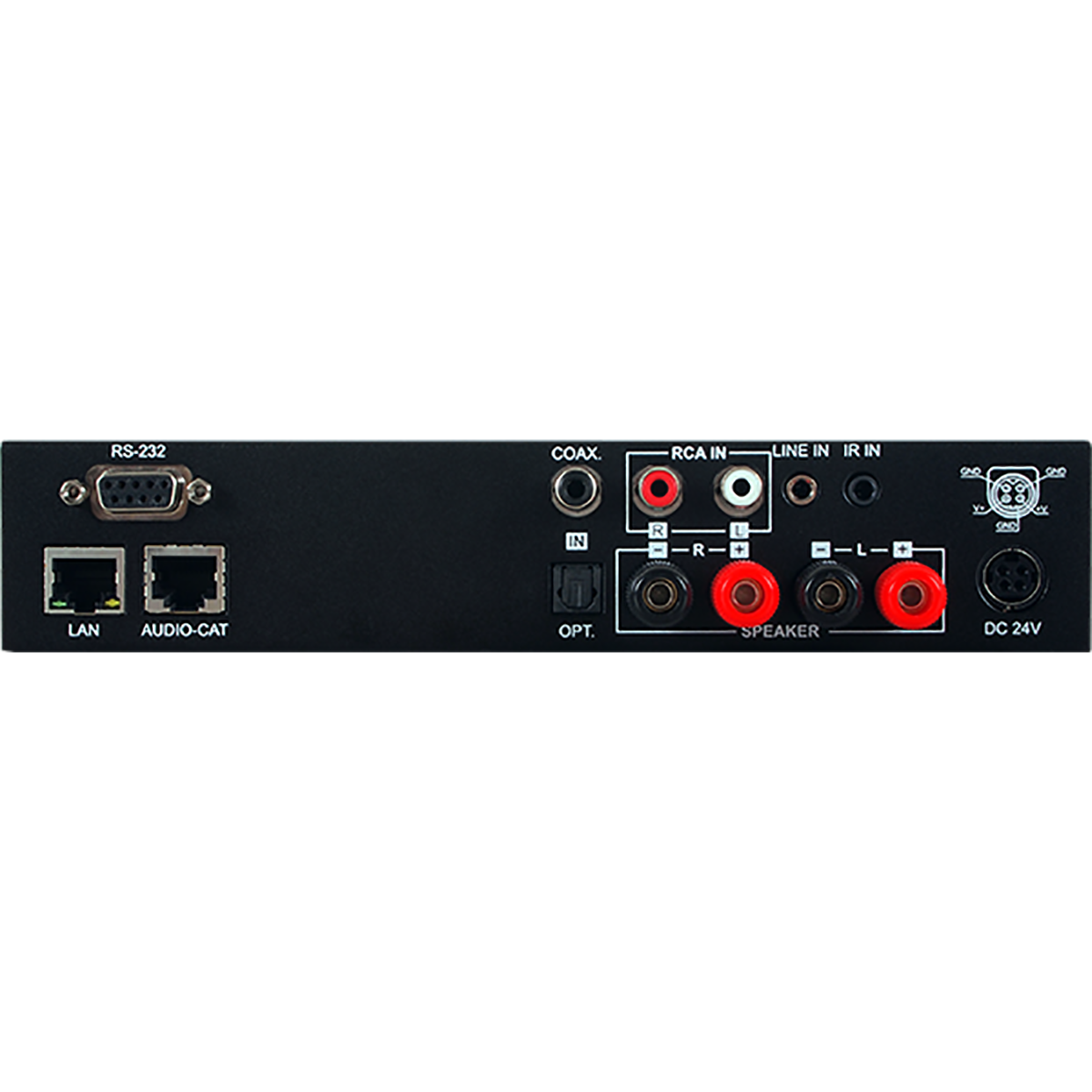

The 2-Channel Zone Amplifier accepts analog and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital. As well as speaker outputs, it boasts a CAT5e/6/7 output for wider systems integration. Suitable for use at musical events, sound presentations and sound amplification. With audio sampling rate support up to 96kHz and I/O data rate supports up to 24-bit, it provides high quality sound reproduction and sound amplification up to -80dB. The system also support control via RS-232 and IP control (Telnet/WebGUI).
Features
- Supports Digital to Analog audio Conversion (DAC) and Analog to
- Digital audio Conversion(ADC)
- Supports input sampling rate up to 96kHz and output at 48kHz
- Supports 2 Passive speaker with 4Ω ~ 8Ω each
- Speaker each output channel supports 45W/4Ω
- Hi-Efficient 2 x 45W class D amplify > 80% efficient
- Synchronous output sound on both digital and analog
- Supports distances up to 300 meters through CAT5e/6/7 cables
- Supports RS-232, IR remote and on-panel controls
- Sound supports up to -80dB with volume up moderation at power ON
Brand:
Cypress Technology
Product Type:
Zone Amplifier
Specifications
Maximum Operating Temperature:
+40°C
Number of Channels:
Special Features:
Supports Digital to Analog Audio Conversion (DAC) and Analog to Digital Audio Conversion(ADC), Supports Input Sampling Rate Up to 96kHz and Output At 48kHz
Power Rating:
52W
Applications:
Public Speech Show even Audio Set Up, Home Theatre/Entertainment
Indicator Type:
LED
Material:
Aluminium
Humidity:
20 to 90%
Minimum Operating Temperature:
-0°C
Includes:
Remote Control
Performance
Amplifier Class:
Class D
Frequency Rating:
<±1dB
Input Impedance Rating:
4 to 8Ω
Inputs and Ports
Number of Ports:
9 (Input), 1 (Output)
Power
Current Rating:
2.7A
Dimensions
Width:
2.15cm
Depth:
17.4cm
Height:
4.7cm
Weight:
1060g
Other
Standards Met:
CE, FCC Compliant, UL Certified
