CP700 Dual-Channel, 700-Watt Commercial Power Amplifier
Please sign in so that we can notify you about a reply

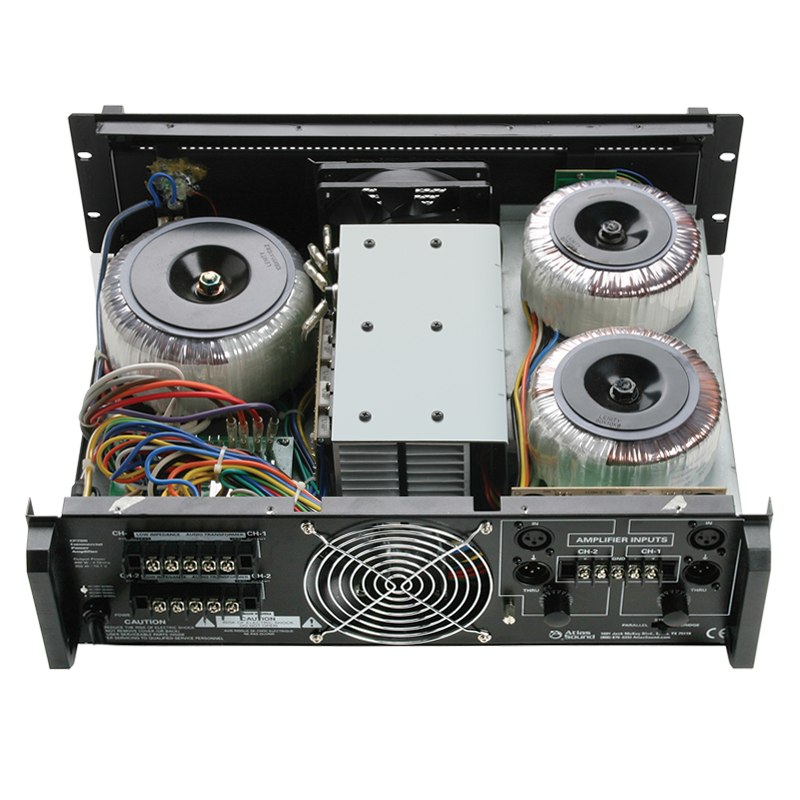

A professional grade A/B type audio power amplifier specifically designed for demanding contractor applications, the CP700 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz output through transformer) Now you can have the peace of mind that systems specified with the CP700 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.
CP700's two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.
Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED CP700 is the perfect answer for high power/low cost amplification needs.
Features
- 25V, 70.7V, 100V, and Direct Coupled (2,4, and 8 Ohm) Outputs Mounted on Barrier Strips with Covers for Safety
- Balanced Inputs on Barrier Strip and XLR Connectors
- Dual-Speed, High Efficiency Fan Cooling
- Loop Through Feature on Male XLRs, One per Channel Input
- Power-Up Muting
- Stepped Attenuators Mounted on the Rear for Security
- Toroidal Output Transformers Provide Full Electrical Isolation and Meet Worldwide Safety Agency Approval
- UL Listed - UL60065
Brand:
Atlas IED
Product Type:
Commercial Amplifier
Specifications
Number of Channels:
Special Features:
Soft Clip Limiter Protection, Dual-Speed, High Efficiency Fan Cooling
Power Rating:
700W
Applications:
BGM System, Foreground Music System, Distributed Sound Masking, Night Club, Theatre, Portable Sound System
Indicator Type:
LED
Performance
Amplifier Class:
Class AB
Signal-to-Noise Ratio:
>55dB (Balanced Input, Unbalanced RCA Summed)
Frequency Rating:
30Hz to 50kHz
Input Sensitivity:
1.25V@8Ω (Rated Output)
Dimensions
Width:
48cm
Depth:
42cm
Height:
13cm
Shipping Weight:
24.4kg
Other
Standards Met:
UL Listed ETL to 813
