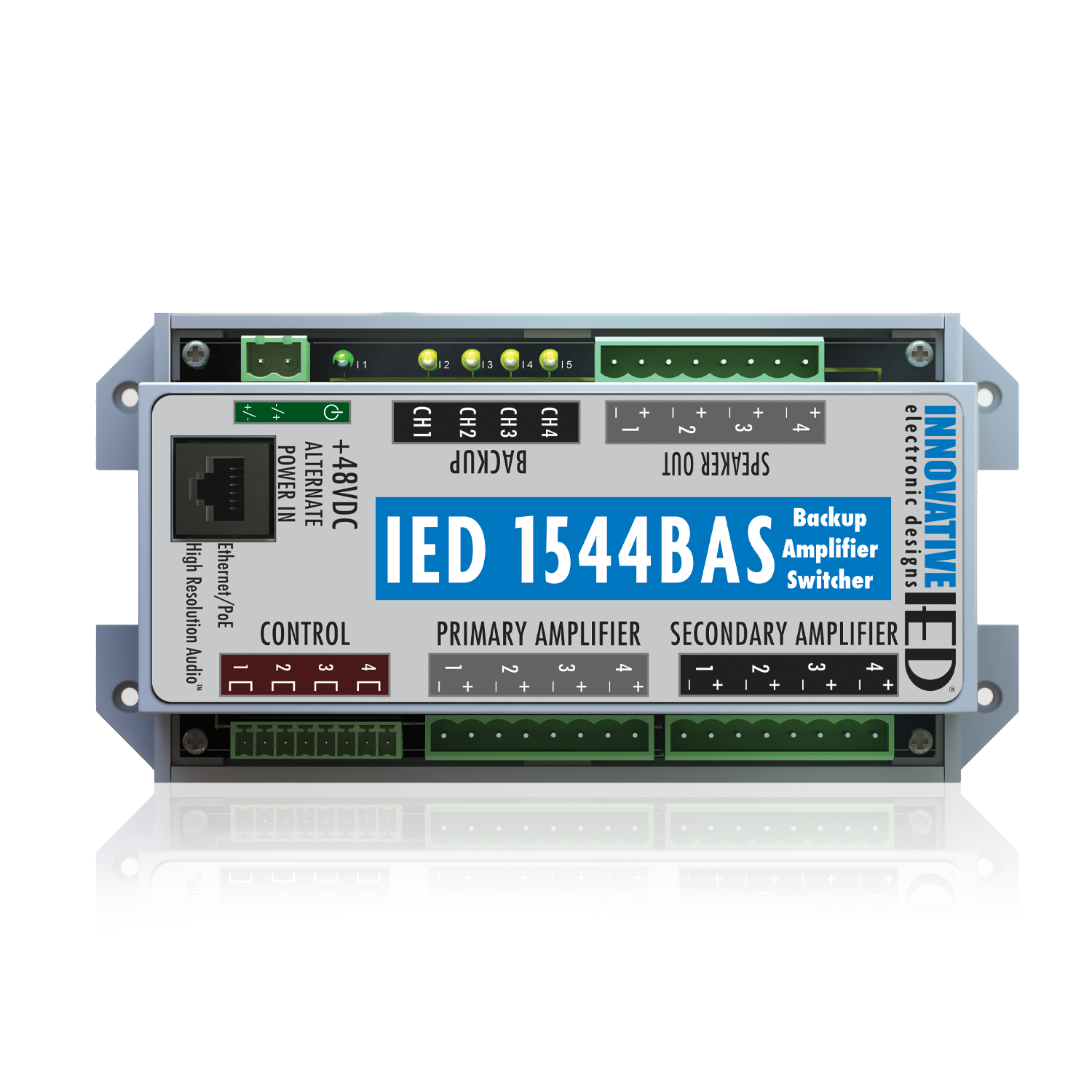

IED1544BAS 4-Channel Backup Amplifier Switch, 5400 Series, For Globalcom® Enterprise Communication Ecosystem
Please sign in so that we can notify you about a reply
The 1544BAS is a backup amplifier switching module capable of switching up to four (4) speaker loads from a primary power amplifier to a backup when a failure is detected. In stand-alone mode, logic outputs from the primary amplifier are used to trigger the switching of each individual channel to the backup amplifier. In network control mode, switching is determined by the IED GLOBALCOM® system supervision sub-system. In network control mode, multiple 1544BAS units can be used to switch multiple primary amplifiers to a single backup amplifier unit. When used in this manner, all switching logic is accomplished through network commands and the logic inputs are not used. The 1544BAS is powered using standard PoE and draws a maximum power of 3 watts. If PoE equipment is not used or the unit is used in stand-alone mode, an input is provided for an external +48VDC power supply. A green power indicator LED is included to show that the unit is powered on. Each channel has a yellow LED indicator that illuminates when the channel is switched to the backup amplifier input. When not in network control mode, each channel can be switched to the backup using a contact closure on the corresponding logic input. The 1544BAS is provided in an enclosure that either mounts to a DIN rail or is screwed down on a panel or wall to allow for convenient installation close to the amplifiers in the equipment rack.
Features- 4 channels of backup amplifier switching
- Multiple units gang to a single backup amplifier when used with the GLOBALCOM® system
- Control and configure using a web browser and GLOBALCOM® system management center and 5400 Designer control software
- Fully integrated with the IED GLOBALCOM® vACS and 5400 Designer
Brand:
Atlas IED
Product Type:
4-Channel Amplifier
Specifications
Size:
45.4cm
Series:
5400
For Use With:
Globalcom® Enterprise Communication Ecosystem
Dimensions
Weight:
272g
Other
Standards Met:
IEEE 802.3.af
