WTSD-MIX41K Indoor/Outdoor Analog Wall 4x1 Mic/Line Mixer W/Optional Dante® Audio Network Interface
Please sign in so that we can notify you about a reply

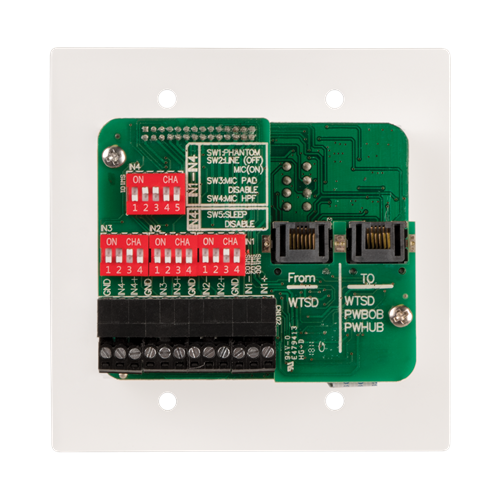

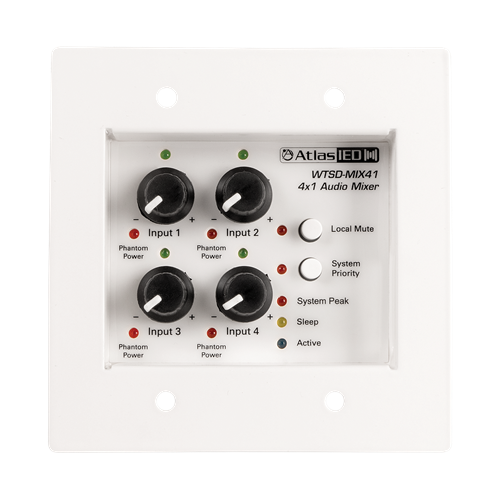

Model WTSD-MIX41K is a 4x1 Mic/line Analog Mixer that features four balanced microphone/line inputs and a balanced line output. Selection between mic or line level is done via dip switch on the rear panel. The high gain mic inputs incorporate user enabled phantom power for condenser microphones and a 120Hz low cut filter to eliminate unwanted low frequency interferences. A global mute function can be triggered via local switch. Separate level controls for each input provide control for the audio mix needed. Input peak and signal indicators give visual reference to set the gain structure for maximum performance.The WTSD-PWBOB comes with each unit and features a balanced audio output with signal, mute, system priority and power LEDs and 12V DC logic output for remote system muting or power sequencing. Mic/line inputs are via a Phoenix type connector on the rear of the WTSD.The WTSD-MIX41K can be converted into Dante® Digital Network audio when interfaced with the optional AtlasIED TSD-DAC2i converter. The WTSD-MIX41K is designed to be used in conjunction with the AtlasIED WTSD-XLR4 input plate or with other XLR wall plates.The WTSD-XLR4 also can be used with the WTSD-COVER accessory for outdoor environments that require security.
Features
- Indoor/Outdoor Use
- Power Supply & WTSD-PWBOB interface included
- XLR Balanced Mic or Line Input with Individual Level Controls
- Fits Most 2-Gang Boxes
- Uses Industry Standard Cat5 or Cat6 Cable

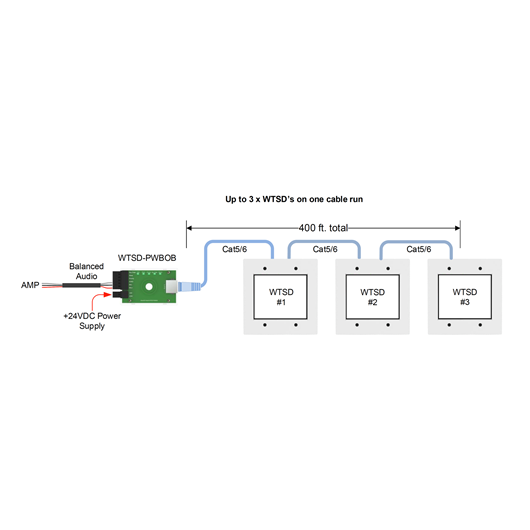

- High Gain Balanced Line Output for Applications of 400ft
- 120Hz/12dB Low Cut Filter for Mic/Line
- Linkable with other WTSD Mixers on the same BUSS
- Local Mute Switch
- Remote Trigger Output for Remote Amplifier Turn On
- System Priority Mute Function
- Energy Saving Auto Sleep Mode
- WTSD-COVER Water Resistant Stainless Steel Locking Cover (Optional)
- TSD-DAC2i Analog to Dante® Digital Audio Transmitter (Optional)
- WTSD-PWHUB Receiver with Limiter and Isolated Relays & Emergency Mute (Optional)
Brand:
Atlas IED
Product Type:
4x1 Mic/Line Mixer
Specifications
Applications:
Indoor / Outdoor Sports Complex, School- Gymnasium/Rally Area, Hotel Ballroom, Community Multi-use Facility, Industrial Facility
Performance
Maximum Frequency Rating:
20kHz
Minimum Frequency Response:
20Hz
Inputs and Ports
Connector Type:
RJ45, XLR Female Socket
Power
Current Rating:
60mA
Phantom Power (Yes/No):
Yes
Dimensions
Width:
11cm
Depth:
6.2cm
Height:
11.1cm
Weight:
0.2kg
Shipping Weight:
0.6kg
Other
Voltage Rating:
24V DC
