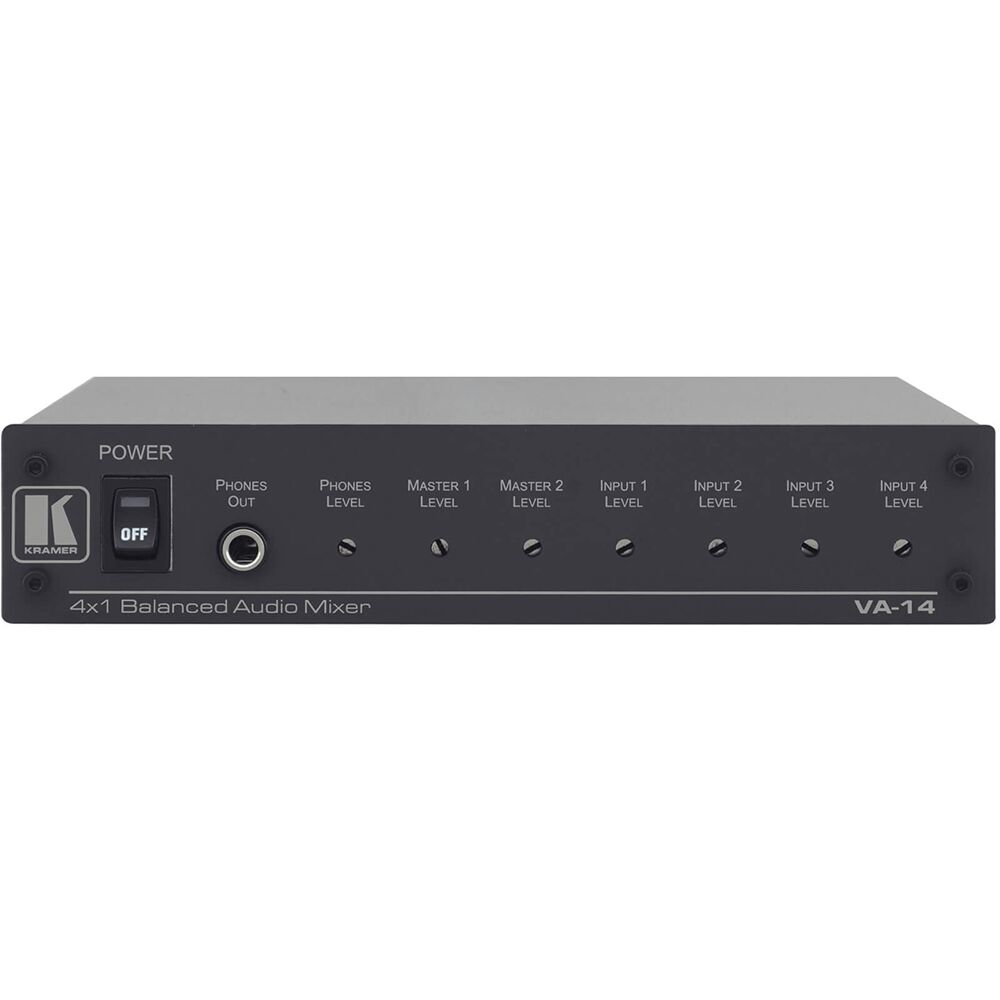

VA-14 4-Channel Balanced Audio Mixer
Please sign in so that we can notify you about a reply

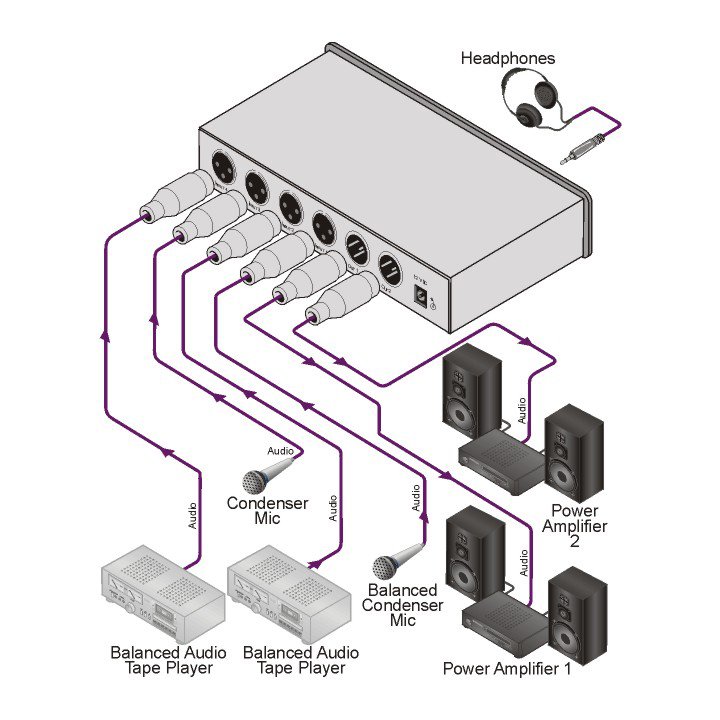

The VA-14 is a high-performance 4-channel mixer for balanced mono audio signals on XLR connectors. The unit inputs four channels of any combination of balanced mic or line level audio signals and outputs two mixed balanced audio and one headphone signal.
Features
- S/N Ratio — Mic in, phones out: 45.3dB;line in, phones out: 83.3dB;line in, line out: 84.3dB;mic in, line out: 64dB.
- Level (Gain) Control — Individual for each input & master and headphone output.
- Phantom Power — 48V dc on each input (individually selectable).
- Desktop Size — Compact size. 2 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
21-7651090
Specifications
Product Type:
Balanced Audio Mixer
Mono Line Input:
4
Rack Mountable (Yes/No):
Yes
Special Features:
S/N Ratio, Level (Gain) Control, Inputs, Outputs, Phantom Power, Rack kit-Rk-1
Applications:
Live Stage and Studio Audio Mixing Presentation Systems and Press Conferences Post Production in Video Audio Studio
Includes:
Balanced Audio Mixer, 4xRubber feet, Power Supply (12V DC), Quick Start guide
Performance
Signal-to-Noise Ratio:
Micin Phones Out:45.3dB Linein Phones Out:83.3dB Linein Line Out:84.3dB Micin Line Out:64dB
Inputs and Ports
Number of Microphone Input:
1
Number of Ports:
4
Power
Maximum Operating Voltage:
12V DC
Current Rating:
250mA
Phantom Power (Yes/No):
Yes
Dimensions
Width:
21.46cm
Depth:
16.3cm
Height:
4.3cm
Weight:
0.7kg
Other
Voltage Rating:
12V DC
