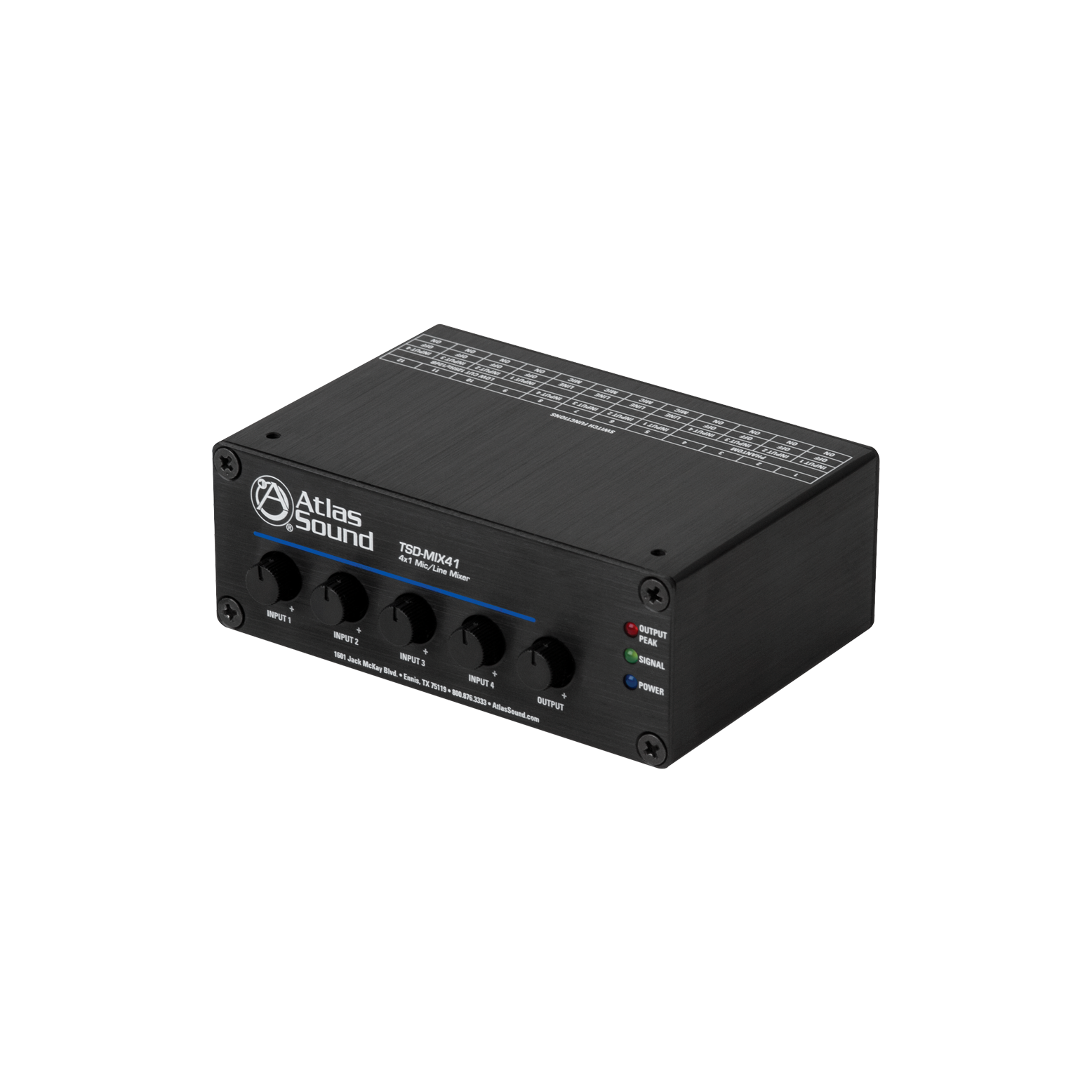

TSD-MIX41 4 x 1 Mic/Line Mixer
Please sign in so that we can notify you about a reply
The TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 is especially useful for combining similar sources such as choir microphones to a single mixer channel.The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with AtlasIED amplifiers.Other applications include restaurants, conference rooms, and schools.Each input is mic/line switchable with phantom power provided for condenser microphones.The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration.A 12dB/octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback.Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.This unit has a power requirement of 60mA so any of the available TSD power supplies can be used with the unit.For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Features- Four (4) Balanced Mic/Line Inputs
- Four (4) Professional Grade Microphone Preamps with Switchable 24V Phantom Power
- Up to 50dB Mic Gain Per Input
- 12dB/Octave Low Cut Filter @ 125Hz
- Balanced Line Output
- Input Peak & Signal Indicator LED's
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections
- Removable Phoenix Style I/O Connectors
- Security Covers Included for All Front Panel Controls
- Power Supply Sold Separately
- Energy Efficient
Brand:
Atlas IED
Product Type:
4x1 Mic/Line Mixer
Specifications
Applications:
Church, Restaurant, Sports Bar, School, Industrial Facility, House of Worship
Performance
Maximum Frequency Rating:
20kHz
Signal-to-Noise Ratio:
85dBV (Line to Line), 78dBV (Mic to Line)
Minimum Frequency Response:
20Hz
Frequency Rating:
20Hz to 20KHz
Inputs and Ports
Connector Type:
Phoenix
Number of Ports:
4 (Balanced Mic/Line Input), 4 (Professional Grade Microphone)
Power
Current Rating:
60mA
Phantom Power (Yes/No):
Yes
Dimensions
Width:
10.1cm
Depth:
6.3cm
Height:
3.8cm
Weight:
0.1kg
Other
Voltage Rating:
24V DC
