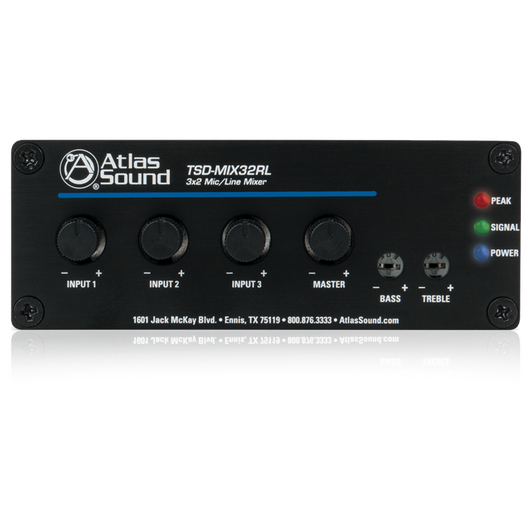

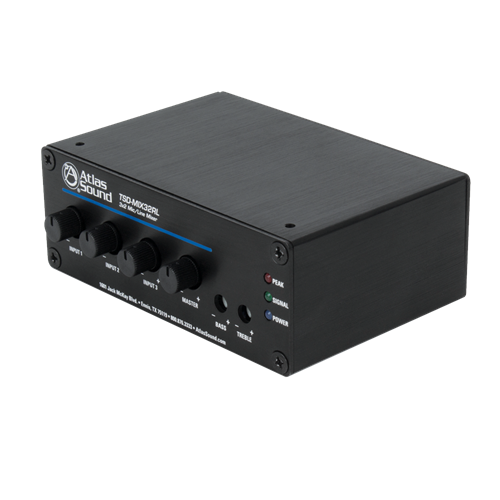

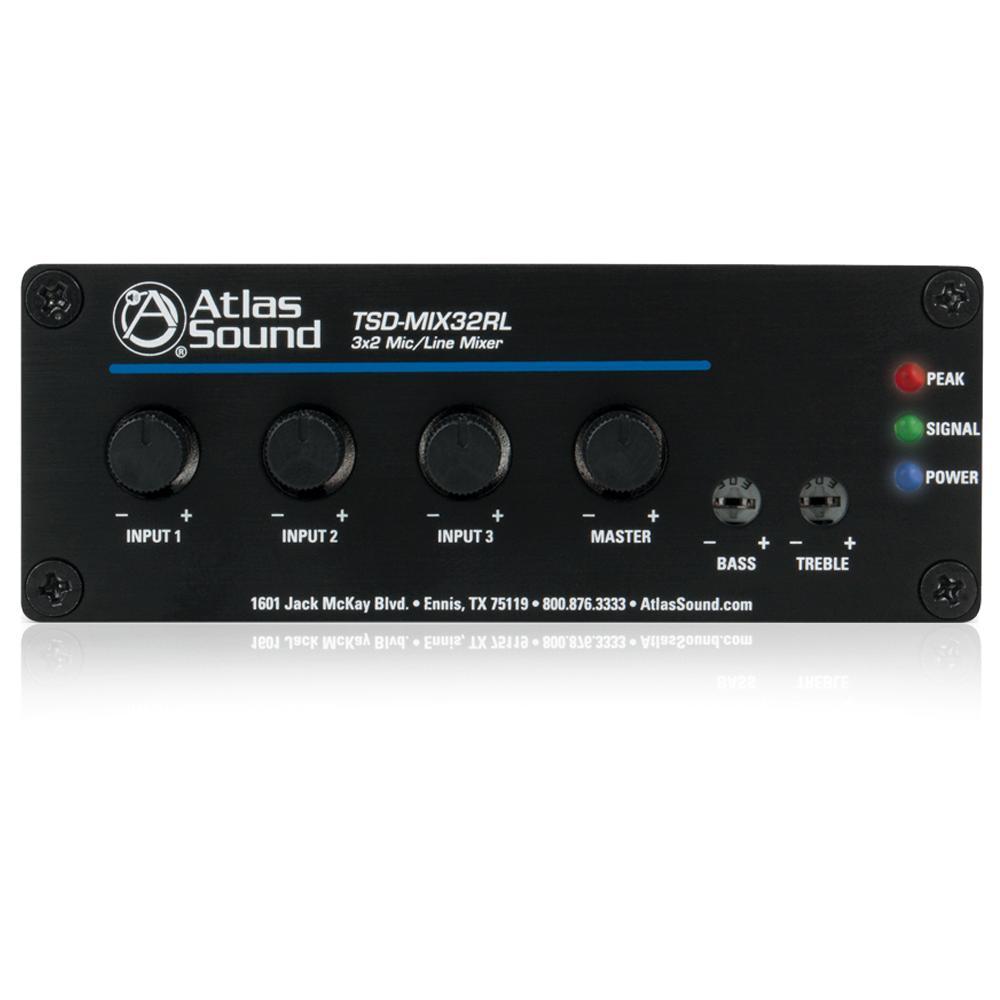

TSD-MIX32RL 3x2 Stereo Line Mixer with Remote Level
Please sign in so that we can notify you about a reply
The AtlasIED TSD-MIX32RL is a 3x2 stereo line mixer with Remote level control.It is ideal for applications where multiple stereo line sources need to be combined into a preamp utilizing the local or remote Master level control.The unit can be easily interfaced with AtlasIED amplifiers. Applications include restaurants, conference rooms, and schools.Additional on board EQ can be done utilizing the Base control (100Hz ±6db) and Treble control (10kHz ±6dB). The TSD-MIX32RL uses high quality, low noise components to ensure clarity and quiet operation without unwanted coloration.The TSD-MIX32RL is highly efficient and meets most energy standards as one 24VDC power supply (available separately) can power multiple Atlas Time Saving Devices. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 60mA so any of the available power supplies can be used with this unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Features- Three Stereo Unbalanced Line Inputs, One Set of RCA and Two 3.5mm
- Balanced Line Outputs Left & Right
- Unbalanced Line Outputs Left & Right
- Base & Treble Controls ±6dB
- Remote Master Level Control
- High Gain Output for Driving Long Balanced Lines
- Input Signal Indicator LEDs, Qty 3
- Output Peak & Signal Indicator LEDs
- Separate Ground Connections
Brand:
Atlas IED
Product Type:
3x2 Stereo Line Mixer
Specifications
Applications:
Church, Restaurant, Sports Bar, School, Industrial Facility, House of Worship
Performance
Maximum Frequency Rating:
20kHz
Signal-to-Noise Ratio:
85dBV (Line to Line)
Minimum Frequency Response:
20Hz
Frequency Rating:
20Hz to 20KHz
Inputs and Ports
Connector Type:
Phoenix
Number of Ports:
3 (Stereo Unbalanced Line Input), 2 (RCA 2x3.5mm Balanced Line Output Left & Right, Unbalanced Line Output Left & Right)
Power
Current Rating:
60mA
Dimensions
Width:
10.1cm
Depth:
7cm
Height:
3.9cm
Weight:
0.1kg
Other
Voltage Rating:
24V DC
