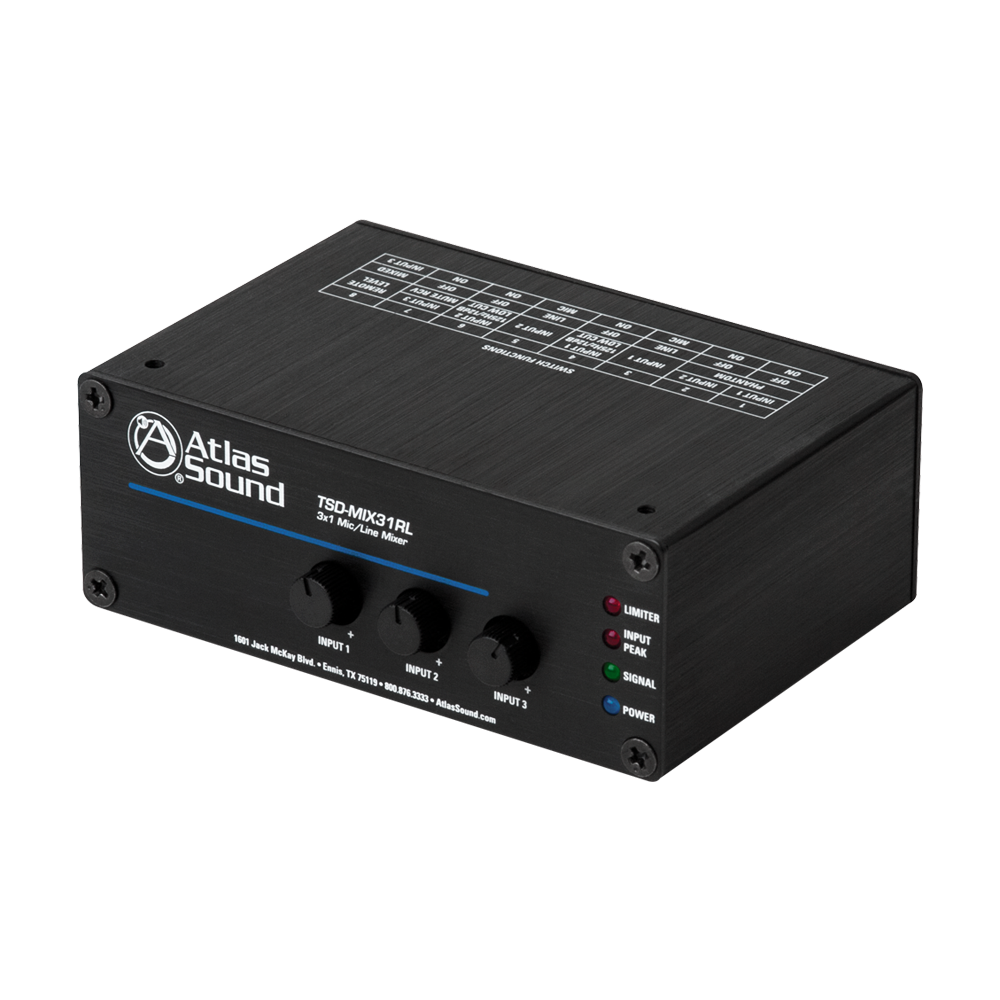

TSD-MIX31RL 3 x 1 Mic/Line Mixer
Please sign in so that we can notify you about a reply
The TSD-MIX31RL 3x1 mic/line mixer includes two mic/balanced line inputs via removable Phoenix style connectors and a stereo summing dual RCA input. Switchable phantom power is provided for both mic inputs to facilitate condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB / octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback.Priority paging can be accomplished via contact closure or VOX trigger on Input 1 (mutes input 3 only). Remote level control feature allows use of the AAVC-10K (or equivalent) decorative wall plate control for convenient remote adjustment of either the entire mix bus or input 3 only (typical BGM input). A variable output limiter provides system protection by reducing clipping and distortion - which is especially useful when mixing multiple mics and/or line sources with varying volumes.Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.This unit has a power requirement of 60mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Features- Two (2) Balanced Mic/Line Inputs
- High Gain (50dB) Microphone Preamps
- Switchable 24V Phantom Power
- One (1) Unbalanced Summing Dual RCA Line Input
- Vox Sense and Contact Closure Priority Mute of Ch3
- Variable Output Limiter
- Remote Level Control
- 12dB/Octave Low Cut Filter @ 125Hz

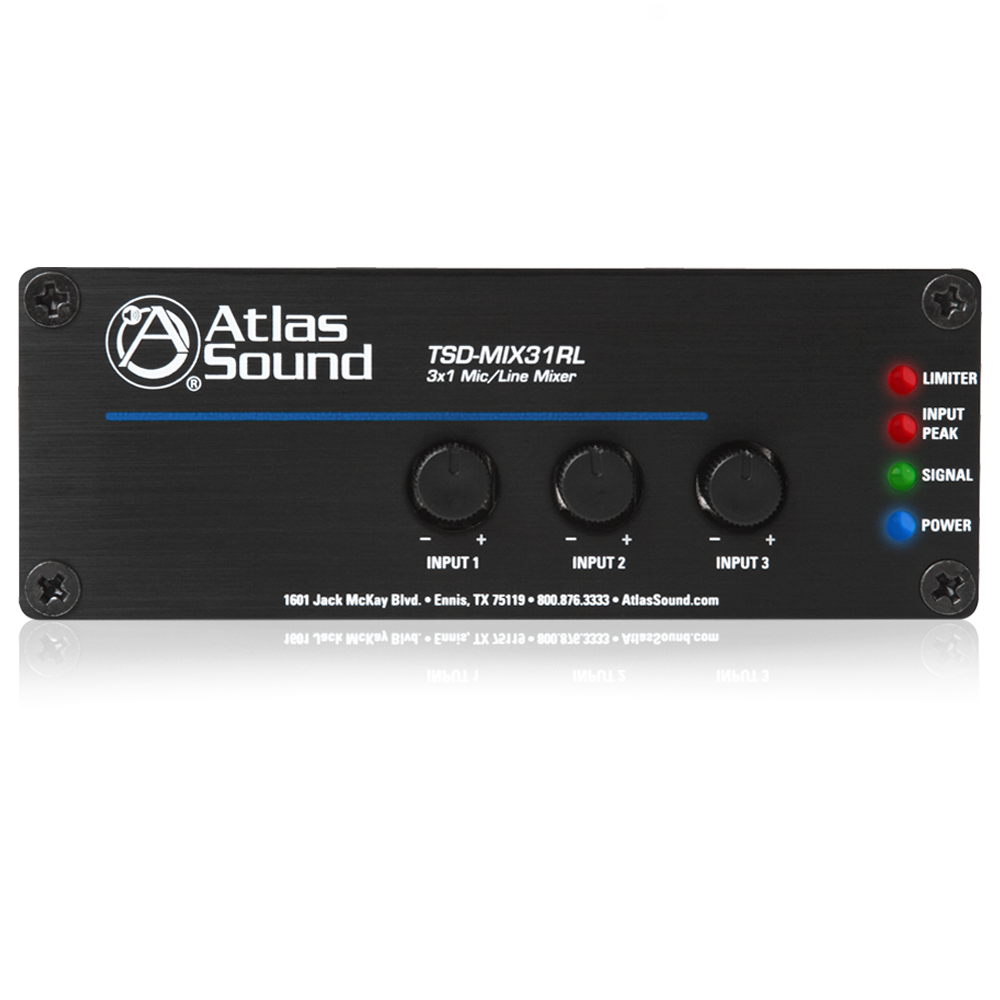

- Input Signal & Peak Indicator LED's
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections
- Power Supply Sold Separately

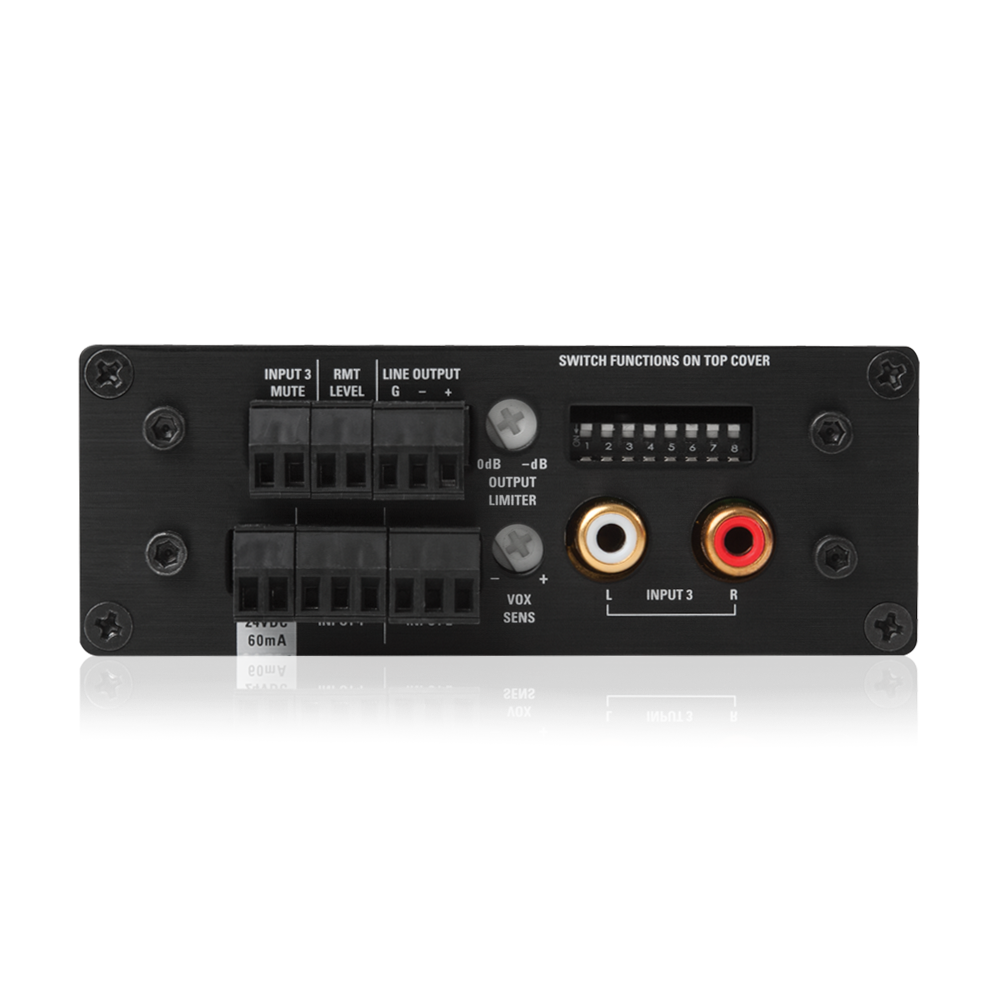

- Removable Phoenix Style I/O Connectors
- Security Covers Included for All Front Panel Controls
- Energy Efficient
Brand:
Atlas IED
Product Type:
3x1 Mic/Line Mixer
Specifications
Applications:
Church, Restaurant, Sports Bar, School, Industrial Facility, House of Worship
Performance
Maximum Frequency Rating:
20kHz
Signal-to-Noise Ratio:
85dBV (Line to Line), 70dBV (Mic to Line)
Minimum Frequency Response:
20Hz
Frequency Rating:
20Hz to 20KHz
Inputs and Ports
Connector Type:
Phoenix
Number of Ports:
2 (Balanced Mic/Line Input), 1 (Unbalanced Summing Dual RCA Input)
Power
Current Rating:
60mA
Phantom Power (Yes/No):
Yes
Dimensions
Width:
10.1cm
Depth:
6.3cm
Height:
3.8cm
Weight:
0.1kg
Other
Voltage Rating:
24V DC
